5C-6 Clutch:

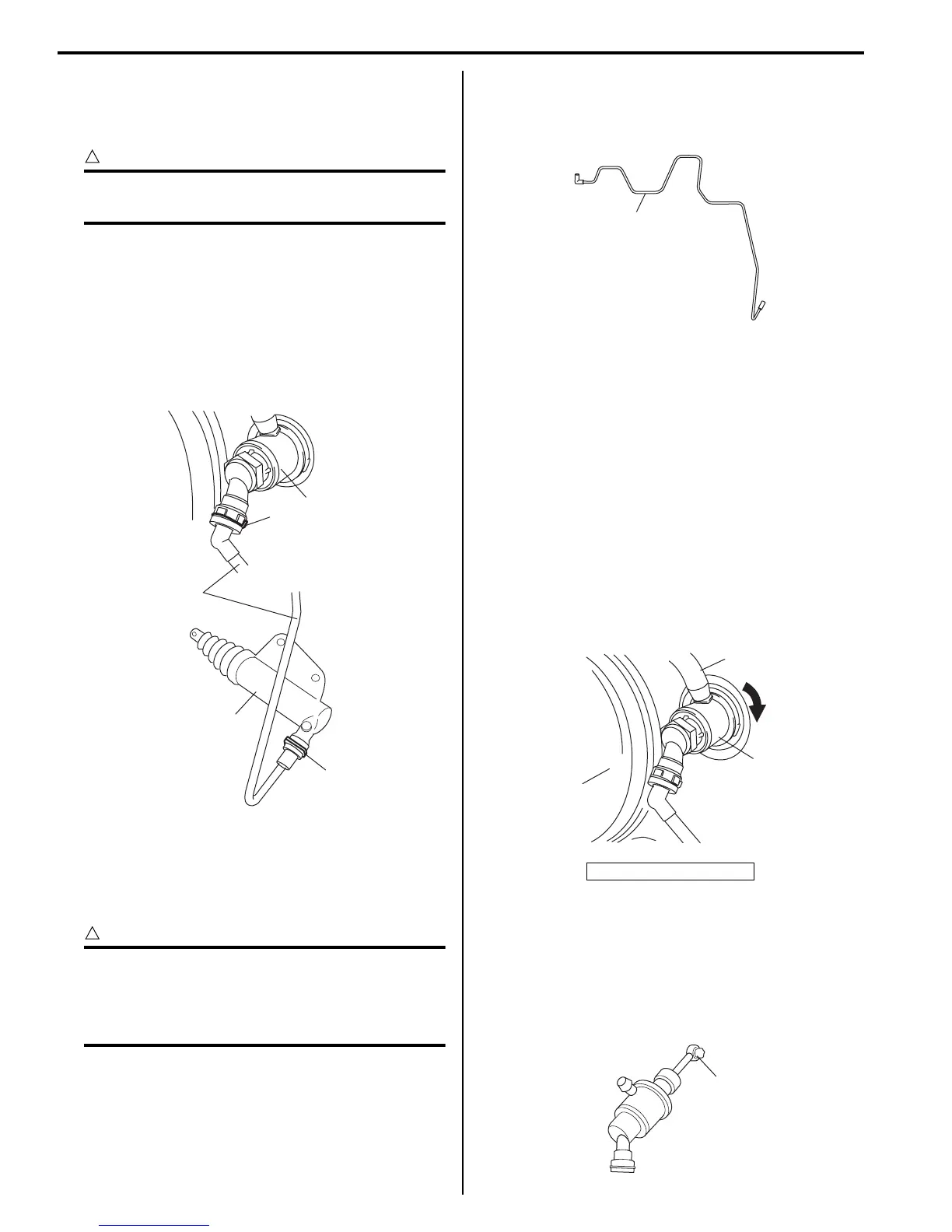

Clutch Fluid Pipe Removal and Installation
S7RS0B5306007
Removal
CAUTION
!
Do not allow fluid to get on painted surface. It
may cause painted surface damage.
1) Remove dust and dirt from each joint of pipe to be
disconnected and clean around brake master
cylinder reservoir cap.
2) Take out fluid with syringe or such from brake master
cylinder reservoir.
3) Pull clamp (1) of clutch master cylinder (3) and push
clamp (5) of clutch operating cylinder (4) and then
disconnect clutch fluid pipe (2).
Installation
Reverse removal procedure for installation noting the
following.
CAUTION
!
• Do not allow fluid to get on painted
surface.
• Do not allow pipe to contact hard against
vehicle body or other parts.
• Install each clamp securely.
• After installation, check clutch pedal free travel and
bleed air from system referring to “Clutch Pedal
Inspection” and “Air Bleeding of Clutch System”.
• Check fluid leakage.
• Add fluid to MAX level of reservoir.
Clutch Fluid Pipe Inspection
S7RS0B5306008
Check pipe (1) for dent, kink, crack, dirt and dust.
Replace if check result is not satisfactory.
Clutch Master Cylinder Removal and
Installation
S7RS0B5306009
Removal
1) Clean around brake master cylinder reservoir cap
and take out fluid with syringe or such from brake
master cylinder reservoir.
2) Disconnect clutch fluid pipe from clutch master
cylinder (1) referring to “Clutch Fluid Pipe Removal
and Installation”.
3) Disconnect clutch reservoir hose (2).
4) Remove push rod from clutch pedal.
5) Turn clutch master cylinder (1) clockwise as shown
in figure, and then remove it.
Installation
Reverse removal procedure for installation noting the
following.
• Apply grease to push rod tip.
“A”: Grease 99000–25100 (SUZUKI Silicone
Grease)
3
1
2
5
4
I4RS0B530003-01
3. Brake booster
1
I6RS0C530004-01
1
2
3
I4RS0B530005-01
“A”
I4RS0B530006-01
