10B-7 Body Electrical Control System:
Connector Layout Diagram of BCM and Junction Block Assembly
S7RS0BA202002

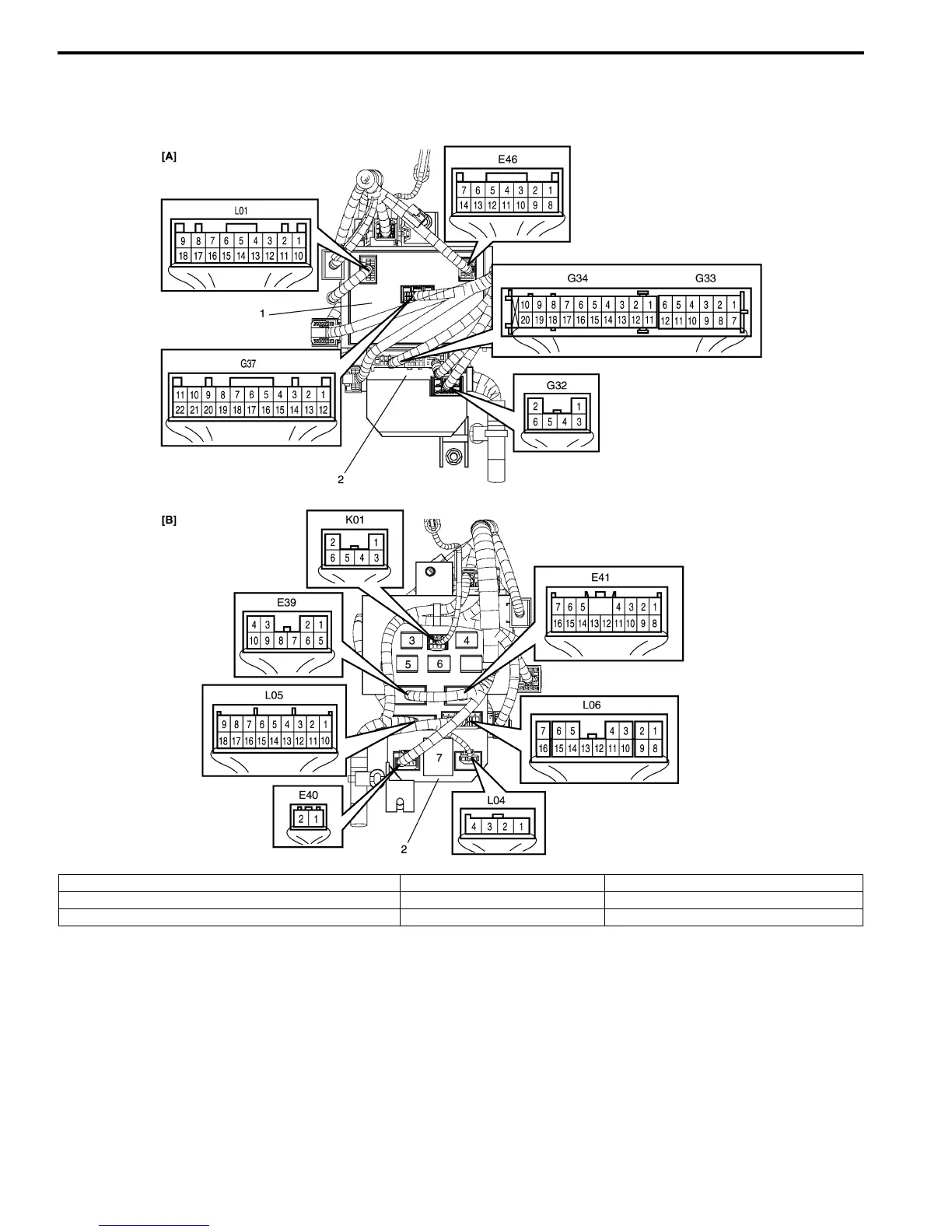

BCM and junction block assembly connectors (viewed from harness side)
I4RS0AA20004-01
[A]: Junction block assembly (viewed from BCM side) 2. Junction block assembly 5. Rear wiper relay
[B]: Junction block assembly (viewed from relay side) 3. Heater relay 6. Rear end door window defogger relay
1. BCM 4. Horn relay 7. Turn signal and hazard warning relay
