8B-12 Air Bag System:
DTC Check
S7RS0B8204004
1) Turn ignition switch to OFF position.

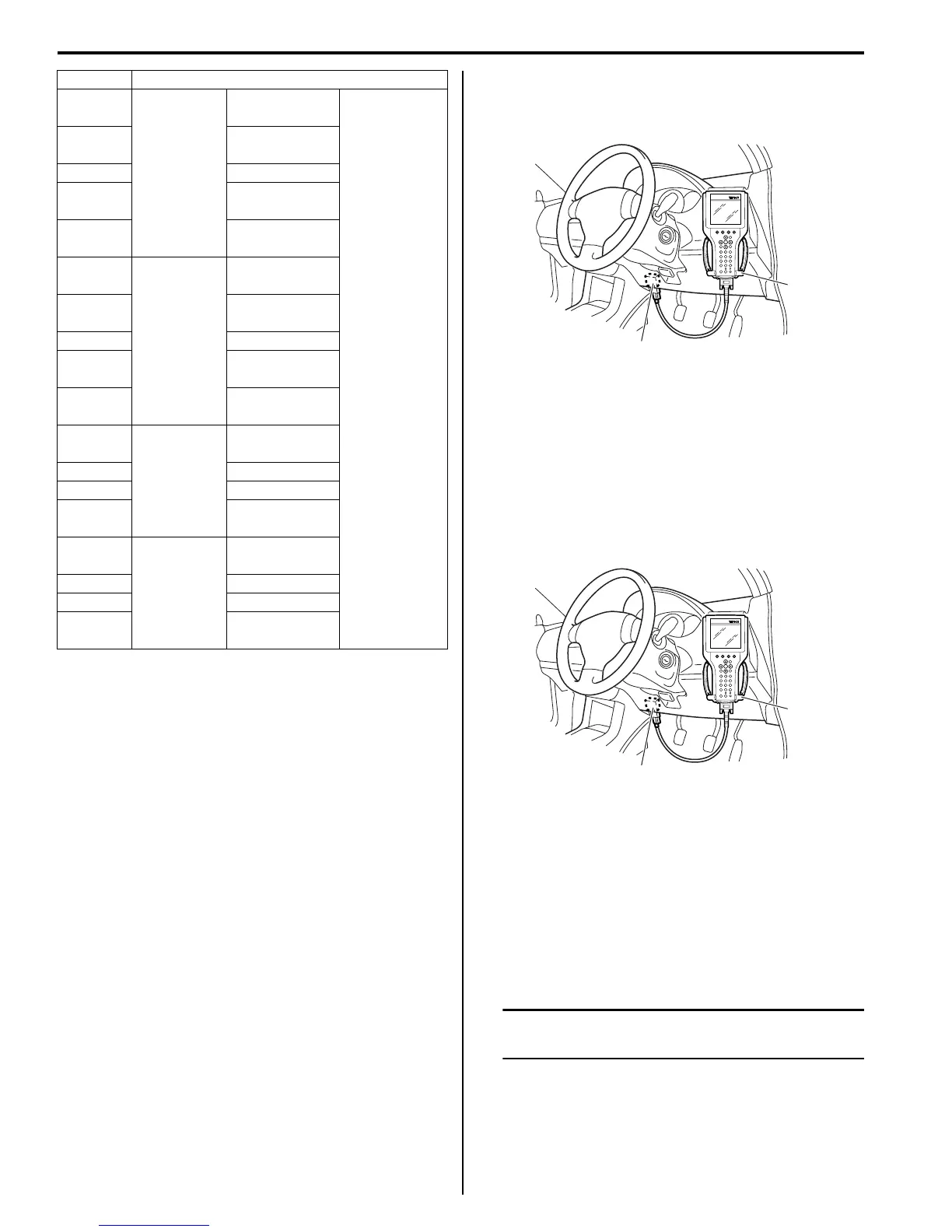

2) Connect SUZUKI scan tool to data link connector
(DLC) located on underside of instrument panel at
driver’s seat side.
Special tool
(A): SUZUKI scan tool
3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on
SUZUKI scan tool and print it or write it down. Refer
to SUZUKI scan tool operator’s manual for further
details.
If communication between scan tool and SDM is not
possible, check if scan tool is communicable by
connecting it to SDM in another vehicle. If
communication is possible in this case, scan tool is
in good condition. Then check data link connector
and serial data line (circuit) in the vehicle with which
communication was not possible.
5) After completing the check, turn ignition switch to
OFF position and disconnect SUZUKI scan tool from
data link connector (DLC) (1).
DTC Clearance
S7RS0B8204005
1) Turn ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector
(DLC) (1) in the same manner as when making this
connection for DTC check.
Special tool
(A): SUZUKI scan tool
3) Turn ignition switch to ON position.
4) Erase DTC according to instructions displayed on
SUZUKI scan tool. Refer to SUZUKI scan tool
operator’s manual for further details.
5) After completing the clearance, perform “DTC
Check” and confirm that normal DTC (NO CODES)
is displayed and not malfunction DTC.
6) Turn ignition switch to OFF position and disconnect
SUZUKI scan tool from DLC.
NOTE
If DTC B1013, DTC B1021 or DTC B1027 is
stored in SDM, it is not possible to clear DTC.
) B1081
Driver side-
sensor
Performance
problem
Diagnose
trouble
according to
diagnostic flow
corresponding
to each code
No.
) B1082
Communicatio
n error
) B1083 Short to ground
) B1084
Short to power
circuit or open
) B1085
Wrong
assembly
) B1091
Passenger
side-sensor
Performance
problem
) B1092
Communicatio
n error
) B1093 Short to ground
) B1094
Short to power
circuit or open
) B1095
Wrong
assembly
) B1361
Driver side
curtain-air
bag circuit
Resistance
high
) B1362 Resistance low
) B1363 Short to ground
) B1364
Short to power
circuit
) B1365
Passenger
side curtain-
air bag
circuit
Resistance
high
) B1366 Resistance low
) B1367 Short to ground
) B1368
Short to power
circuit
DTC Diagnosis
1
(A)
I4RS0A820008-01
1
(A)
I4RS0A820008-01
