9F-8 Security and Locks:
Front Door Lock Assembly Inspection
S7RS0B9606003
• Check that door open and closes smoothly and
properly.
• Check that door stops in the secondary latched
position properly (preventing door from opening
freely) and that door closed completely in the fully
latched position.
• Adjust door latch striker position, if necessary.

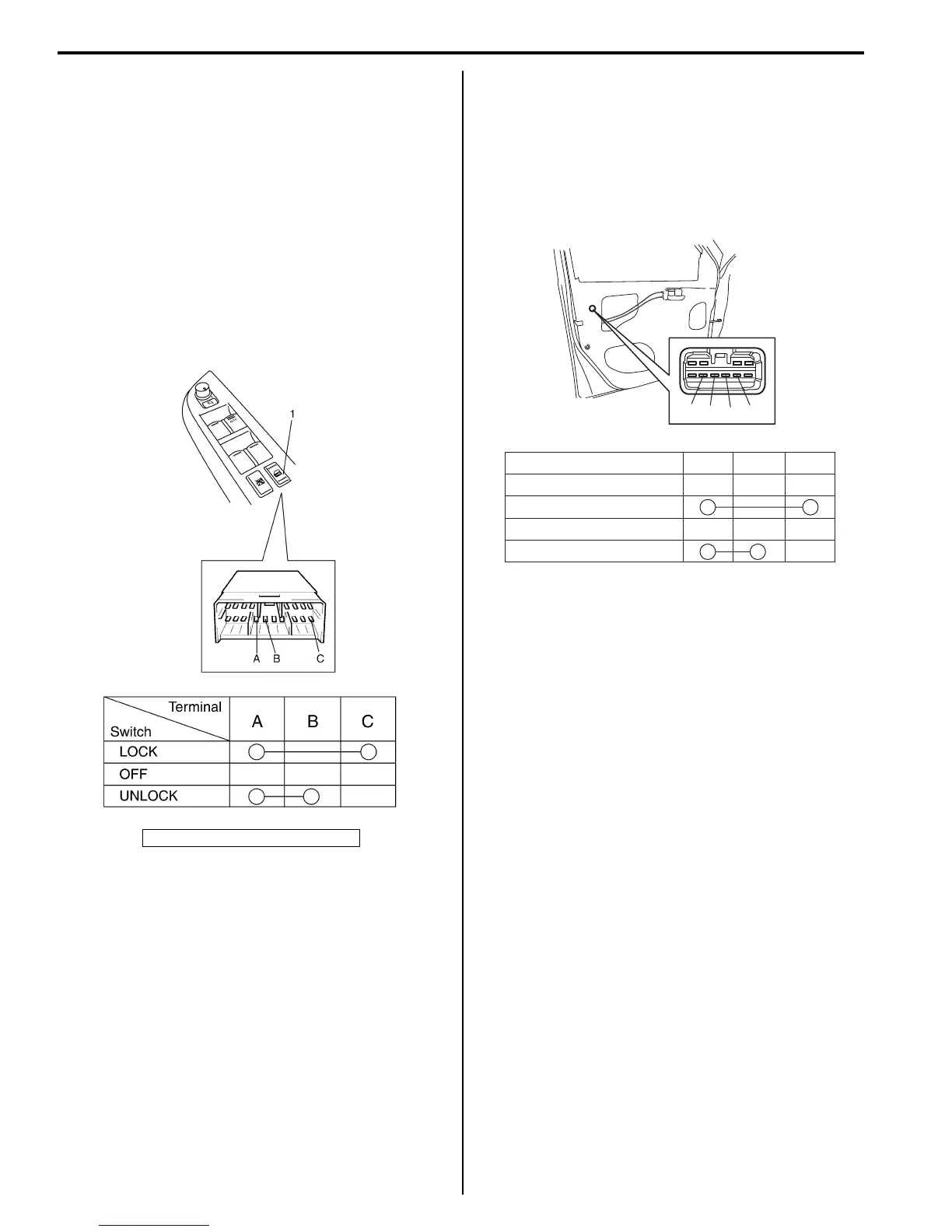

Power Door Lock Switch Inspection
S7RS0B9606004
Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Door Key Cylinder Switch Inspection
S7RS0B9606005
1) Remove front door trim referring to Step 1) to 3) of
“Front Door Glass Removal and Installation in
Section 9E”
2) Check for continuity between terminals at each
switch position. If check result is not as specified,
replace door lock assembly.
1. Power door lock switch
I4RS0A960009-01
a
b
c
LOCK
OFF
UNLOCK
bcd
cba
Right side switch terminals
Left side switch terminals
d
I4RS0B960007-01
