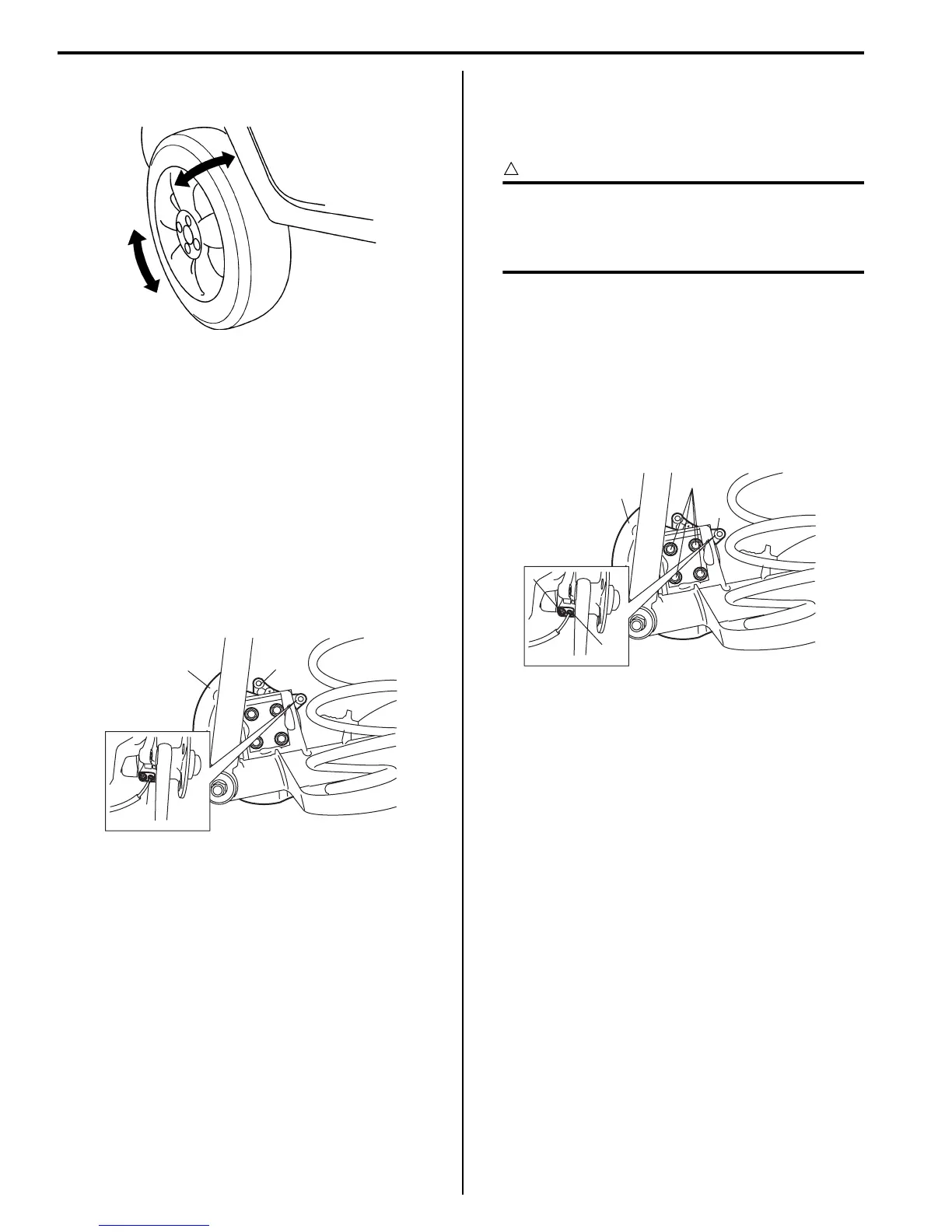

2C-12 Rear Suspension:
• Check noise and smooth rotation of wheel by rotating
wheel. If it is defective, replace bearing.
Spindle Removal and Installation
S7RS0B2306014
Removal
1) Remove rear brake caliper assembly and brake disc.
For details, refer to Step 2) to 4) of “Removal” under
“Rear Brake Disc Removal and Installation in
Section 4C”.
2) Remove rear wheel hub. For details, refer to Step 3)
to 5) of “Removal” under “Rear Wheel Hub Removal
and Installation”.
3) Disconnect wheel speed sensor (1).
4) Remove brake disc dust cover (2) and spindle (3)
from rear axle.
Installation
1) Install brake disc dust cover (1), spindle (2) and new
spindle bolts (3) and then tighten spindle bolts to
specified torque.
CAUTION
!
Never reuse the removed rear spindle bolts.
Bolts are pre-coated with friction stabilizer.
Be sure to replace pre-coated bolt with a new
one, or bolt may loosen.
Tightening torque
Rear spindle bolt (a): 88 N·m (8.8 kgf-m, 64.0 lb-
ft)
2) Connect wheel speed sensor (4) and tighten wheel
speed sensor bolt to specified torque.
Tightening torque
Wheel speed sensor bolt (b): 11 N·m (1.1 kgf-m,
8.0 lb-ft)
3) Install rear wheel hub referring to “Rear Wheel Hub
Removal and Installation”.
4) Install brake disc and rear brake caliper assembly
referring to “Rear Brake Disc Removal and
Installation in Section 4C”.
5) Install wheel and tighten wheel nuts to specified
torque.
Tightening torque
Wheel nut: 85 N·m (8.5 kgf-m, 61.5 lb-ft)
6) Adjust parking brake cable. For adjustment, see
“Parking Brake Inspection and Adjustment in Section
4D”.
7) Perform brake test (foot brake and parking brake).
8) Check each installed part for fluid leakage.
I3RM0A230050-01
2
1
3
I6RS0B230015-01
1
(b)
4
2
3, (a)
I6RS0B230016-01
