Wiring Systems: 9A-10
Connector Layout Diagram
Connector Layout Diagram
S7RS0B910A001
Refer to “Engine Compartment”.
Refer to “Instrument Panel”.
Refer to “Door, Roof”.
Refer to “Floor”.
Refer to “Rear”.
ESP
®
is a registered trademark of Daimler Chrysler AG.

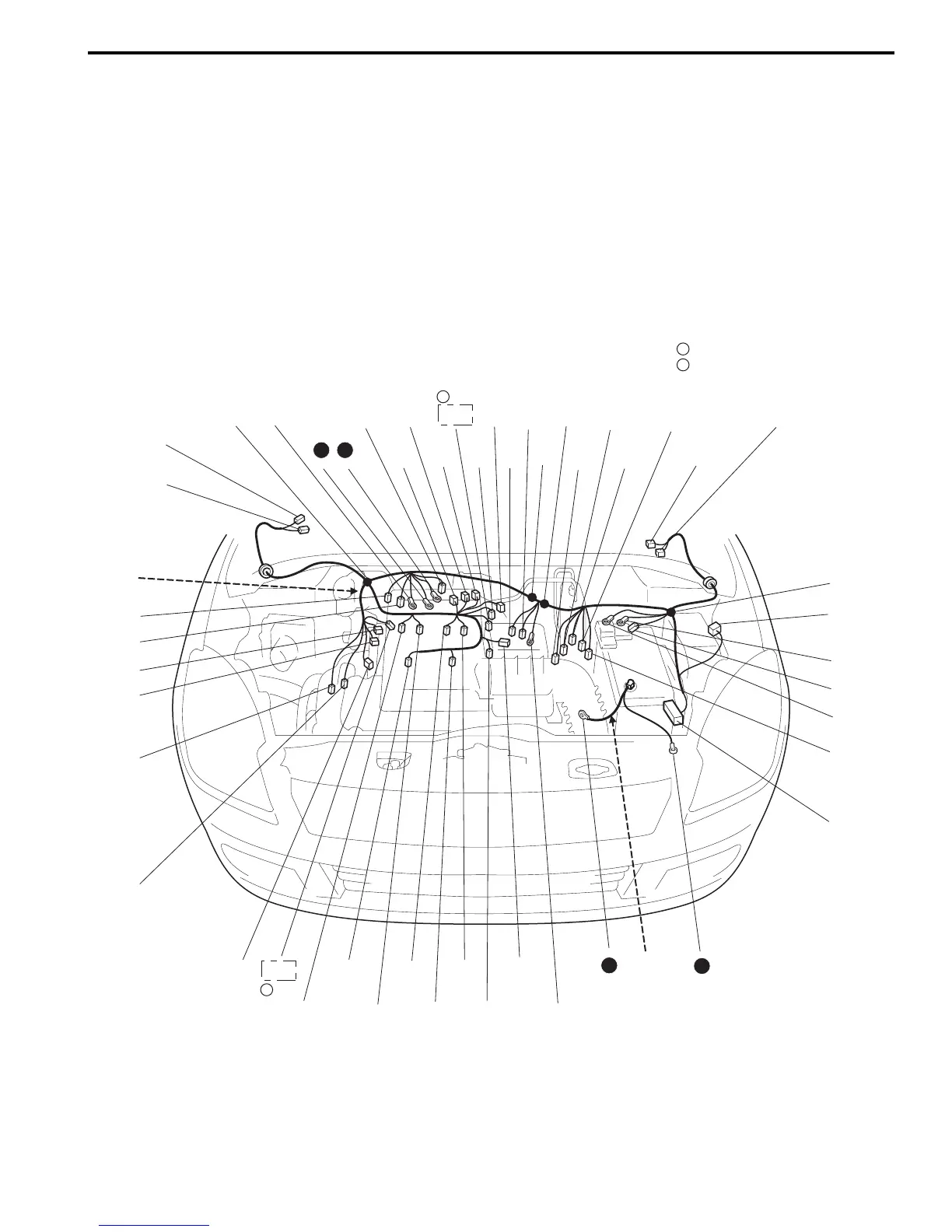

Engine Compartment
S7RS0B910A002
A: Battery cable / C: Engine harness (M13A engine, M15A engine)
A
C36
(TO E24)
C17
C18
C19
C35
(RHD A/T)
C34
(LHD A/T)
C35
(LHD A/T)
C34
(RHD A/T)
C37
C15
C16
C02C08
C03
C10
C09
1
2
3 4
C31
C32
C33
C29
(A/T)
C28
(A/T)
C27
(A/T)
C30
(M/T)
C25
(A/T)
C24
C25
(M/T)
C26
C07
C06
C05
C04
C22
C21
C20
C23
C13
C12
C14
C08
C01
C
C40
C41
C39
C38
C11
A
A
B
B
M15A engine, M13A engine RHD
M13A engine LHD
I6RS0C910901-01
To Next Page
