ABS: 4E-8

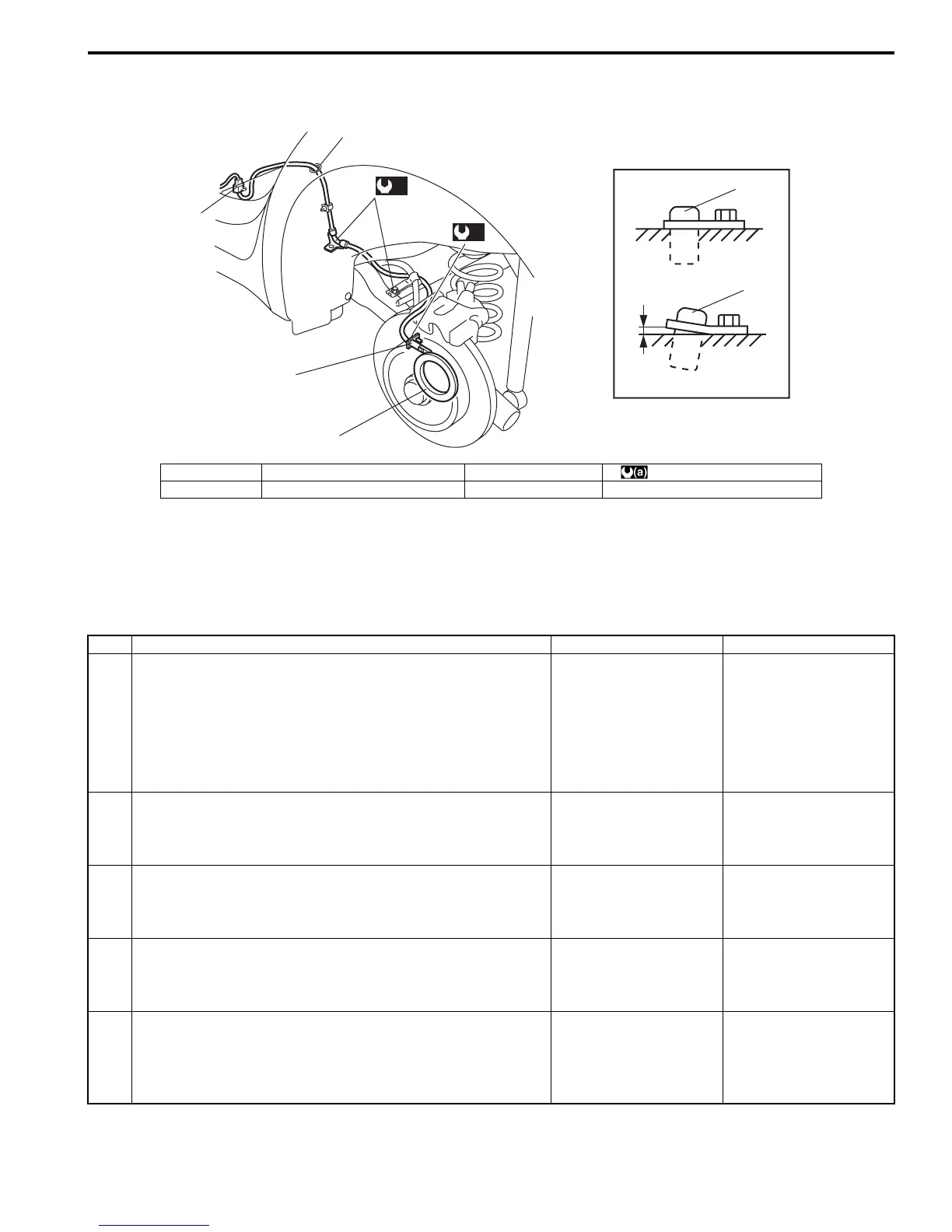

Rear Wheel Speed Sensor Components Location
S7RS0B4503003
Diagnostic Information and Procedures
ABS Check
S7RS0B4504001
Refer to the following items for the details of each step.
1
2
3
4
[A]
[B]
1
1
(a)
(a)
I6RS0C450006-01
[A]: OK 1. Rear wheel speed sensor 3. Connector : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
[B]: NG 2. Sensor ring 4. Grommet
Step Action Yes No
1 ) Malfunction analysis
1) Perform “Customer complaint analysis: ”.
2) Perform “Problem symptom confirmation: ”.
3) Perform “DTC check, record and clearance: ” and
recheck DTC.
Is there any malfunction DTC?
Go to Step 4. Go to Step 2.
2 ) Driving test
1) Perform “Step 2: Driving Test: ”.
Is trouble symptom identified?
Go to Step 3. Go to Step 6.
3 ) DTC check
1) Perform “DTC Check”.
Is it malfunction code?
Go to Step 4. Go to Step 5.
4 ) ABS check
1) Inspect and repair referring to applicable DTC flow.
Does trouble recur?
Go to Step 5. Go to Step 7.
5 ) Brakes diagnosis
1) Inspect and repair referring to “Brakes Symptom
Diagnosis in Section 4A”.
Does trouble recur?
Go to Step 3. Go to Step 7.
To Next Page
