Keyless Start System: 10E-1
Control Systems
Keyless Start System
General Description
Keyless Start System Description
S7RS0BA501001
Keyless start system consisting of the parts shown below has three functions as described below.
• Keyless engine start function:
With the remote controller which has been registered in the keyless start control module carried with oneself, the
engine can be started without using the ignition key.
• Door lock function:
Pushing the request switch incorporated in the outside handle of the driver side door, passenger side door or rear
end door while carrying the remote controller which has been registered in the keyless start control module, doors
can be locked or unlocked.
• Keyless entry system function:
It is possible to lock or unlock doors by pushing the lock or unlock button of remote controller.
The keyless start control module can accept registration of up to four remote controllers.
5
12
13
9
14
1
2
6
3
7
4
8
3
11
10
I4RS0BA50001-02

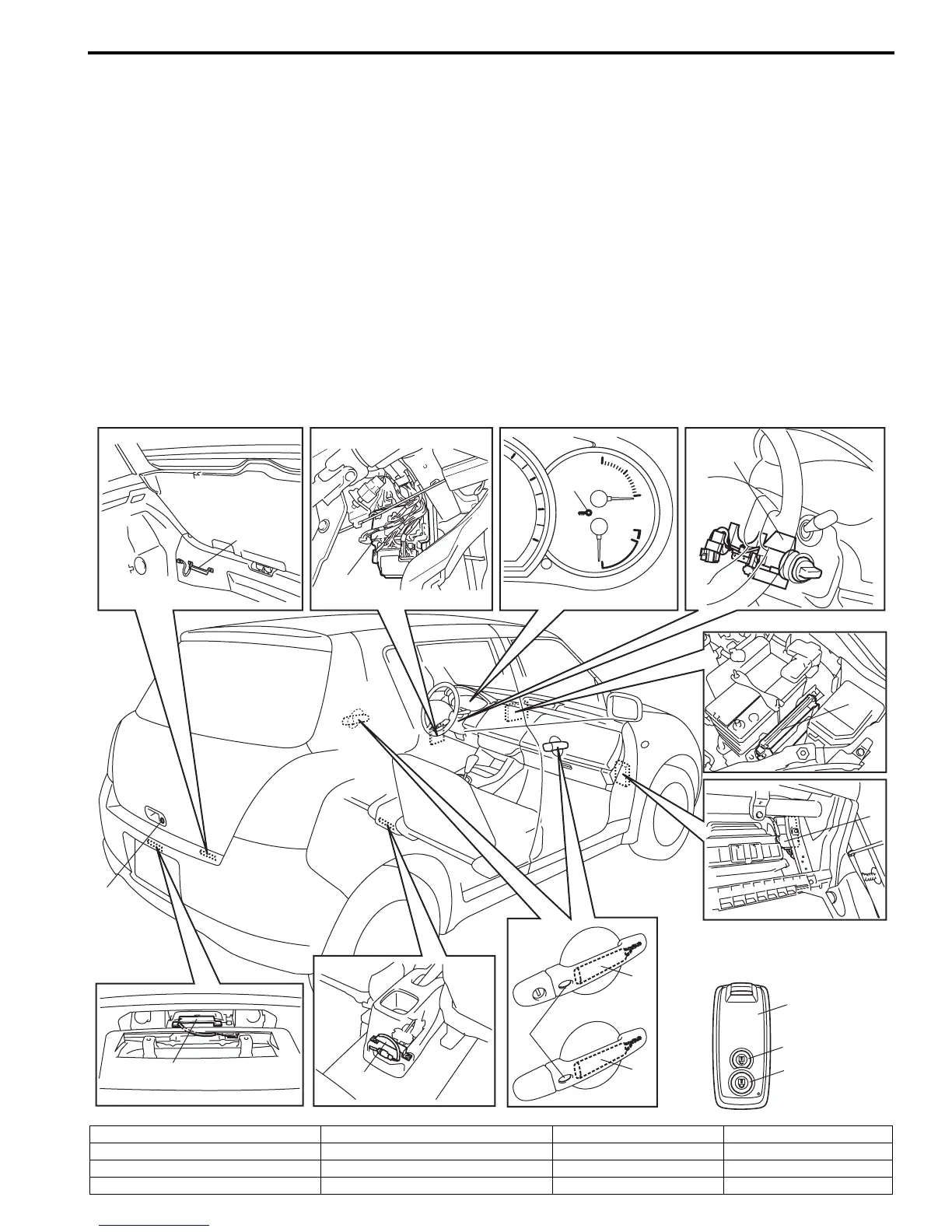

1. Keyless start control module 5. Luggage room antenna 9. Steering lock unit 13. Key indicator lamp
2. Remote controller 6. Driver side door antenna 10. Lock button 14. ECM
3. Request switch 7. Passenger side door antenna 11. Unlock button
4. Center antenna 8. Rear end door antenna 12. BCM
