5B-24 Manual Transmission/Transaxle:
Transaxle Left Case Disassembly and Assembly
S7RS0B5206017
Disassembly
1) Replace differential side oil seal from left case referring to “Differential Side Oil Seal Replacement”, if necessary.

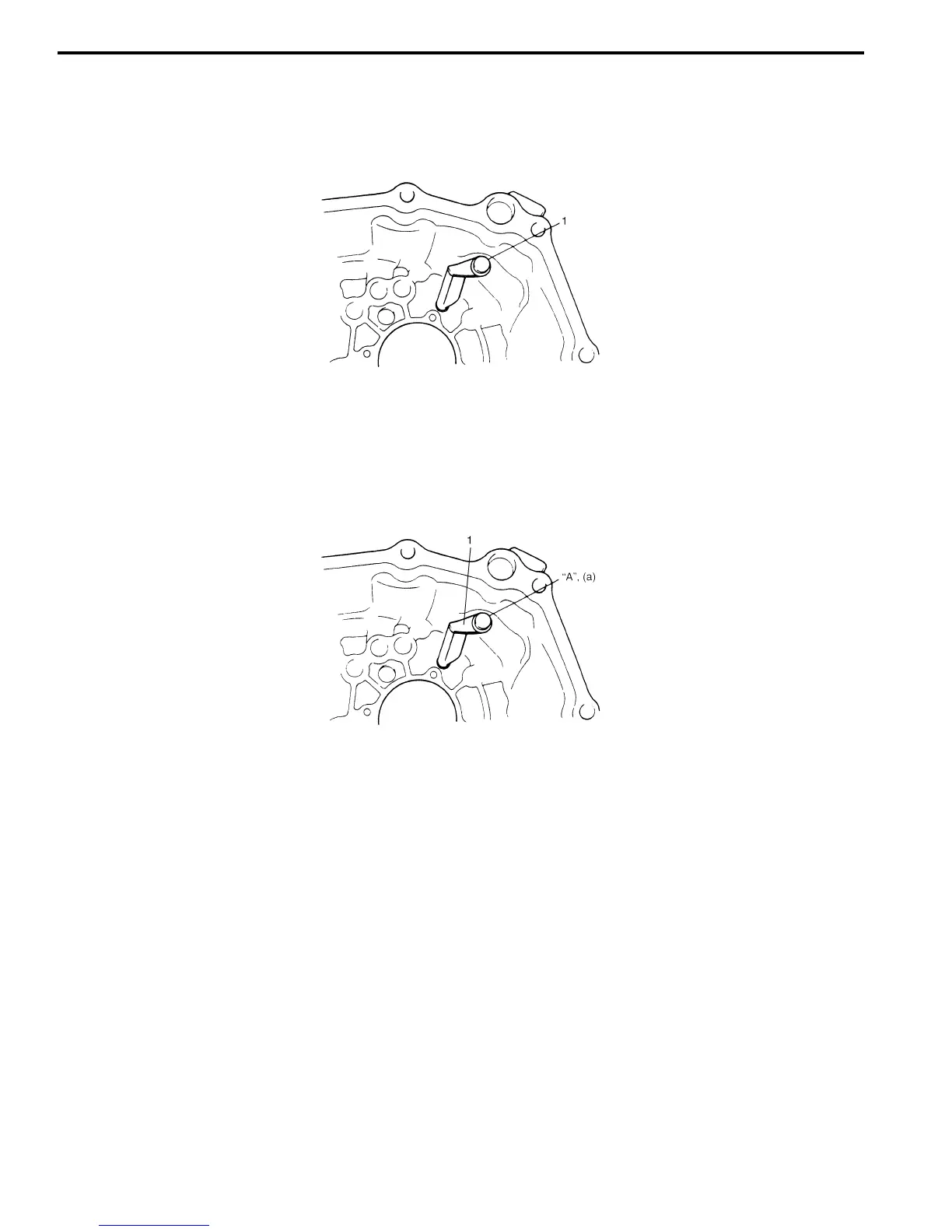

2) Remove input oil gutter (1) from left case, if necessary.
Assembly
1) If input oil gutter (1) has been removed, install it with bolt to which thread lock cement has been applied.
“A”: Thread lock cement 99000–32110 (Thread Lock Cement Super 1322)
Tightening torque
Oil gutter bolt (a): 10 N·m (1.0 kgf-m, 7.5 lb-ft)
2) If differential side oil seal is removed, install it to left case referring to “Differential Side Oil Seal Replacement”.
I4RH01520028-01
I3RM0A520048-01
