5A-92 Automatic Transmission/Transaxle:
Select Cable Components
S7RS0B5106011
Select Cable Removal and Installation
S7RS0B5106012
Removal
1) Remove parking brake lever cover.
2) Remove console box.
3) Disconnect select cable from select lever and then
detach from bracket.
4) Remove clip and disconnect select cable from
manual select lever.
5) Remove select cable retainer from dash panel.
Installation
Install select cable by reversing removal procedure.
The important steps in installation are as follows.
• Apply grease to pin and cable joint.
• Tighten bolts to specified torque referring to “Select
Cable Components”.
• Adjusting procedure is as follows. Refer to “Select
Cable Adjustment”.
(a)
11
3
10
9
6
8
4
5
(b)
7
1
I4RS0A510025-01

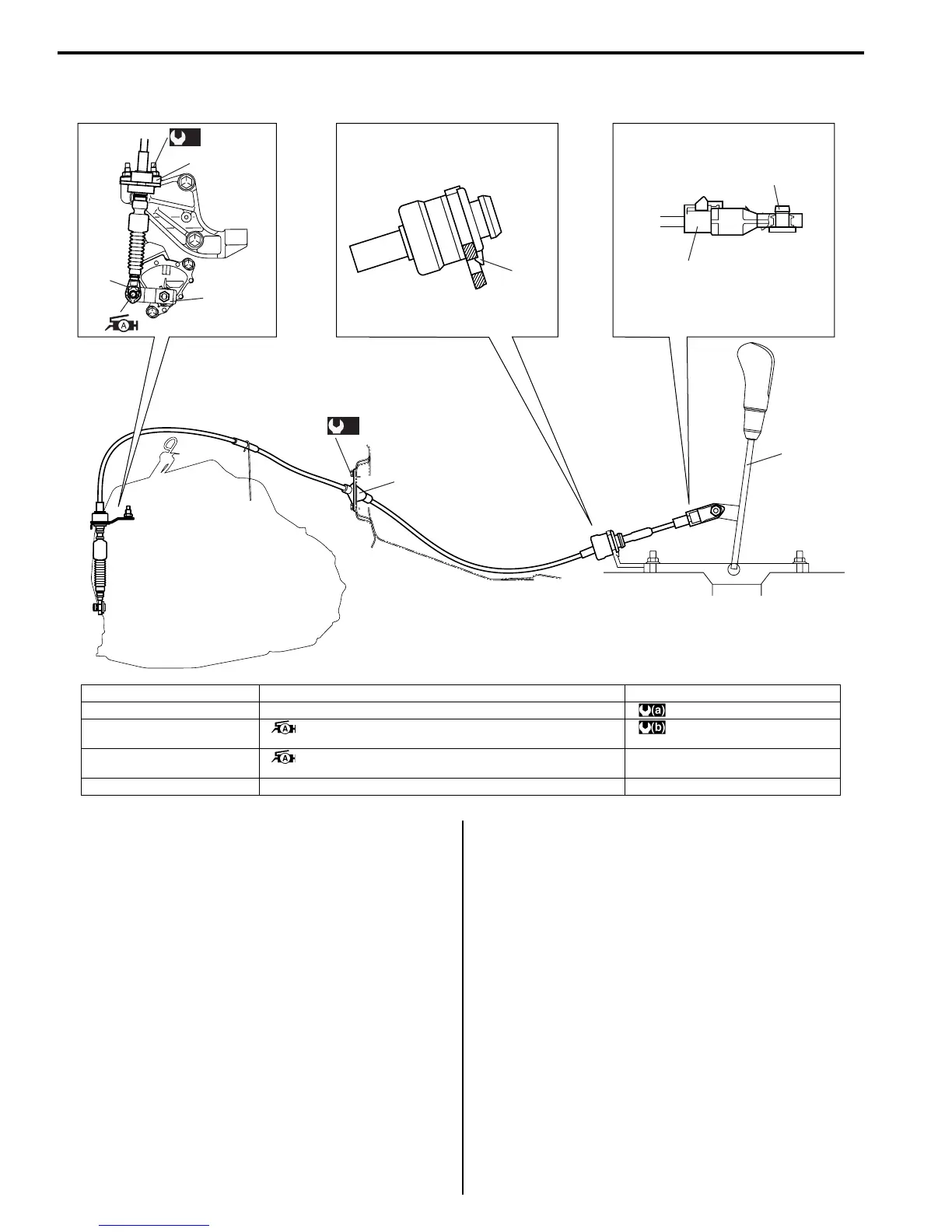

1. Select lever assembly 6. Clip 11. Lock
2. Select cable 7. Select cable retainer bolt : 23 N⋅m (2.0 kgf-m, 17.0 lb-ft)
3. Select cable retainer 8. Manual select lever pin
: Apply lithium grease 99000-25011 to all around pin (0.15 g)
:5.0 N⋅m (0.55 kgf-m, 4.0 lb-ft)
4. Cable bracket 9. Select lever pin
: Apply lithium grease 99000-25011 to all around pin (0.15 g)
5. Manual select lever 10. Adjuster case
