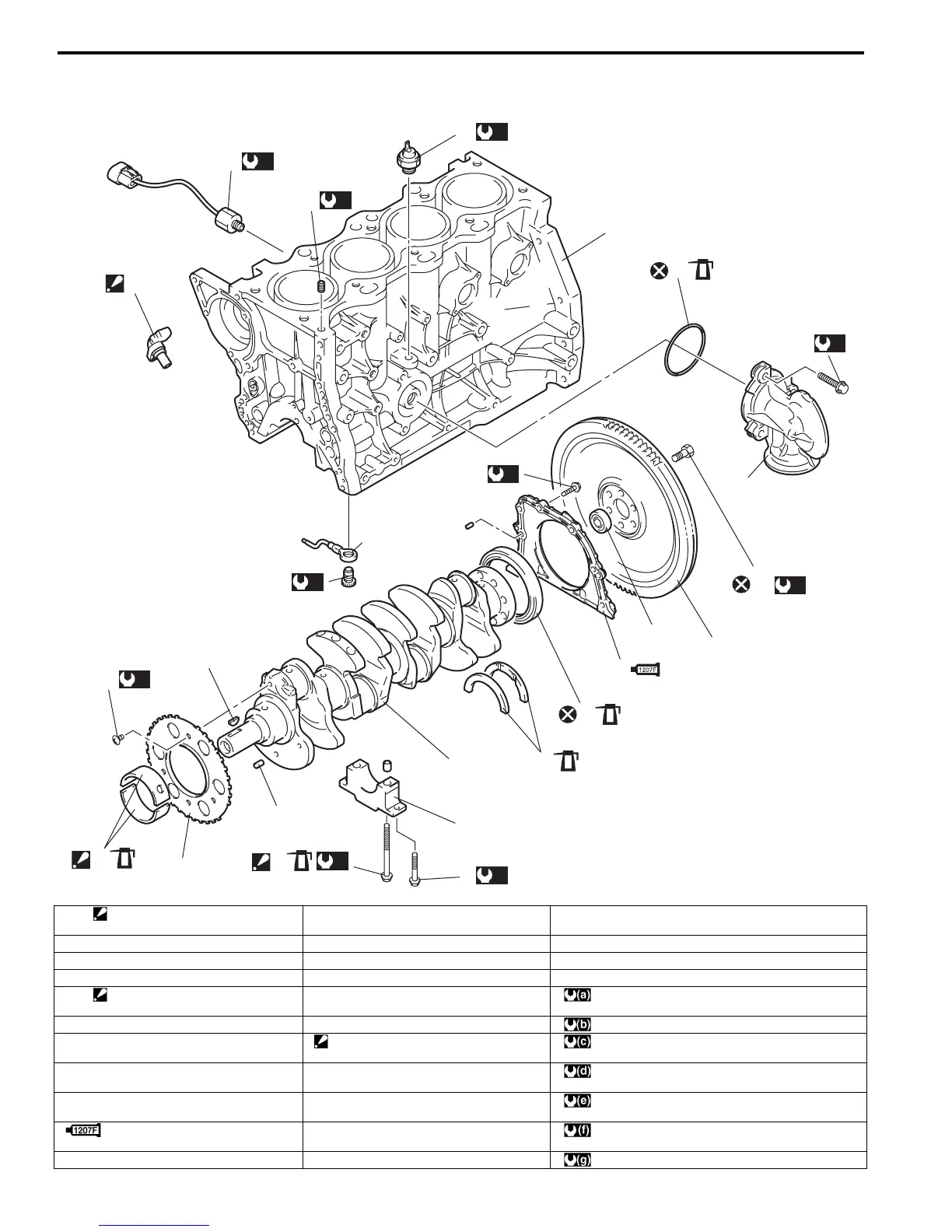

1D-53 Engine Mechanical:
Main Bearings, Crankshaft and Cylinder Block Components
S7RS0B1406035
(a)
(c)
(d)
(e)
(b)
(f)
(f)
(f)
(g)
(h)
1
2
3
4
5
6
7
8
9
10
11
15
12
13
14
16
17
18
19
20
21
22
23
24
25
26
OIL
OIL
OIL
OIL
OIL
I6RS0C140025-02
1. CKP sensor
: See “A”
12. Input shaft bearing 23. Sensor plate bolt
2. Knock sensor 13. Flywheel or drive plate 24. Oil pressure switch
3. Cylinder block 14. Main bearing cap 25. Piston cooling nozzle
4. Venturi plug 15. Flywheel or drive plate bolt 26. Piston cooling valve
5. Main bearing
: See “B”
16. Rear oil seal housing mounting bolt : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
6. Sensor plate 17. Main bearing cap No.2 bolt : 5 N⋅m (0.5 kgf-m, 4.0 lb-ft)
7. Crankshaft timing sprocket key 18. Main bearing cap No.1 bolt
: See “D”
:70 N⋅m (7.0 kgf-m, 51.0 lb-ft)
8. Crankshaft 19. O-ring : Tighten 25 N⋅m (2.5 kgf-m, 18.0 lb-ft) by the specified
procedure.
9. Thrust bearing 20. Oil filter adapter case : Tighten 30 N⋅m (3.0 kgf-m, 22.0 lb-ft), 50 N⋅m (5.0
kgf-m, 36.5 lb-ft) and 60° by the specified procedure.
10. Rear oil seal housing
: See “C”
21. Oil filter adapter bolt : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
11. Rear oil seal 22. Spring pin : 13 N⋅m (1.3 kgf-m, 9.5 lb-ft)
To Next Page
