Charging System: 1J-11
Generator Inspection
S7RS0B1A06008
Rotor

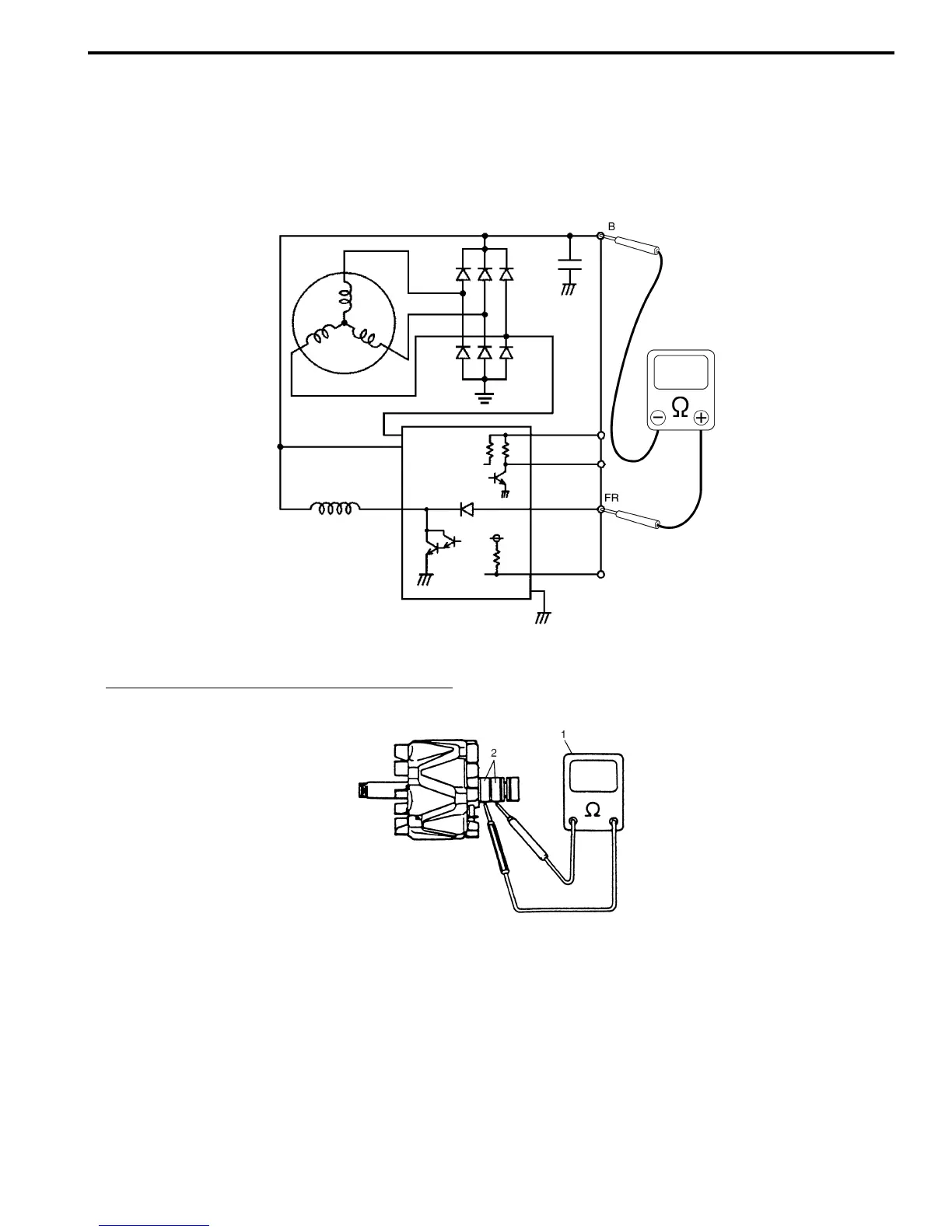

Using ohmmeter, connect positive terminal to “FR” terminal and connect negative terminal to “B” terminal of
generator, check that continuity between “B” terminal and “FR” terminal. If there is no continuity, replace rotor or
regulator.
Using an ohmmeter (1), check for continuity between slip rings (2) of rotor. If there is no continuity, replace the rotor.
Standard resistance between slip rings of rotor
: 1.7 – 2.0
I5JB0A1A0012-01
I4RS0B1A0005-01
