Suzuki SWIFT 2005 User Manual

9E-11 Glass / Windows / Mirrors:
Rear Door Glass Removal and Installation
S7RS0B9506007
Removal

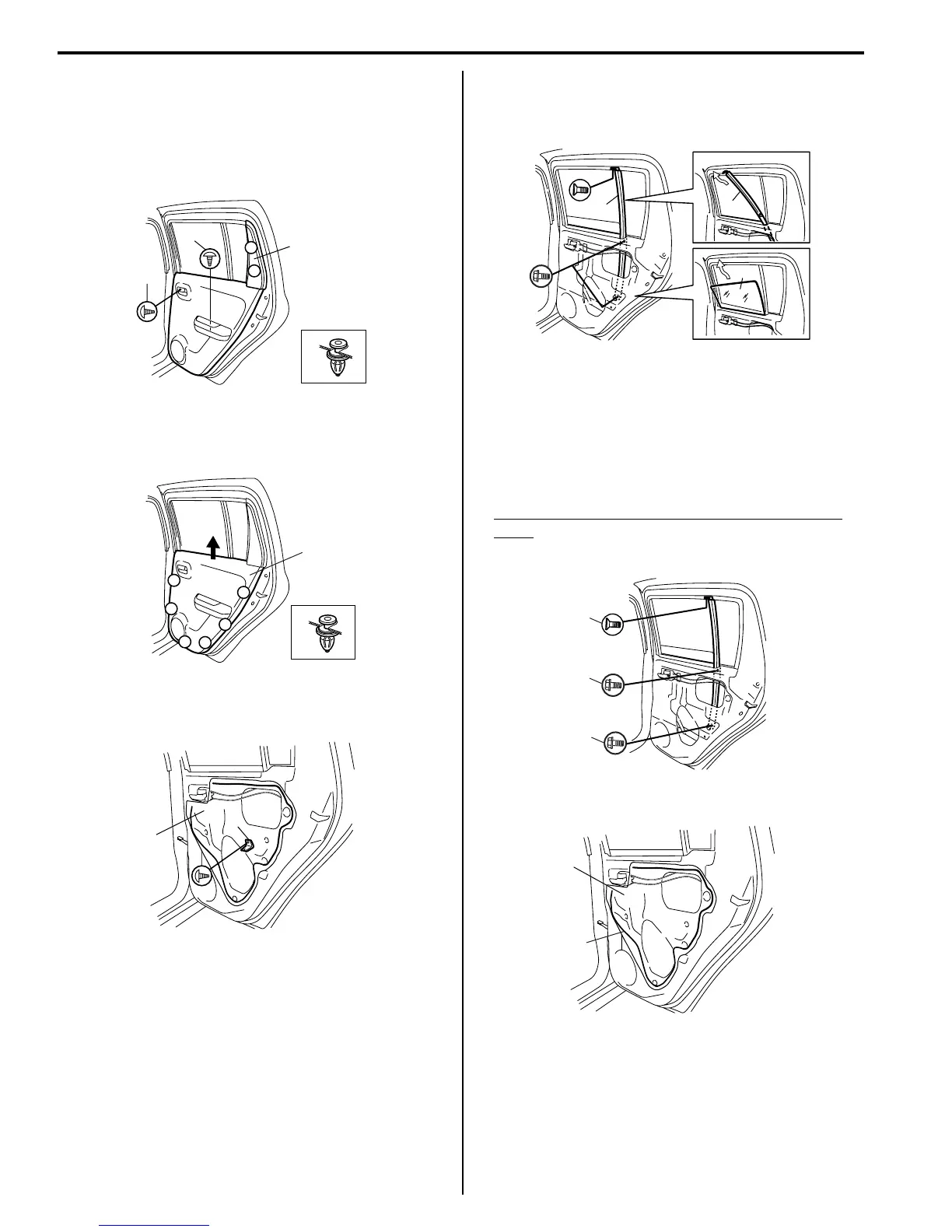

1) Remove rear door inner garnish (1).
2) Remove door trim mounting screws (2).
3) Remove door trim (1) as shown.
And disconnect power window switch lead wire at
coupler.
4) Remove door trim bracket (1).
5) Remove door sealing cover (2).
6) Detach rear part of glass run from door sash (1), and
remove door sash (1).
7) Remove door glass (2) as shown.
Installation
Reverse removal procedure noting the following
instructions.
• If there is deformity for glass run, replace it with a new
one.
• Tighten door sash mounting screw and bolts.
Door sash mounting screw and bolt tightening
order
(a) → (b) → (c)
• Secure door sealing cover (1) with adhesive (2).
“A”
“A”
“A”
2
2
1
I4RS0A950016-01
“A”
“A”
“A”
“A”
“A”
“A”
“A”
1
I4RS0A950017-01
1
2
I4RS0A950018-01
11
2
I4RS0A950019-01
(a)
(b)
(c)
I4RS0A950020-01
1
2
I4RS0A950021-01
