Suzuki SWIFT 2005 User Manual

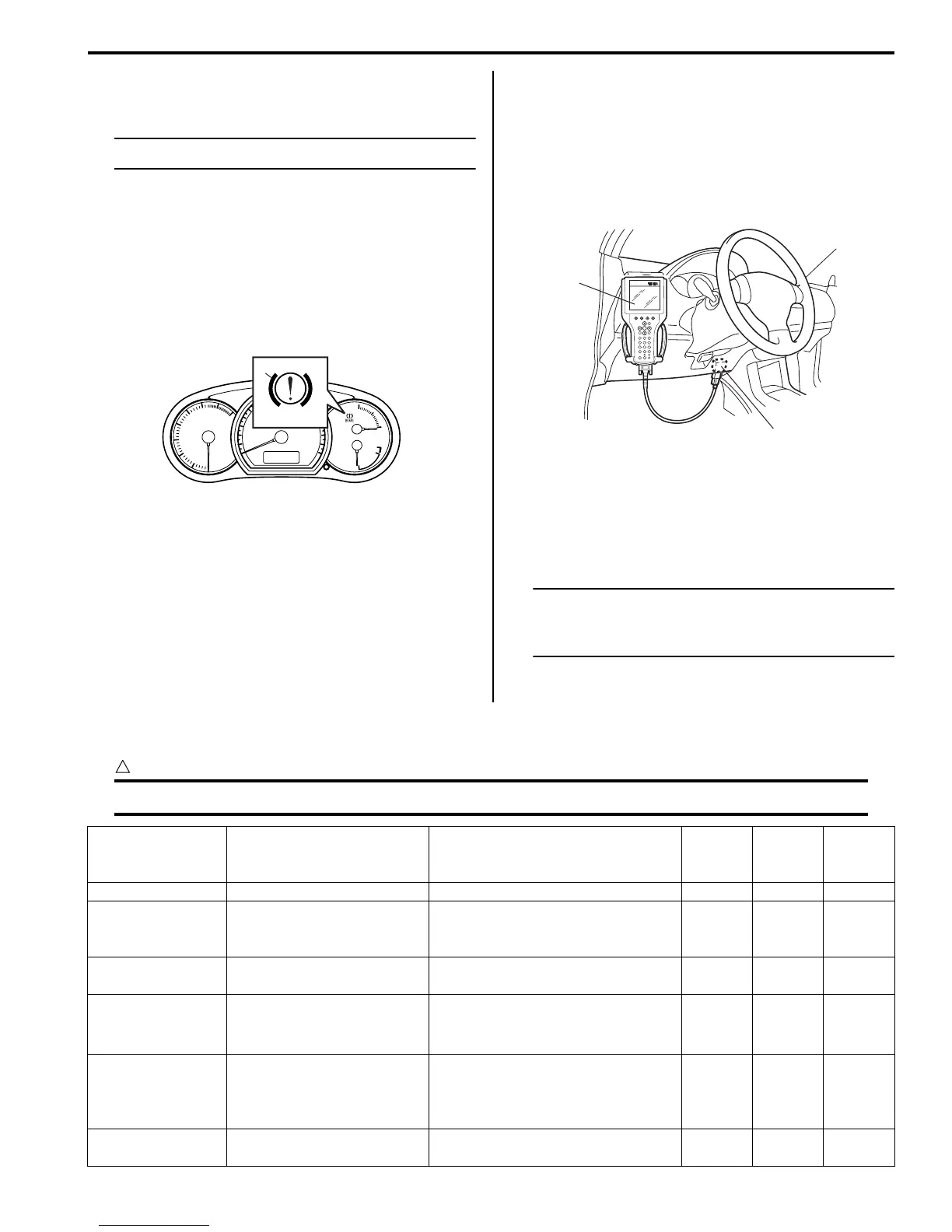

Electronic Stability Program: 4F-15
EBD Warning Lamp (Brake Warning Lamp)
Check
S7RS0B4604047
NOTE
Perform this check on a level place.
1) Turn ignition switch ON with parking brake applied.
2) Check that EBD warning lamp (brake warning lamp)
(1) is turned ON.
3) Release parking brake with ignition switch ON and
check that EBD warning lamp (brake warning lamp)
goes off.
If it doesn't go off, go to “EBD Warning Lamp (Brake
Warning Lamp) Comes ON Steady”.
DTC Check
S7RS0B4604004
1) Turn ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector
(1).
Special tool
(A): SUZUKI scan tool
3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on
SUZUKI scan tool and print it or write it down. Refer
to SUZUKI scan tool operator’s manual for further
details.
NOTE
If SUZUKI scan tool can not communicate
ESP® control module, perform “Serial Data
Link Circuit Check”.
5) After completing the check, turn ignition switch off
and disconnect SUZUKI scan tool from DLC.
DTC Table
S7RS0B4604005
CAUTION
!
Be sure to perform “Electronic Stability Program System Check” before starting diagnosis.
BRAKE
1
I4RS0A450008-01
(A)
1
I4RS0B450003-01
DTC (displayed
on SUZUKI scan
tool)
Diagnostic Items
Detecting condition (DTC will
beset when detecting)
ABS
warning
lamp
EBD
warning
lamp
ESP®
warning
lamp
NO DTC Normal — — — —
) C1016 Stop lamp switch failure
Vehicle behavior and stop lamp
switch signal is disagreed for
specified time.
———
) C1017
Lateral G sensor range /
performance
Lateral G sensor signal is out of
specified range.
——{
) C1018
Brake fluid level switch
failure
• Brake fluid level is too low.
• Input signal of brake fluid level
switch to BCM is low level.
——{
) C1020
Master cylinder pressure
sensor power supply failure
Power supply voltage to master
cylinder pressure sensor in ESP®
hydraulic unit / control module
assembly is out of specification.
——{
) C1021
Right-front wheel speed
sensor circuit failure
Wheel sensor signal is out of
specified range.
{ *1 {
