Body Electrical Control System: 10B-8
Component Location

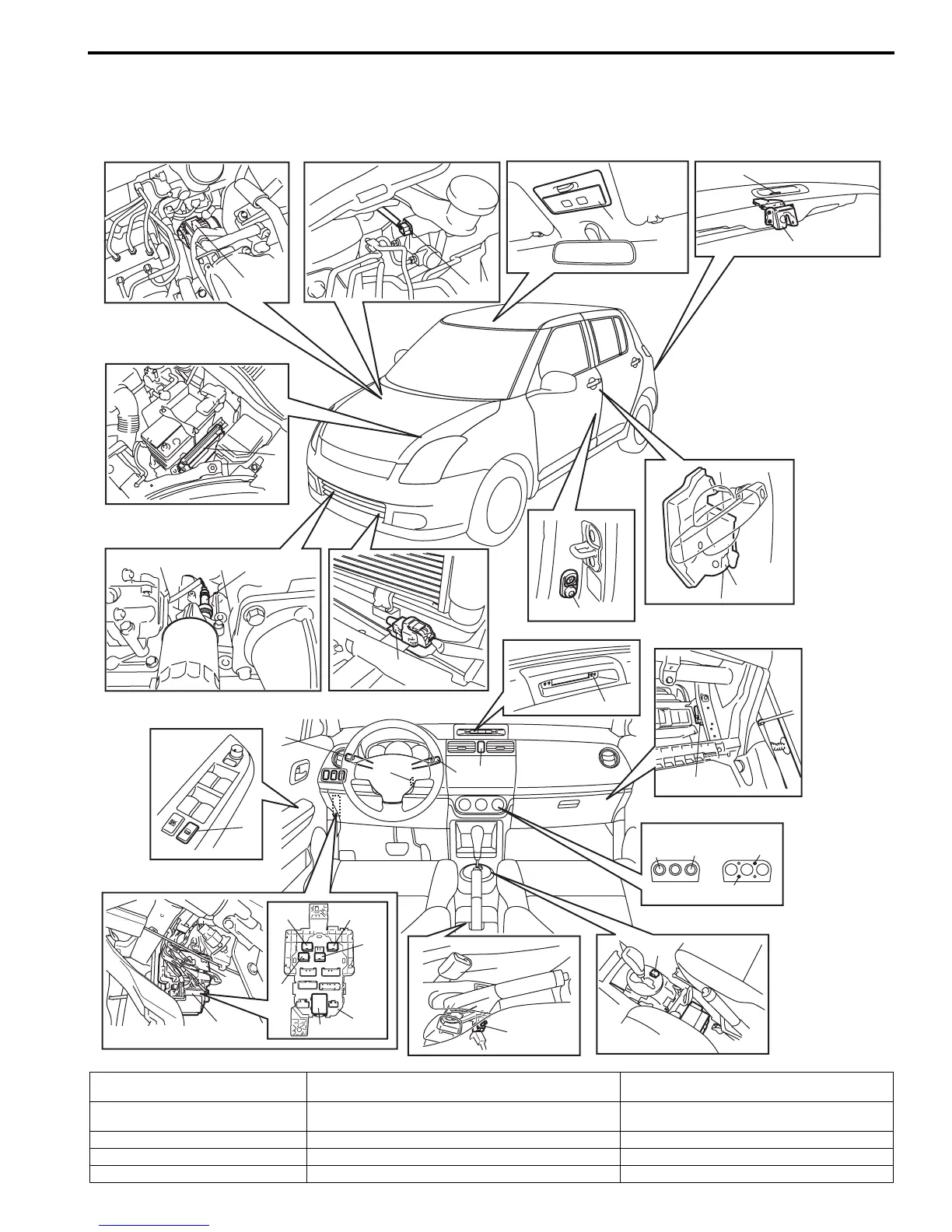

BCM and Related System Component Location
S7RS0BA203001
3
4
5
7
6
11
17
18
29
19
14
20
21
24 25
26
27
28
22
23
22
1
2
8
9
10
13
12
15
16
15
16
[A] [B]
I5RS0DA20005-01
[A]: Automatic A/C 10. Rear end door opener actuator (incorporated in door
switch)
21. “3” position switch (A/T model)
[B]: Manual A/C 11. Keyless entry receiver or keyless start control module (if
equipped)
22. Junction block assembly
1. Generator 12. Parking brake switch 23. BCM
2. Brake fluid level switch 13. Seat belt buckle switch 24. Heater relay
3. ECM 14. Theft deterrent light 25. Horn relay
To Next Page
