10E-14 Keyless Start System:

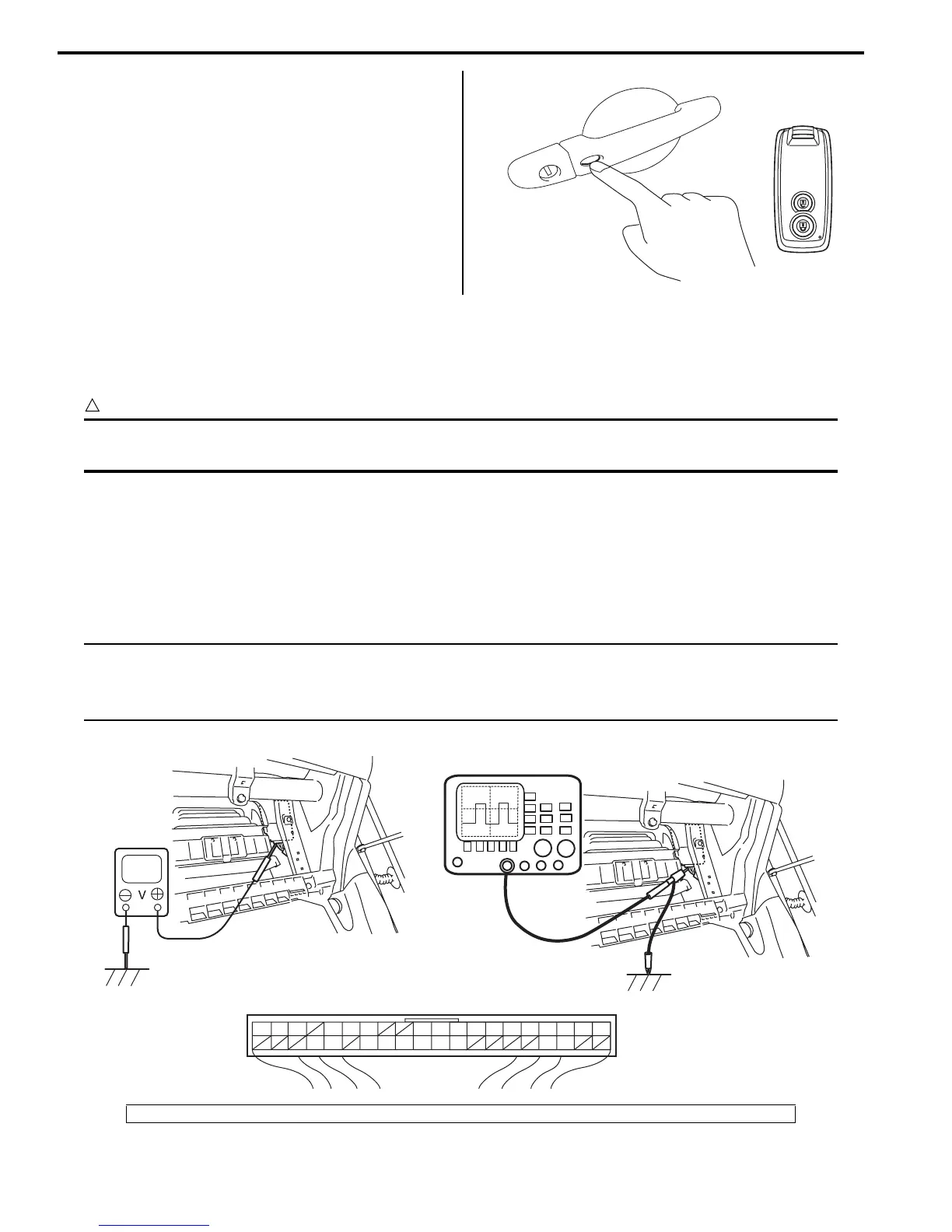

Door Lock Operation (Keyless Start System)
S7RS0BA504012
1) Check that all door locks are released and all doors
are closed.
2) With remote controller of which ID code is registered
in keyless start control module carried with yourself,
check that pushing driver door, passenger door or
rear end door request switch once locks all doors.
3) Check that pushing request switch of driver door,
passenger door or rear end door once releases all
door locks.
Inspection of Keyless Start Control Module and Its Circuits
S7RS0BA504013
Keyless start control module and its circuits can be checked at keyless start control module wiring couplers by
measuring voltage and resistance.
CAUTION
!
Keyless start control module cannot be checked by itself. It is strictly prohibited to connect voltmeter
or ohmmeter to keyless start control module with coupler disconnected from it.
Voltage Check
1) Disconnect negative (–) cable at battery.
2) Remove keyless start control module from vehicle body referring to “Keyless Start Control Module Removal and
Installation”.
3) Connect connector to keyless start control module.
4) Check voltage at each terminal number of couplers connected.
NOTE
• As each terminal voltage is affected by the battery voltage, confirm that it is 11 V or more when
ignition switch is ON.
• Voltage with asterisk (*) cannot be measured by voltmeter because it is pulse signal.
I4RS0BA50013-01
1234567891011141516
36 34 33 32 31 30 29 24 2337
181920
[A]
I4RS0BA50014-02
[A]: Keyless start control module connector (viewed from harness side)
To Next Page
