5A-128 Automatic Transmission/Transaxle:

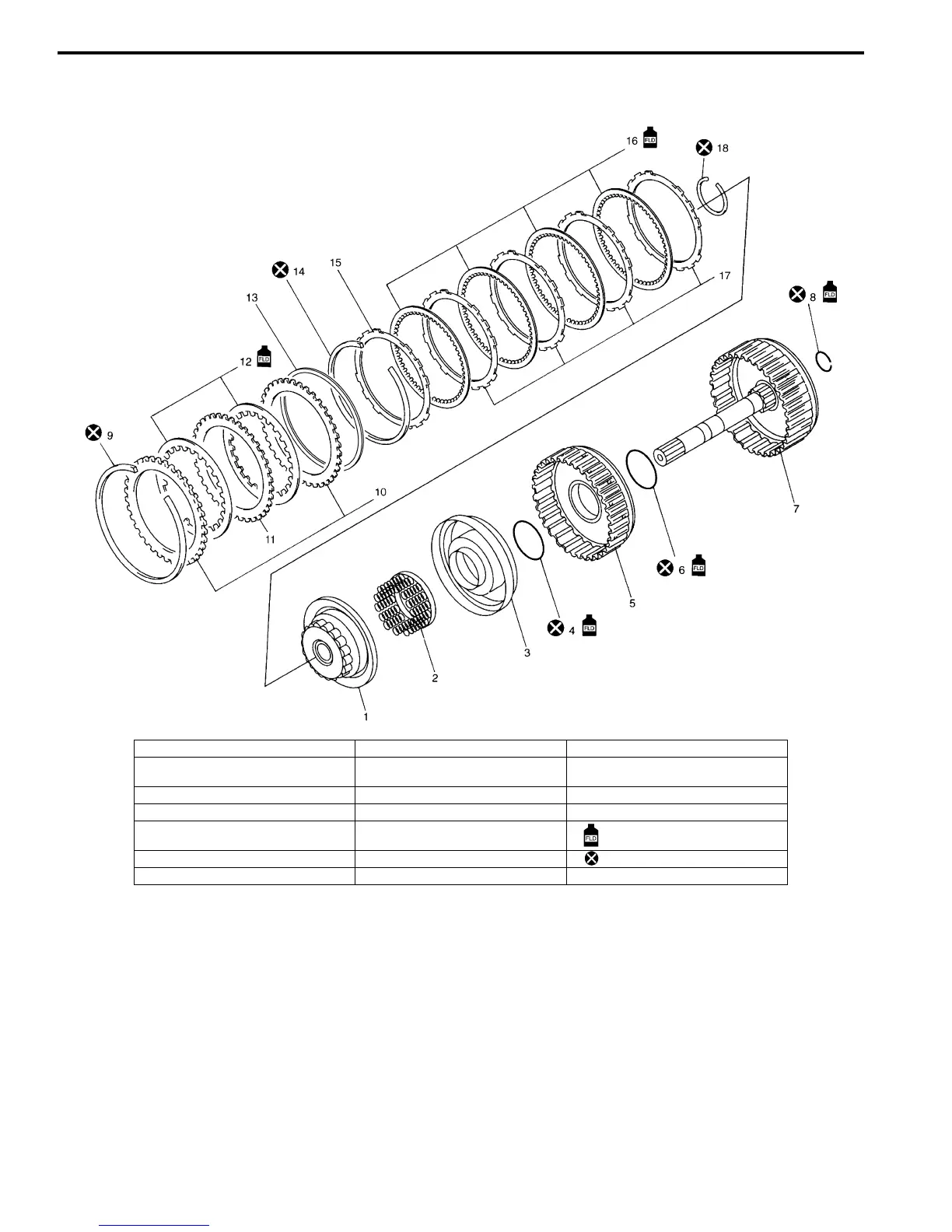

Forward and Reverse Clutch Assembly Components
S7RS0B5106041
I3RM0B510061-01
1. Forward clutch balancer 8. Intermediate shaft seal ring 15. Forward clutch retaining plate
2. Forward clutch return spring
subassembly
9. Reverse clutch plate snap ring 16. Forward clutch disc
3. Forward clutch piston 10. Reverse clutch retaining plate 17. Forward clutch separator plate
4. Forward clutch piston O-ring 11. Reverse clutch separator plate 18. Balancer snap ring
5. Forward clutch drum 12. Reverse clutch disc : Apply automatic transaxle fluid.
6. Forward clutch drum O-ring 13. Reverse clutch cushion plate : Do not reuse.
7. Intermediate shaft subassembly 14. Forward clutch plate snap ring
