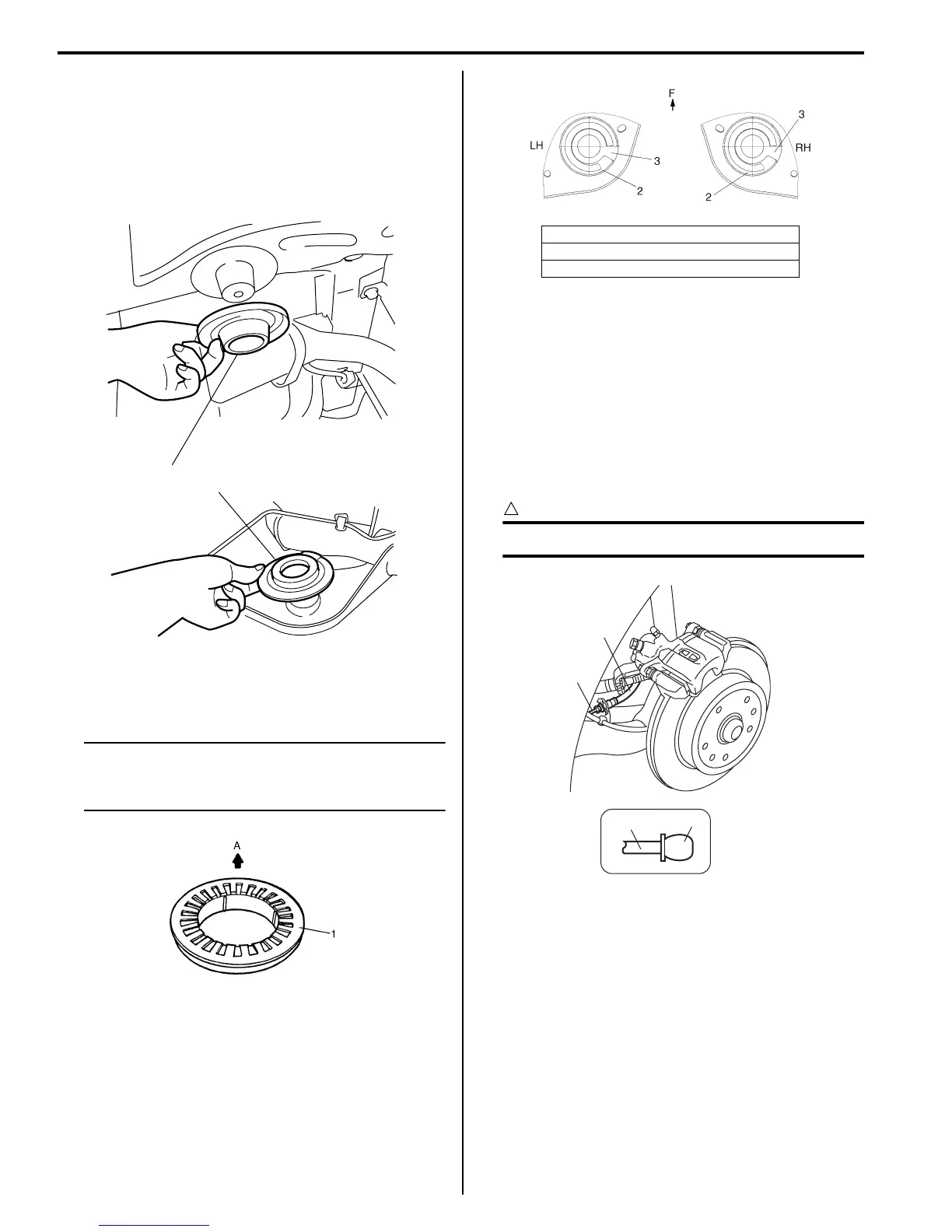

2C-6 Rear Suspension:
Spring Upper Seat and Lower Seat Removal and
Installation
S7RS0B2306007
Removal
1) Remove coil spring referring to “Rear Coil Spring
Removal and Installation”.
2) Remove spring upper seat (1) and lower seat (2).
Installation
1) Install spring upper seat (1) and lower seat (2).
NOTE
For proper installing direction of spring
upper seat (1) and lower seat (2), refer to the
figure.
2) Install coil spring referring to “Rear Coil Spring
Removal and Installation”.
Rear Axle Removal and Installation
S7RS0B2306008
Removal
1) Hoist vehicle and remove rear wheels (right & left).
2) Disconnect rear brake caliper flexible hoses (1) (right
& left) from brake pipes (2) and put bleeder plug cap
(3) onto pipe (2) prevent fluid from spilling.
CAUTION
!
Do not drop brake fluid onto painted surface.
1
2
I4RS0A230016-01
I3RM0A230021-01
A: Vehicle body side (Upper side)
F: Vehicle front
3. Stepped part
I4RS0A230017-01
1
2
2
3
I6RS0B230002-01
