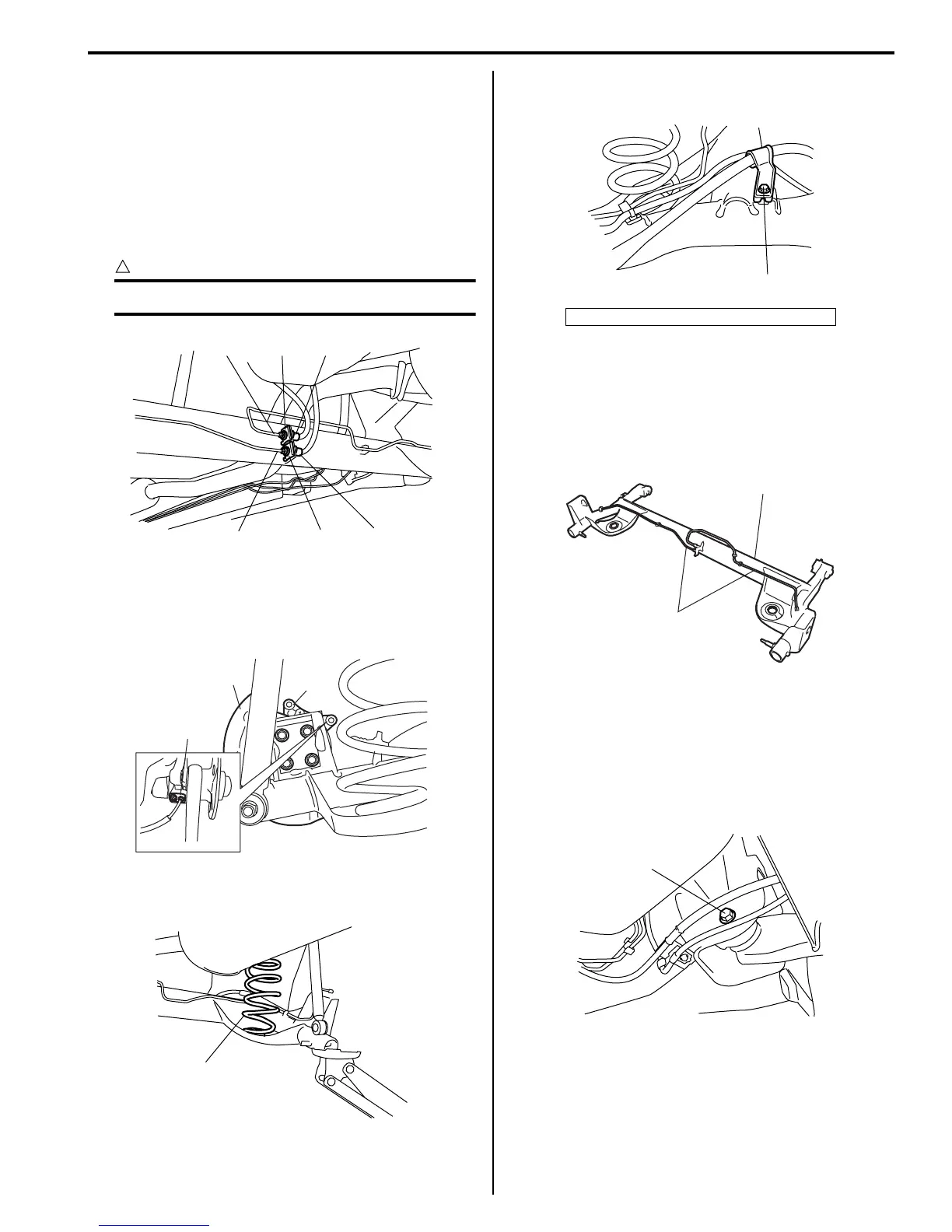

Rear Suspension: 2C-7
3) Remove rear brake caliper assemblies (right & left)
and brake discs (right & left). For details, refer to
Step 2) to 3) of “Removal” under “Rear Brake Disc
Removal and Installation in Section 4C”.
4) Remove rear wheel hubs (right & left). For details,
refer to Step 3) to 5) of “Removal” under “Rear
Wheel Hub Removal and Installation”.
5) Disconnect brake pipes (1) from brake hoses (2) and
remove E-rings (3).
CAUTION
!
Do not drop brake fluid onto painted surface.
6) Disconnect wheel speed sensors (1) and lead wire
clamps (right & left).
7) Remove brake disc dust cover (2) and spindles (3)
(right & left) from rear axle.
8) Remove coil springs (1) (right & left) referring to
“Rear Coil Spring Removal and Installation”.
9) Disconnect wheel speed sensor clamp and parking
brake cable clamp from rear axle.
10) While supporting rear axle (1) at both ends (right &
left), remove rear trailing arm bolts and then remove
rear axle from chassis by lowering floor jack
gradually.
11) Remove brake pipes (2) from rear axle (1) if
necessary.
Installation
1) Install brake pipes to rear axle.
2) Place rear axle on floor jacks.
Then install trailing arm, washers and new trailing
arm bolts (1) (right & left) and tighten bolts
temporarily by hand.
1
1
2
2
3
3
I4RS0A230018-01
1
2
3
I6RS0B230003-01
1
I4RS0A230020-01
1. Parking brake cable clamp bolt
1
I4RS0A230021-01
2
1
I6RS0B230004-01
1
I4RS0A230023-01
