6C-26 Power Assisted Steering System:
DTC C1121 / C1123 / C1124: VSS Circuit Failure
S7RS0B6304017
DTC C1121: No Vehicle Speed Signal (60 Seconds or More)
DTC C1123: No Vehicle Speed Signal (30 Seconds or More)
DTC C1124: Vehicle Speed Performance (Impossible Deceleration)

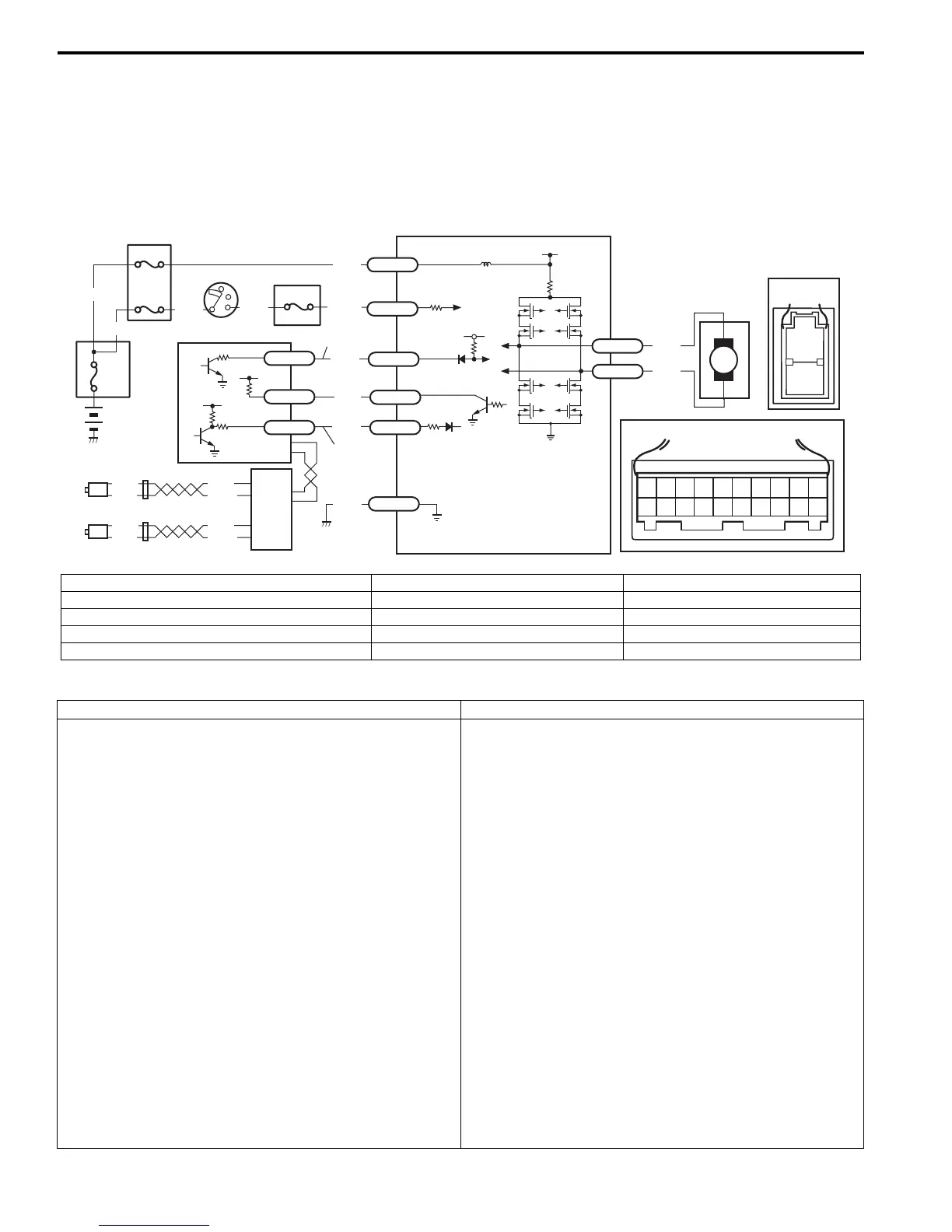

Wiring Diagram
DTC Detecting Condition and Trouble Area
M
BRN
RED/
BLU
BLK
RED
E52-14
E52-12
E23-4
E23-26
E23-25
E51-1
E51-2
[A]
12
3
4
5
67
8
9
11
10
12 13
14
15
16
17 18 19
20
5V
PPL
E52-4
8
5
12V
E49-2
BLK
12V
12V
6
RED
RED/
BLK
WHT
7
WHT
WHT/
BLK
WHT
BLK
BLK
11
1
2
[B]
9
LT GRN
/BLK
E52-1
E49-1
GRN
GRN
WHT
BLK
WHY
10
3
4
4
4
4
1
2
12
I7RS0B630009-01
[A]: Connector “E52” (viewed from harness side) 4. Fuse 9. ABS/ESP® control module
[B]: Connector “E49” (viewed from harness side) 5. ECM 10. Individual circuit fuse box No.1
1. Main fuse box 6. Left-front wheel speed sensor 11. Vehicle speed signal circuit
2. Ignition switch 7. Right-front wheel speed sensor 12. Engine speed signal circuit
3. Junction block assembly 8. P/S control module
DTC detecting condition Trouble area
DTC C1121:
Vehicle speed signal is 0 km/h even though engine speed
is more than 4000 rpm for more than 60 seconds
continuously (before elapse of 5 min from engine start) or
vehicle speed signal is 0 km/h even though engine speed
is more than 2500 rpm for more than 60 seconds
continuously (after elapse of 5 min for engine start).
(1 driving cycle detection logic but MIL does not light up)
DTC C1123:
Vehicle speed signal is 0 km/h with continuously more
than 3 driving cycles even though engine speed is more
than 4000 rpm for more than 30 seconds continuously
(before elapse of 5 min from engine start) or vehicle speed
signal is 0 km/h with continuously more than 3 driving
cycles even though engine speed is more than 2500 rpm
for more than 30 seconds continuously (after elapse of 5
min for engine start).
(3 driving cycle detection logic)
DTC C1124:
Vehicle speed signal is less than 5 km/h for more than 5
seconds continuously with more than specified
deceleration speed (–20 m/s
2
) from over 20 km/h.
(1 driving cycle detection logic but MIL does not light up)
• Vehicle speed signal circuit
• Wheel speed sensor
•ECM
• P/S control module
• ABS/ESP® control module
• CAN communication circuit
