Suzuki SWIFT 2005 User Manual

Wiring Systems: 9A-18

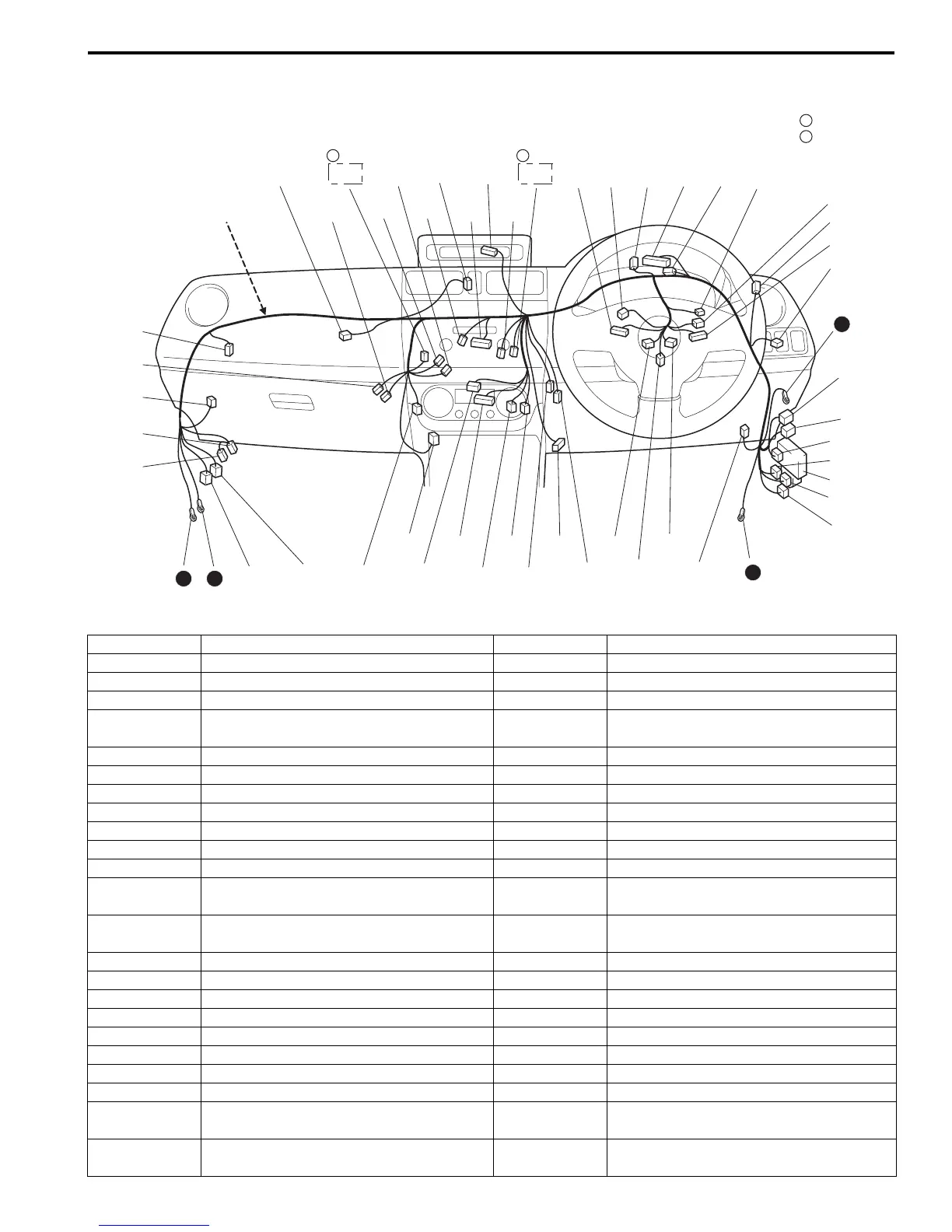

G: Instrument panel harness (RHD)
G: Instrument panel harness
J/B
9
10
G33
G32
G34
G35
(TO E37)
G36
(TO E38)
G31
G29
G23
G53
G22
G21
G28 G59
G20G52
G27
G54
G26
11 12
G03
(TO L33)
G04
(TO L32)
G46
G01
G02
G42
G43
(TO L51)
G10
G47
G11
G13G49
G14
G09
G25 G24 G15
G12 G50
G48
G17
G16
G51
G19
G18
G06
G05
G
G09
G37
A
B
Manual A/C
Auto A/C
A B
I7RS0B910906-01
No./Color Connective position No./Color Connective position
G01/GRN Air intake control actuator G26/YEL Driver inflator
G02/N Keyless receiver G27/N COMB switch
G03/N Floor harness (To L33) G28/GRY COMB meter
G04/YEL Floor harness (To L32)
G29/GRN (IF
EQPD)
Front fog light switch
G05/N Blower motor G31/N J/C
G06/N Blower motor resister G32/N J/B
G09/N Evaporator temperature sensor G33/N J/B
G10/BLK Passenger inflator G34/N J/B
G11/N Hazard switch G35/GRY Main harness (To E37)
G12/BLU Audio G36/N Main harness (To E38)
G13/N Navigation G37/BLU BCM
G14/GRN Multi information display
G42/N (IF
EQPD)
KLS ECM
G15/GRY J/C
G43/GRY (IF
EQPD)
Floor harness (To L51)
G16/N or BLU J/C G46/N Blower motor controller
G17/N J/C G47/BLK Diode
G18/GRN HVAC control switch G48/N Temperature control actuator
G19/BRN Blower speed selector G49/GRN Air flow control actuator
G20/BLK DLC G50/N Inside air temperature sensor
G21/N IG switch G51/GRY Auto A/C unit
G22/N Main switch (Key switch) G52/GRY Auto A/C unit
G23/BLK COMB switch G53/N Sunload sensor
G24/BLK ICM
G54/N (IF
EQPD)
Steering angle sensor
G25/N COMB switch
G59/N (IF
EQPD)
J/C
