Suzuki SWIFT 2005 User Manual

9A-19 Wiring Systems:

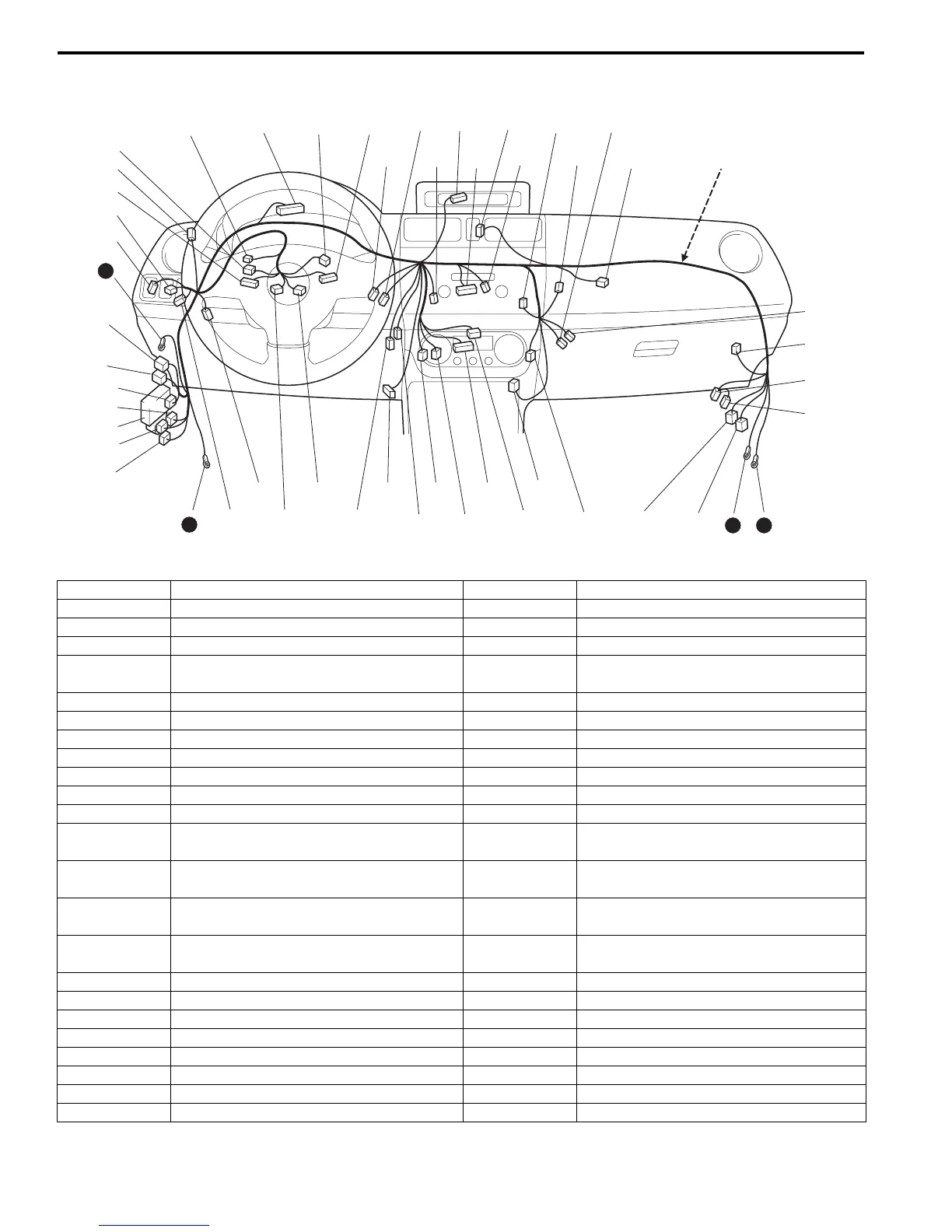

G: Instrument panel harness (LHD)
G: Instrument panel harness
J/B
9
10
G33
G32
G34
G35
(TO E37)
G36
(TO E38)
G29
G40
G23
G53
G22
G21
G28
G20 G52
G27G39
G26
G31
1112
G03
(TO L33)
G04
(TO L32)
G46
G02
G42
G43
(TO L51)
G10
G47
G11
G13 G01
G14
G49
G50G48
G25G24
G12
G17
G16
G51
G19
G18
G06
G05
G
G09
G37
I5RS0C910910-03
No./Color Connective position No./Color Connective position
G01/GRN Air intake control actuator G26/YEL Driver inflator
G02/N Keyless receiver G27/N COMB switch
G03/N Floor harness (To L33) G28/GRY COMB meter
G04/YEL Floor harness (To L32)
G29/GRN (IF
EQPD)
Front fog light switch
G05/N Blower motor G31/N J/C
G06/N Blower motor resister G32/N J/B
G09/N Evaporator temperature sensor G33/N J/B
G10/BLK Passenger inflator G34/N J/B
G11/N Hazard switch G35/GRY Main harness (To E37)
G12/BLU Audio G36/N Main harness (To E38)
G13/N Navigation G37/BLU BCM
G14/GRN Multi information display
G39/N (IF
EQPD)
DRL controller
G15/GRY J/C
G40/N (IF
EQPD)
Headlight leveling switch
G16/N J/C
G42/N (IF
EQPD)
KLS ECM
G17/N J/C
G43/GRY (IF
EQPD)
Floor harness (To L51)
G18/GRN HVAC control switch G46/N Blower motor controller
G19/BRN Blower speed selector G47/BLK Diode
G20/BLK DLC G48/N Temperature control actuator
G21/N IG switch G49/GRN Air flow control actuator
G22/N Main switch (Key switch) G50/N Inside air temperature sensor
G23/BLK COMB switch G51/GRY Auto A/C unit
G24/BLK ICM G52/GRY Auto A/C unit
G25/N COMB switch G53/N Sunload sensor
