8A-5 Seat Belts:
Seat Belt
• The seat belt webbing or strap should be free from
damage.

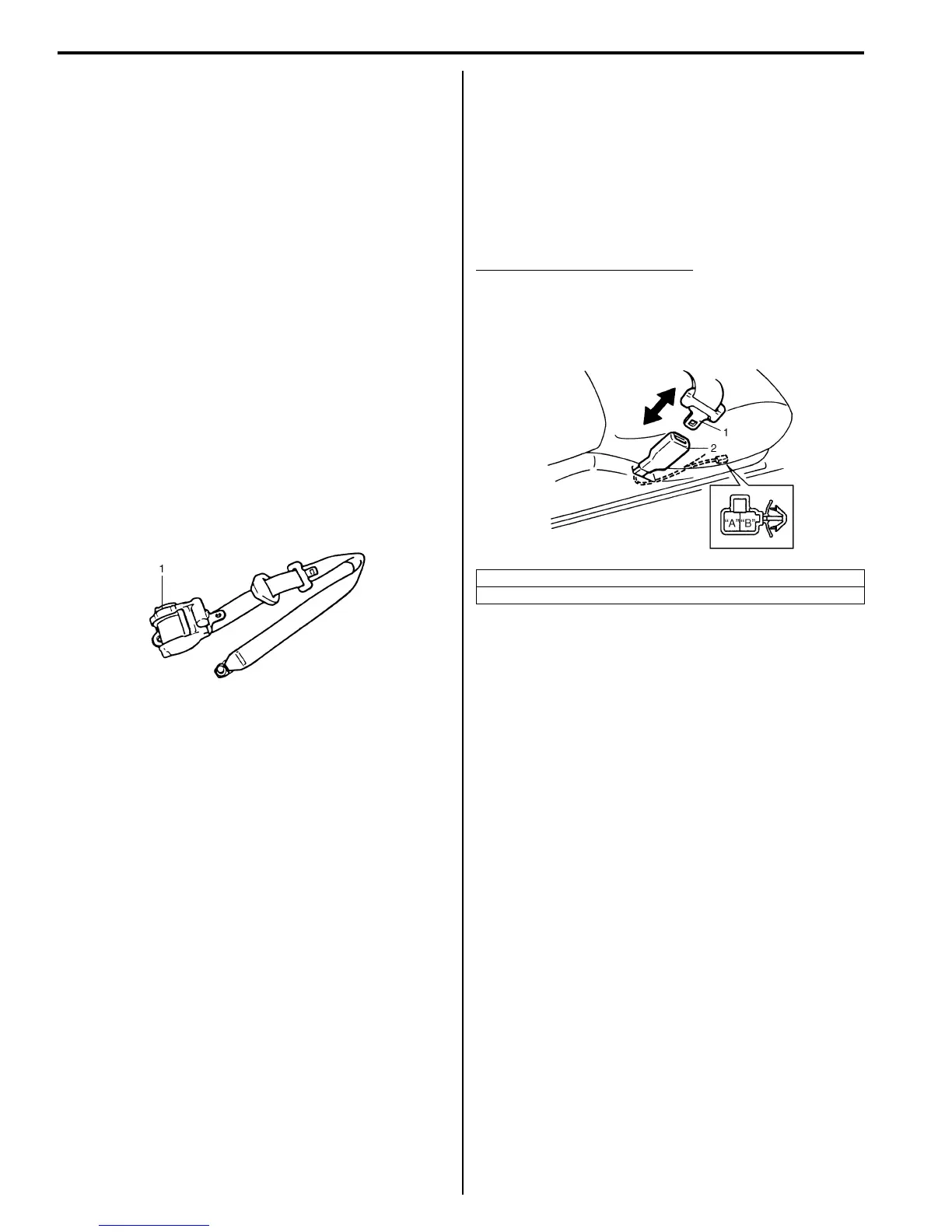

Retractor Assembly (with Seat Belt Pretensioner)
1) Let the seat belt retract fully to confirm its easy
retraction.
• The retractor assembly should lock webbing when
pulled quickly.
• The front seat belt retractor assembly (1) should
pass the inspection and should lock webbing even
when tilted (approx. 15°) toward the fore and aft or
right and left directions.
2) Check retractor assembly (1) with seat belt
pretensioner appearance visually for following
symptoms and if any one of them is applicable,
replace it with a new one as an assembly.
• Pretensioner has activated.
• There is a crack in seat belt pretensioner
(retractor assembly).
• Seat belt pretensioner (retractor assembly) is
damaged or a strong impact (e.g., dropping) was
applied to it.
Anchor Bolt
• Anchor bolts should be torqued to specification.
Belt Latch
• It should be secure when latched.
Seat Belt Switch
Check driver side seat belt switch for continuity by using
ohmmeter.
Seat belt switch specification
Without inserted buckle tongue to buckle catch:
Terminal “A” and “B”: Continuity
With inserted buckle tongue to buckle catch:
Terminal “A” and “B”: No continuity
I2RH01810005-01
1. Buckle tongue
2. Buckle catch
I4RS0B810001-01
