8B-26 Air Bag System:
2 1) With ignition switch OFF, disconnect “L32” connector
located near the glove box.
2) Check proper connection to floor harness connector at
terminal “L32-1” and “L32-2”.
3) If OK, then connect special tools (B) and (D) to “L32”
connector.
Special tool
(B): 09932–75010
(D): 09932–77320
4) Check SDM DTC.
NOTE
At this time, DTC B1041 may be output, but it is
not related to this check.
With ignition switch ON, is DTC B1031 indicated?
Go to Step 3. High resistance or open
wire in “GRN/RED” or
“GRN” circuit in
instrument panel
harness.
Step Action Yes No

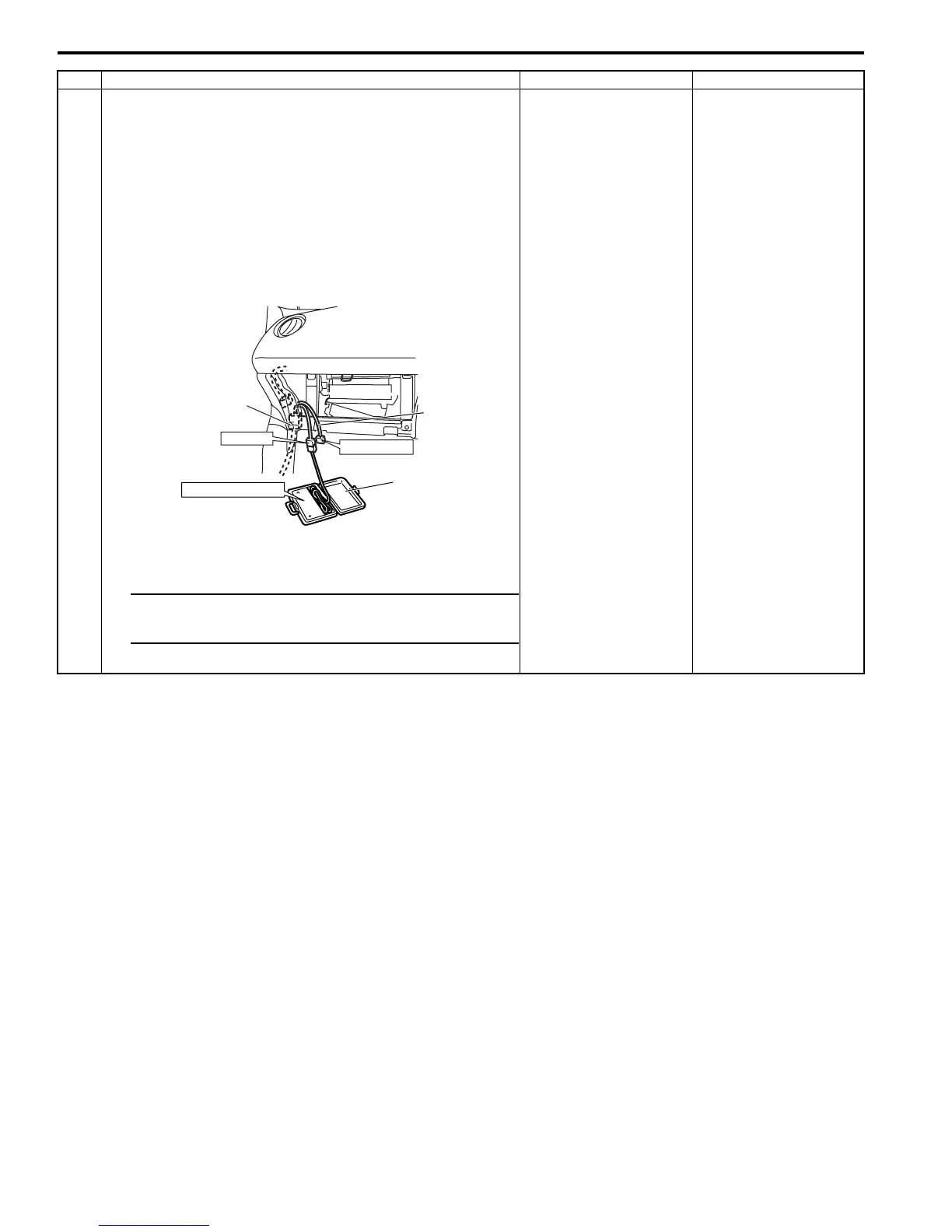

(B)
(D)
"L32"
BASE OF COLUMN
DRIVER
PASSENGER
I4RS0A820015-01
To Next Page
