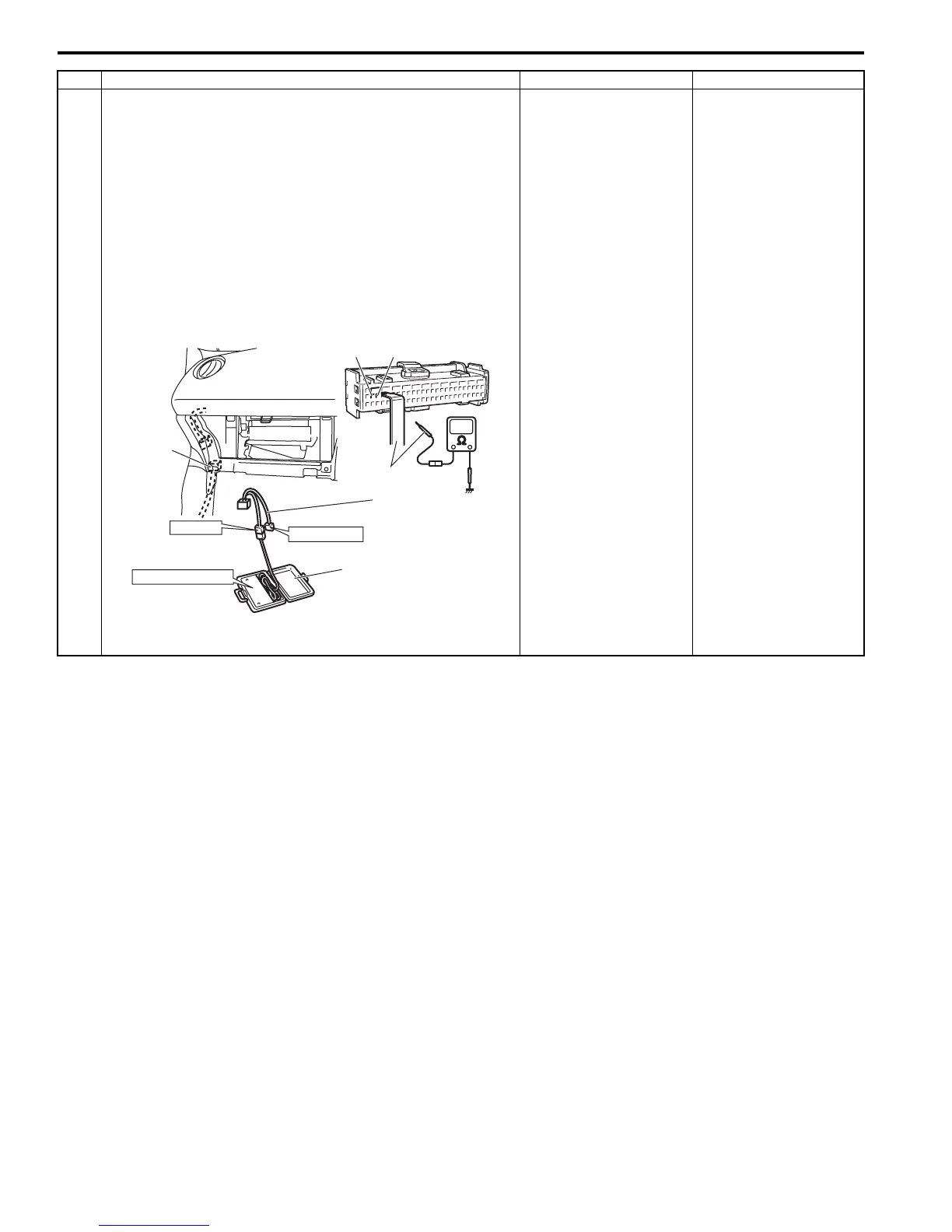

8B-42 Air Bag System:
3 1) With ignition switch OFF, disconnect special tools (B)
and (D) from “L32” connector and SDM connector “L29”
from SDM respectively.
2) Release Shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
3) Measure voltage from “L29-3” terminal to body ground
and between “L29-4” terminal to body ground.
Special tool
(A): 09932-76010
(B): 09932-75010
(D): 09932–77320
With ignition switch ON, is each measured value 1 V or less?
Substitute a known-
good SDM and recheck.
“GRN/RED” circuit or
“GRN” circuit shorted to
power supply circuit.
Step Action Yes No
(B)
(D)
"L32"
BASE OF COLUMN
DRIVER
PASSENGER
(A)
"L29-4""L29-3"
I7RS0A820012-03
To Next Page
