Air Bag System: 8B-45
DTC Troubleshooting
Step Action Yes No
1 1) With ignition switch OFF, disconnect passenger air bag
(inflator) module connector.
2) Check proper connection to passenger air bag (inflator)
module at terminals in “G10” connector.

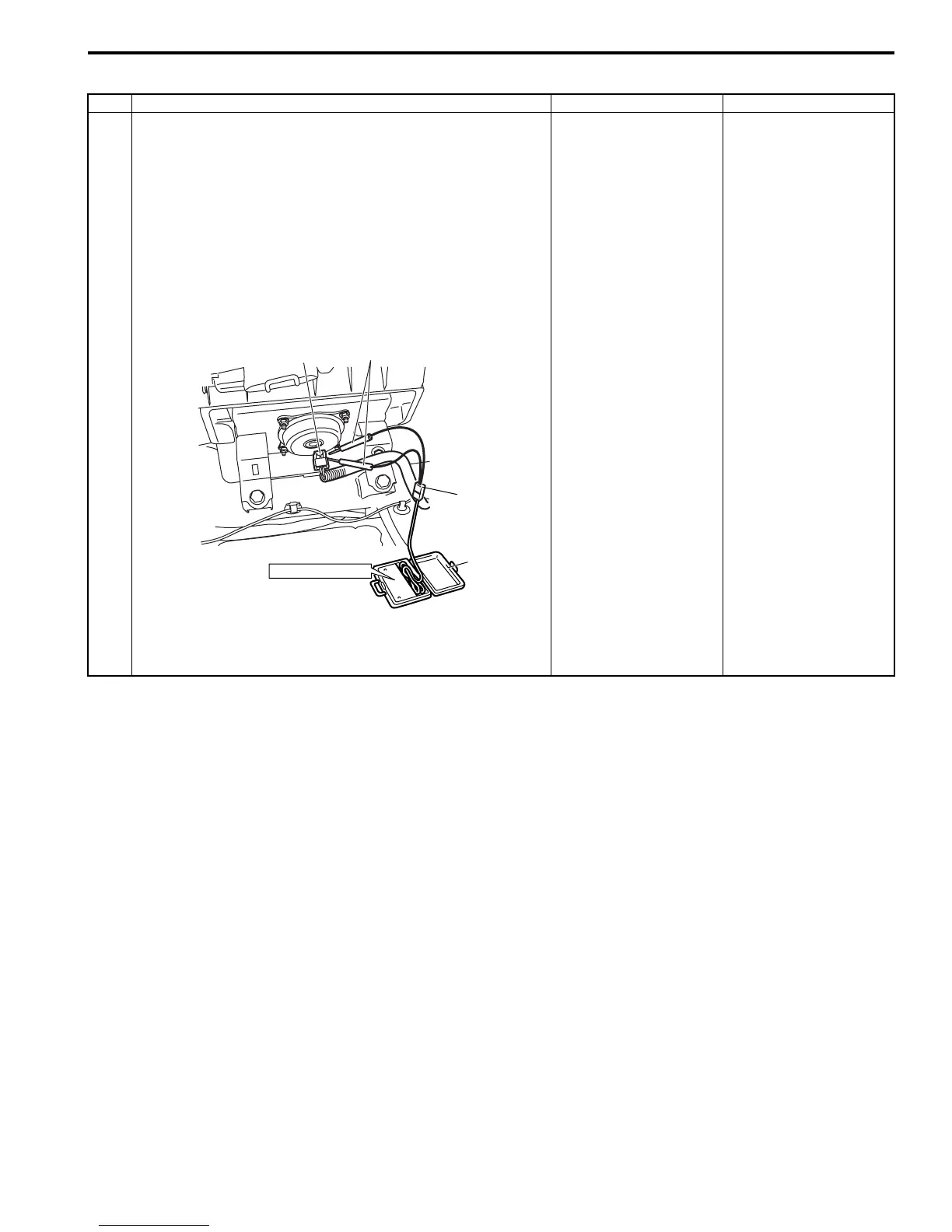

3) If OK, then connect special tools (A), (B) and (D) to
“G10” connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(D): 09932–78310
4) Check SDM DTC.
With ignition switch ON, is DTC B1041 indicated?
Go to Step 2. Turn ignition switch
OFF. Replace
passenger air bag
(inflator) module
referring to “Passenger
Air Bag (Inflator) Module
Removal and
Installation”.
STEERING WHEEL
(B)
(D)
(A)
"G10"
I4RS0A820021-01
To Next Page
