8B-52 Air Bag System:
2 1) With ignition switch OFF, disconnect “L32” connector
located near the glove box.
2) Check proper connection to floor harness connector at
terminal “L32-3” and “L32-4”.
3) If OK, then connect special tools (B) and (C) to “L32”
connector disconnected in Step 1).
Special tool
(B): 09932-75010
(C): 09932–77320
4) Check SDM DTC.
NOTE
At this time, DTC B1031 may be output, but it is
not related to this check.
With ignition switch ON, is DTC B1043 indicated?
Go to Step 3. “BLU/RED” or “YEL/
RED” circuit shorted to
ground in instrument
panel harness.
Step Action Yes No
(B)
(C)
"L32"
STEERING WHEEL
DRIVER
PASSENGER

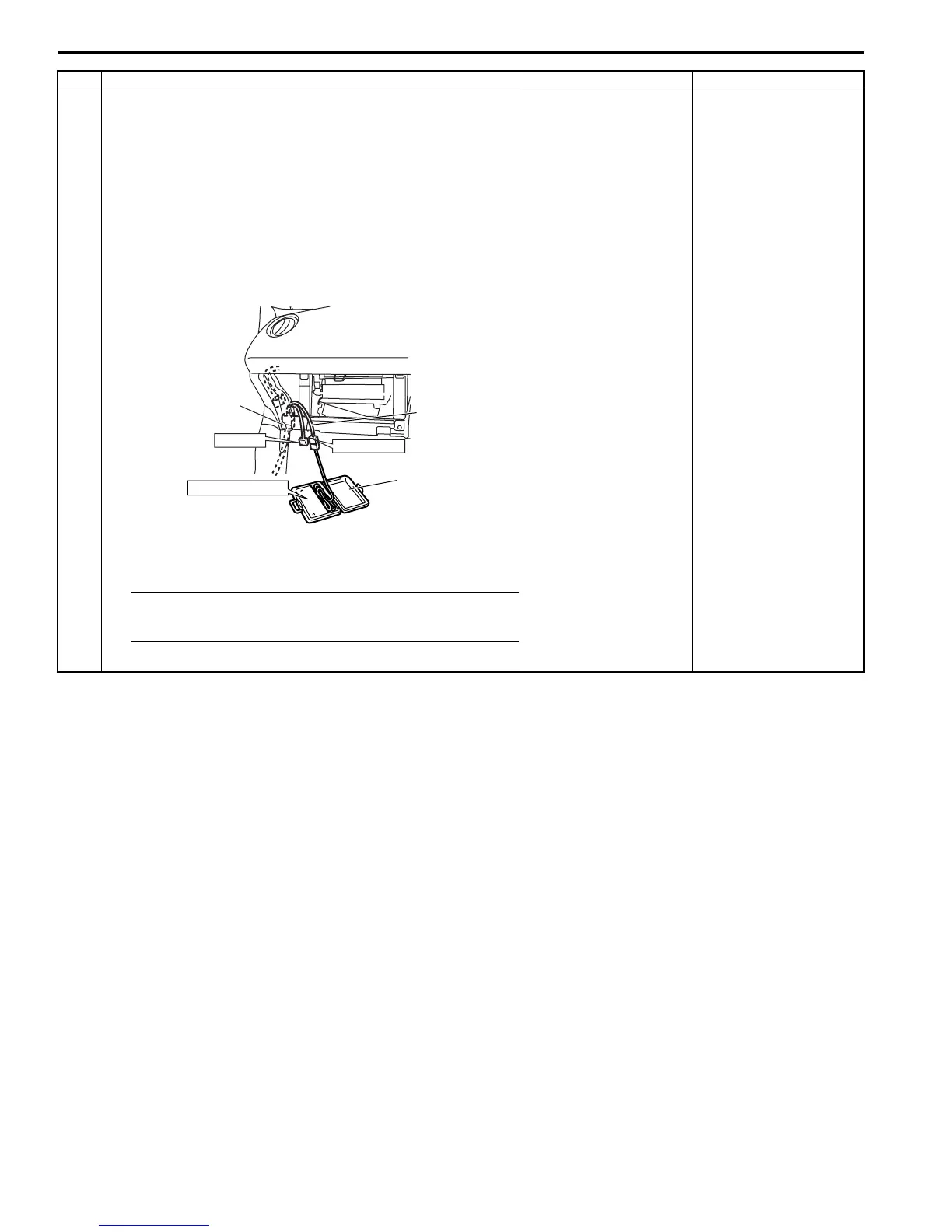

I4RS0A820022-01
To Next Page
