Air Bag System: 8B-55
2 1) With ignition switch OFF, disconnect “L32” connector
located near the glove box.
2) Check proper connection to floor harness connector at
terminal “L32-3” and “L32-4”.
3) If OK, then connect special tools (B) and (C) to “L32”
connector disconnected in Step 1).
Special tool
(B): 09932-75010
(C): 09932–77320
4) Check SDM DTC.
NOTE
At this time, DTC B1031 may be output, but it is
not related to this check.
With ignition switch ON, is DTC B1044 indicated?
Go to Step 3. “BLU/RED” or “YEL/
RED” circuit shorted to
power supply circuit in
instrument panel
harness.

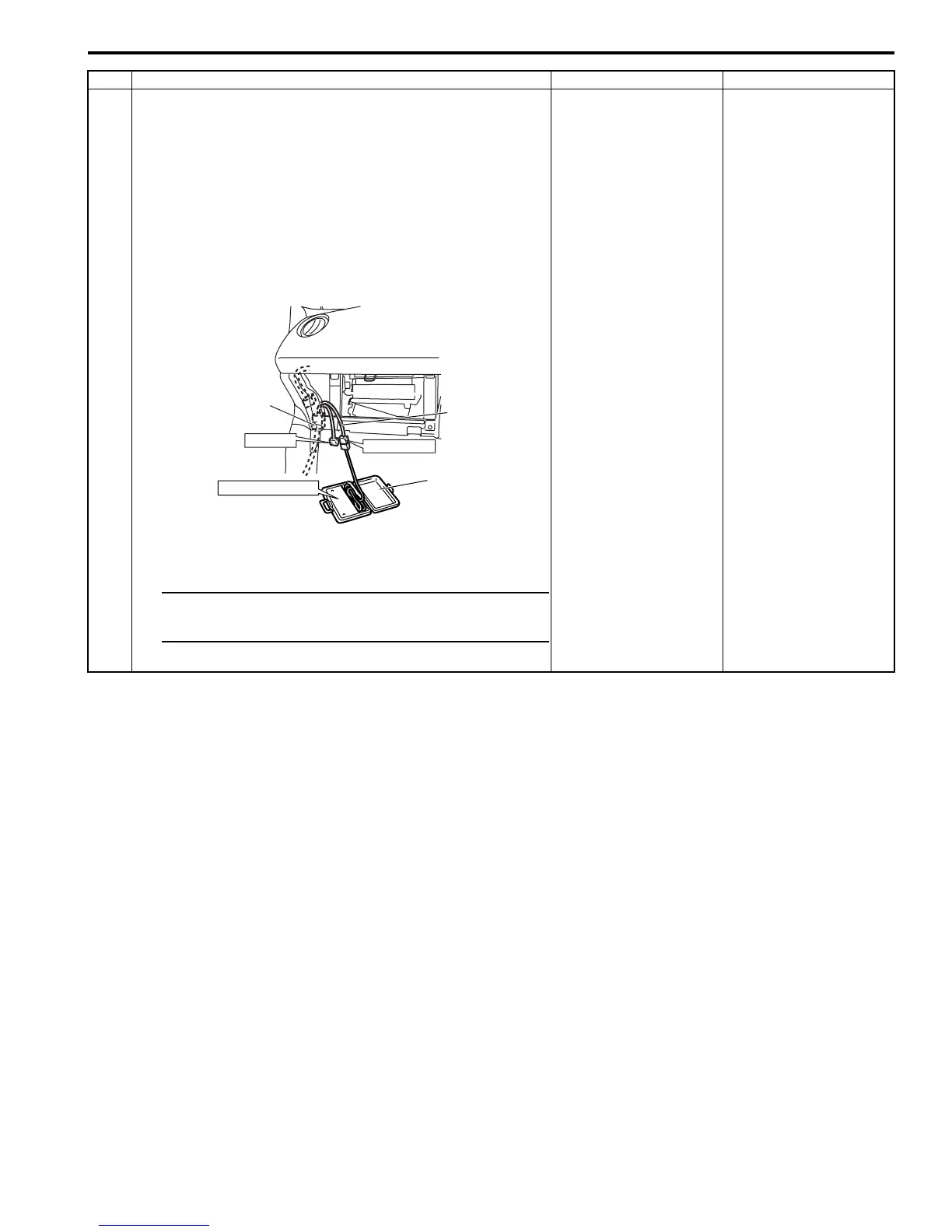

Step Action Yes No
(B)
(C)
"L32"
STEERING WHEEL
DRIVER
PASSENGER
I4RS0A820022-01
To Next Page
