8B-68 Air Bag System:

CAUTION

• Be sure to perform “Air Bag Diagnostic System Check” before starting diagnosis according to flow.

• When measurement of resistance or voltage is required in this flow, use a tester along with a correct

terminal adapter from special tool (Connector test adapter kit).

• When a check for proper connection is required, refer to “Inspection of Intermittent and Poor

Connections”.

• If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace

the wire harness, connector and terminal as an assembly.

DTC Will Set when

The combined resistance of the side-air bag (inflator) module (driver or passenger), harness wiring and connector

terminal contact is below a specified value for specified time.

Flow Test Description

Step 1: Check whether malfunction is in side-air bag (inflator) module.

Step 2: Check side-air bag initiator circuit in floor harness.

Step 3: Check side-air bag initiator circuit in seat harness.

DTC Troubleshooting

Step Action Yes No

1 1) With ignition switch OFF, disconnect side-air bag

(inflator) module connector under front seat cushion.

2) Check proper connection to driver or passenger side-air

bag (inflator) module at terminals in “L25” or “L30”

connector.

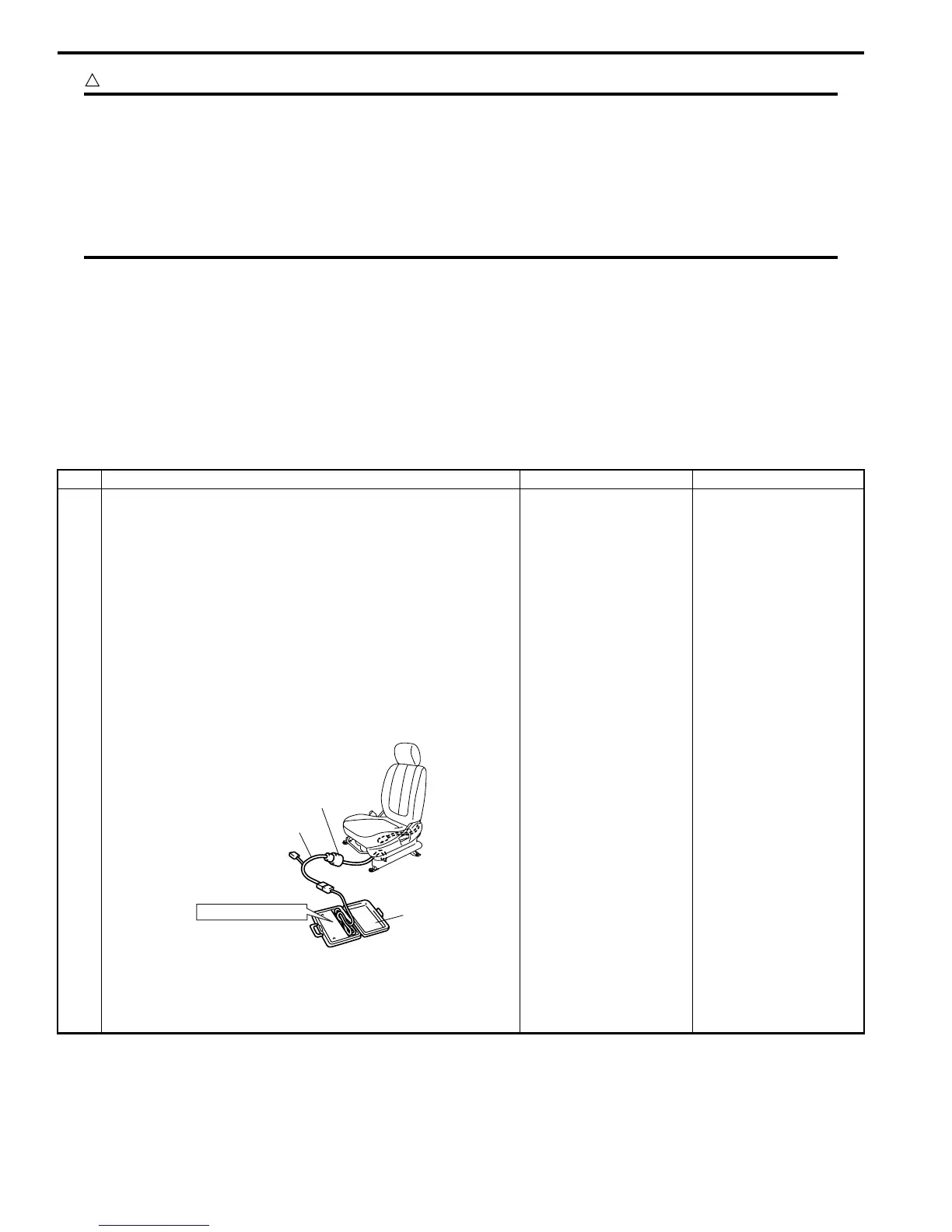

3) If OK, then connect special tools (B) and (C) to side-air

bag (inflator) module connector disconnected at the Step

Special tool

(B): 09932–75010

(C): 09932–78340

4) Check SDM DTC.

With ignition switch ON, is DTC B1062 or B1066 still

indicated?

Go to Step 2. Go to Step 3.

“L25”, “L30”

(C)

(B)

STEERING WHEEL

I4RS0A820032-01
