Suzuki SWIFT 2005 User Manual

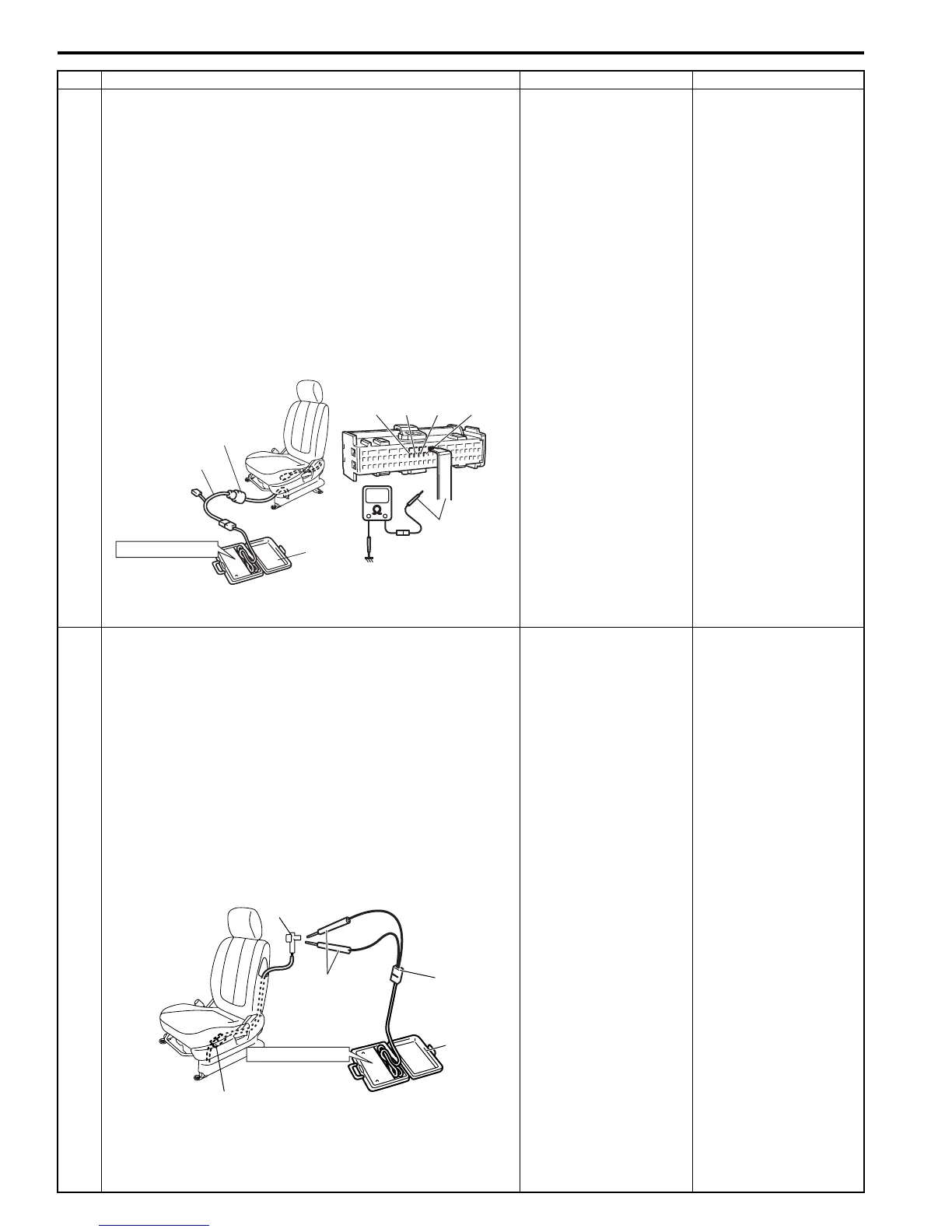

8B-72 Air Bag System:
2 1) With ignition switch OFF, disconnect special tools and
SDM connector “L29”.
2) Release shorting bar in SDM connector inserting release
tool (1) included in special tool (A).
3) Measure resistance between “L29-11” and body ground,
and between “L29-12” and body ground (for DTC
B1063) or “L29-13” and body ground, and between “L29-
14” and body ground (for DTC B1067) with connected
special tools (B) and (C).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78340
Is resistance infinity?
Substitute a known-
good SDM and recheck.
DTC B1063: Repair
short from “GRY/RED”
or “GRY” wire circuit to
ground in floor harness.
DTC B1067: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
ground in floor harness.
3 1) With ignition switch OFF, disconnect special tools (B)
and (C) then reconnect connector “L25” or “L30”.
2) Disconnect side-air bag (inflator) module connector (1)
from side-air bag (inflator) module.
3) Check proper connection to side-air bag (inflator)
module at terminal in connector.
4) If OK, then connect special tools (A), (B) and (C) to side-
air bag (inflator) connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
5) Check SDM DTC.
With ignition switch ON, is DTC B1063 or B1067 still
indicated?
DTC B1063: Repair
short from “GRY/RED”
or “GRY” wire circuit to
ground in seat harness.
DTC B1067: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
ground in seat harness.
Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
Step Action Yes No
"L29-12""L29-13""L29-14""L29-11"
(A)
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I7RS0A820022-01
1
“L25”, “L30”
STEERING WHEEL
(B)
(C)
(A)
I4RS0A820034-01
