Air Bag System: 8B-85
DTC Troubleshooting
Step Action Yes No
1 1) With ignition switch OFF, remove rear side upper trim of
driver or passenger side and disconnect side curtain-air
bag (inflator) module connector.
2) Check proper connection to side curtain-air bag (inflator)
module at terminals in “L18” or “L41” connector.
3) If OK, then connect special tools (A), (B) and (C) to side
curtain-air bag (inflator) module connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM DTC.
With ignition switch ON, is DTC B1361 or B1365 still
indicated?
Go to Step 2. Replace side curtain-air
bag (inflator) module
referring to “Side
Curtain-Air Bag
(Inflator) Module
Removal and
Installation”.

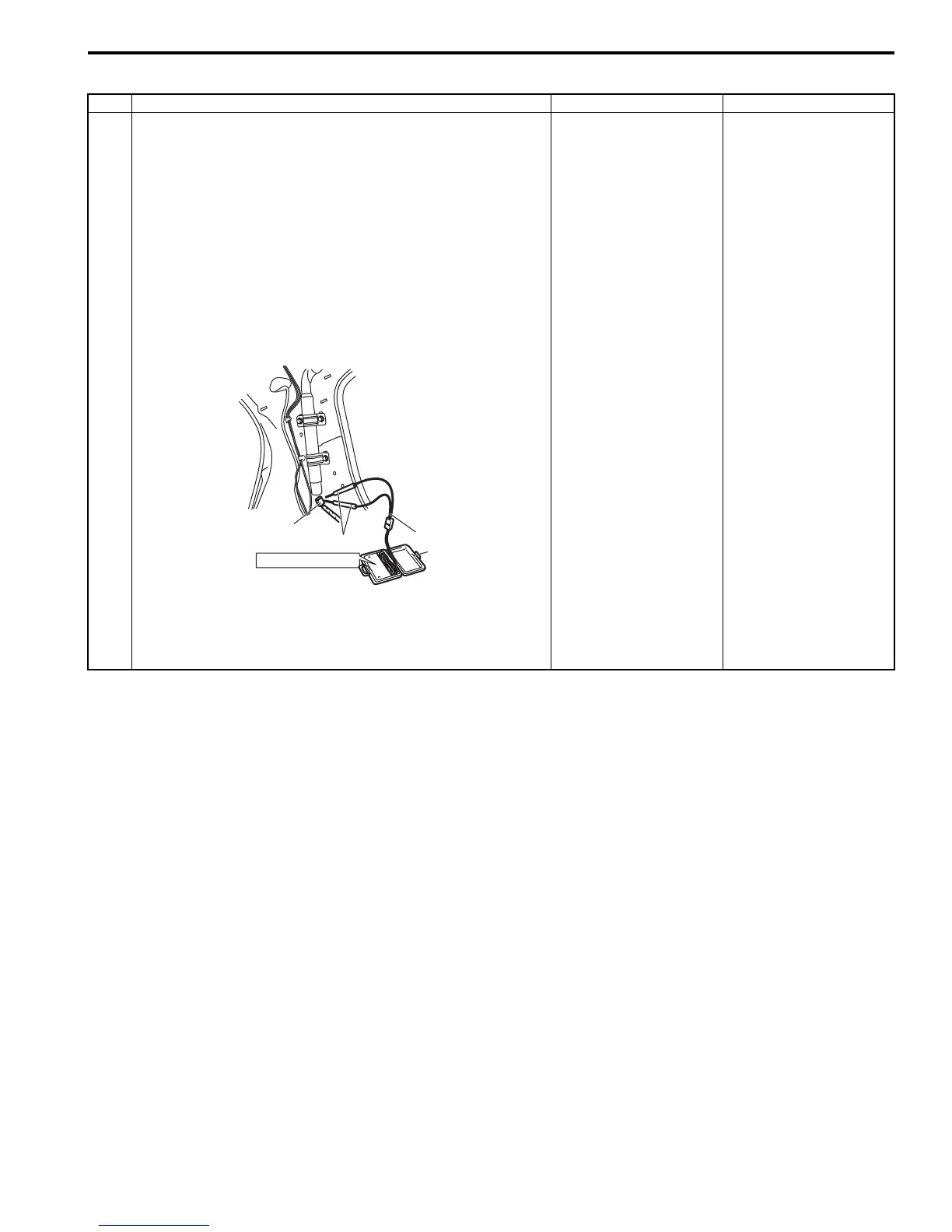

STEERING WHEEL
(B)
(C)
(A)
"L18", "L41"
I7RS0A820032-04
To Next Page
