9A-35 Wiring Systems:

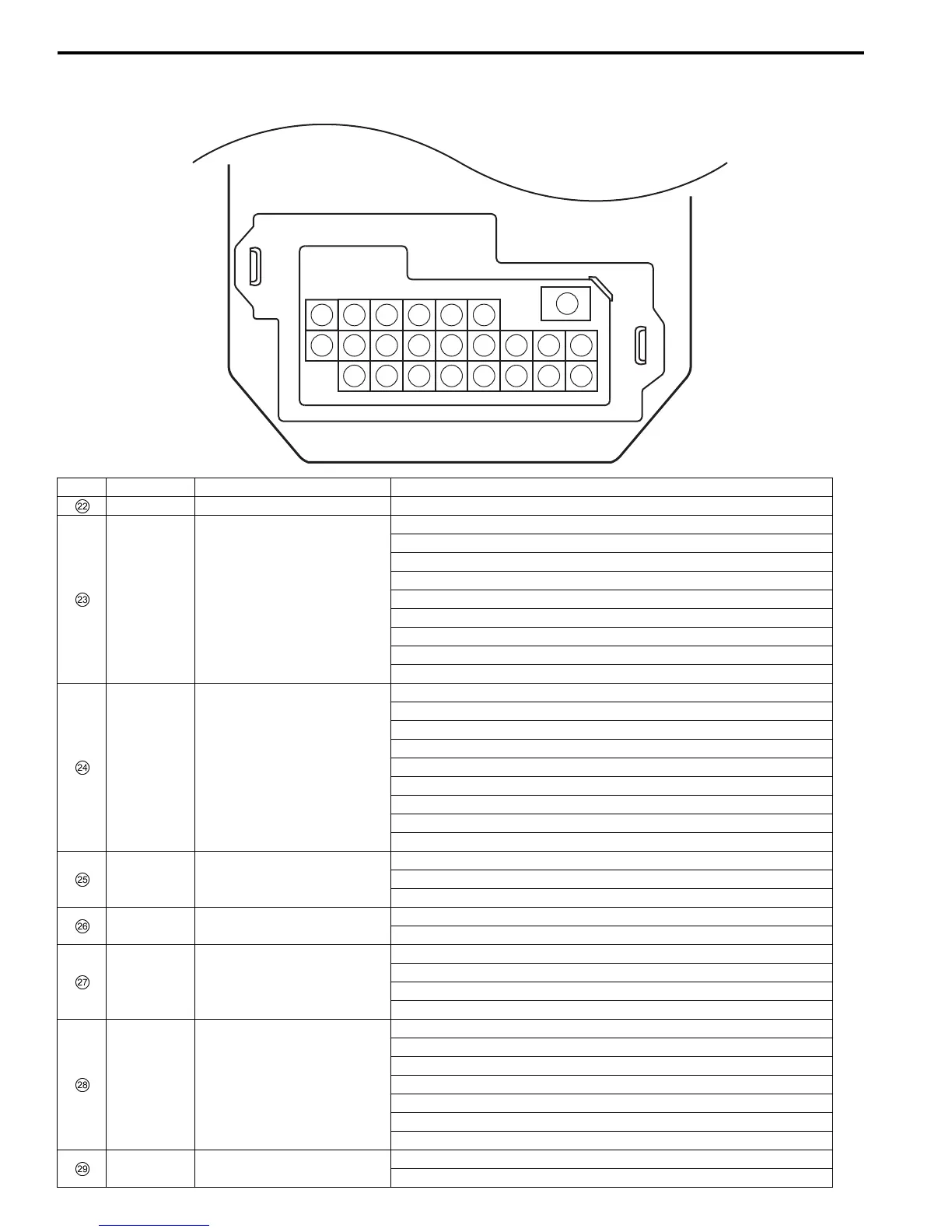

Individual Circuit Fuse Box No. 2 (In J/B)
S7RS0B910D006
22
28
23
29
37
24
30
38
25
31
39
26
32
40
27
33
41
34
42
35
43
36
44
45
USE THE DESINGNATED FUSES AND RELAYS ONLY.
*1: DEICER / RR FOG *2: DIESEL / HID L *3: MTA / HID R
I5RS0B910919-02
No. Fuse Description on the cover Protected circuit
BLANK BLANK BLANK
15 A IG COIL
Current sensor
ECM
Fuel pump relay
Generator
Heated oxygen relay #1
Heated oxygen relay #2
ICM
IG coil #1
IG coil #2
10 A BACK
Auto A/C unit
Back-up light switch (M/T)
Air intake control actuator
HVAC control switch
Headlight leveling switch
Headlight leveling actuator (R)
Headlight leveling actuator (L)
KLS ECM
Transaxle range sensor (A/T)
10 A METER
BCM
COMB meter
Flasher relay
15 A ACC 1
BCM
Power mirror
15 A ACC 2
ACC socket or Cigar lighter
Audio
Multi information display
KLS ECM
15 A WIPER
COMB switch
DRL controller
Rear washer motor
Rear wiper motor
Rear wiper relay
Windshield washer motor
Windshield wiper motor
10 A IG1 SIG
A/T relay (A/T)
Power steering control module
