DTC Troubleshooting
NOTE
• When measuring circuit voltage, resistance and/or pulse signal at ECM connector, connect the
special tool to ECM and/or the ECM connectors referring to “Inspection of ECM and Its Circuits”.
• Upon completion of inspection and repair work, perform “DTC Confirmation Procedure” and
confirm that the trouble has been corrected.
Step Action Yes No
1 Was “Engine and Emission Control System Check”
performed?
Go to Step 2. Go to “Engine and
Emission Control
System Check”.
2 Throttle actuator circuit check
1) Disconnect connectors from electric throttle body and
ECM with ignition switch turned OFF.
2) Check for proper connection of electric throttle body and
ECM connectors at “LT GRN/RED” wire, “LT GRN/BLK”
wire. “C37-45” and “C37-44” terminals.
3) Turn ON ignition switch.
4) Measure voltage between “LT GRN/RED” wire terminal
of electric throttle body connector and engine ground,
between “LT GRN/BLK” wire terminal of electric throttle
body connector and engine ground.
Is voltage 0 V?
Go to Step 3. “LT GRN/RED” wire
and/or “LT GRN/BLK”
wire is shorted to power
circuit.
3 Throttle actuator circuit check
1) Turn OFF ignition switch.
2) Measure resistance between “LT GRN/RED” wire
terminal of electric throttle body connector and engine
ground, between “LT GRN/BLK” wire terminal of electric
throttle body connector and engine ground.
Is resistance infinity?
Go to Step 4. “LT GRN/RED” wire
and/or “LT GRN/BLK”
wire is shorted to
ground circuit.
4 Throttle actuator circuit check
1) Check throttle actuator referring to “Throttle Actuator
Performance Check” under “Electric Throttle Body
Assembly On-Vehicle Inspection in Section 1C”.
Is check result satisfactory?
Substitute a known-
good ECM and recheck.
Replace electric throttle
body

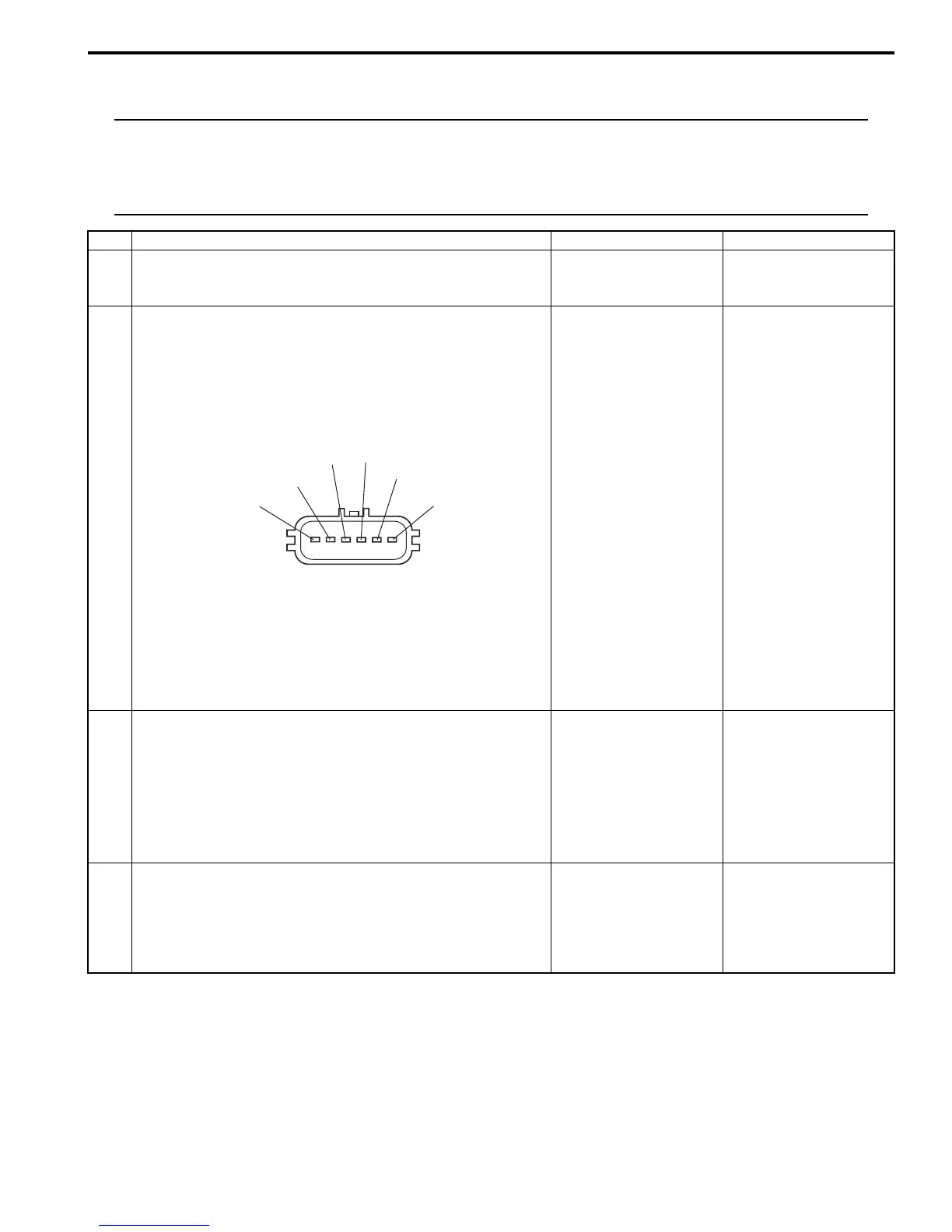

"GRN"
"RED"
"WHT"
"BLK"
"LT GRN/BLK"
"LT GRN/RED"
I4RS0B110022-02
To Next Page
