Engine Mechanical: 1D-18
17) Disconnect right and left drive shaft joints from
differential gear referring to “Front Drive Shaft
Assembly Removal and Installation in Section 3A”.
NOTE
For engine and transaxle removal, it is not
necessary to remove drive shafts from
steering knuckle.
18) Remove exhaust No.1, No.2 and center pipes
referring to “Exhaust Pipe and Muffler Removal and
Installation in Section 1K”.
19) Support engine assemble by using chain hoist.
20) Remove suspension frame referring to “Front
Suspension Frame, Stabilizer Bar and/or Bushings
Removal and Installation in Section 2B”.
21) Remove engine rear mounting from engine rear
mounting No.1 bracket.
22) Support engine and transaxle with jack, and then
remove chain hoist.

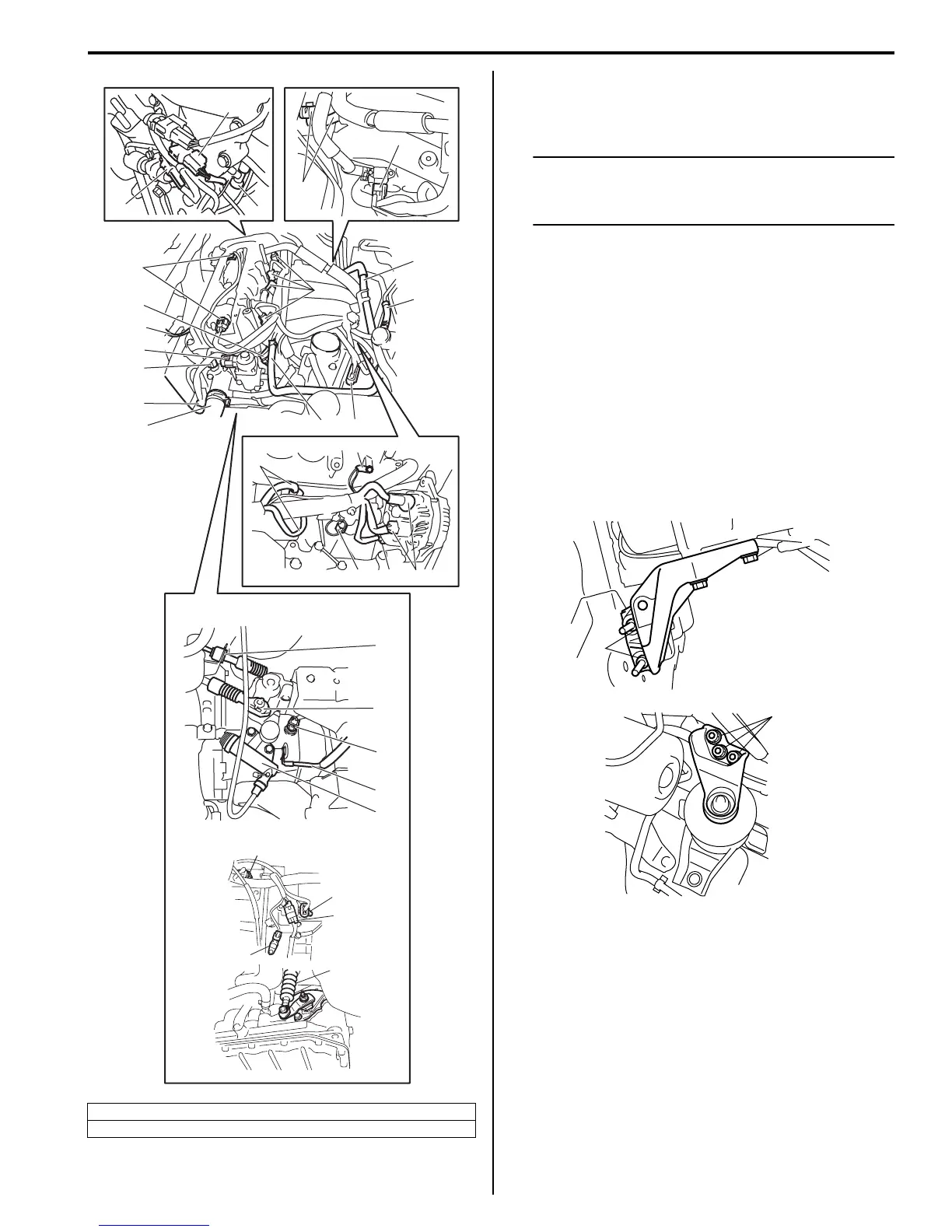

23) Remove engine left mounting bracket nuts (1) and
engine right mounting nuts (2).
[A]: M/T model
[B]: A/T model
