1F-3 Engine Cooling System:

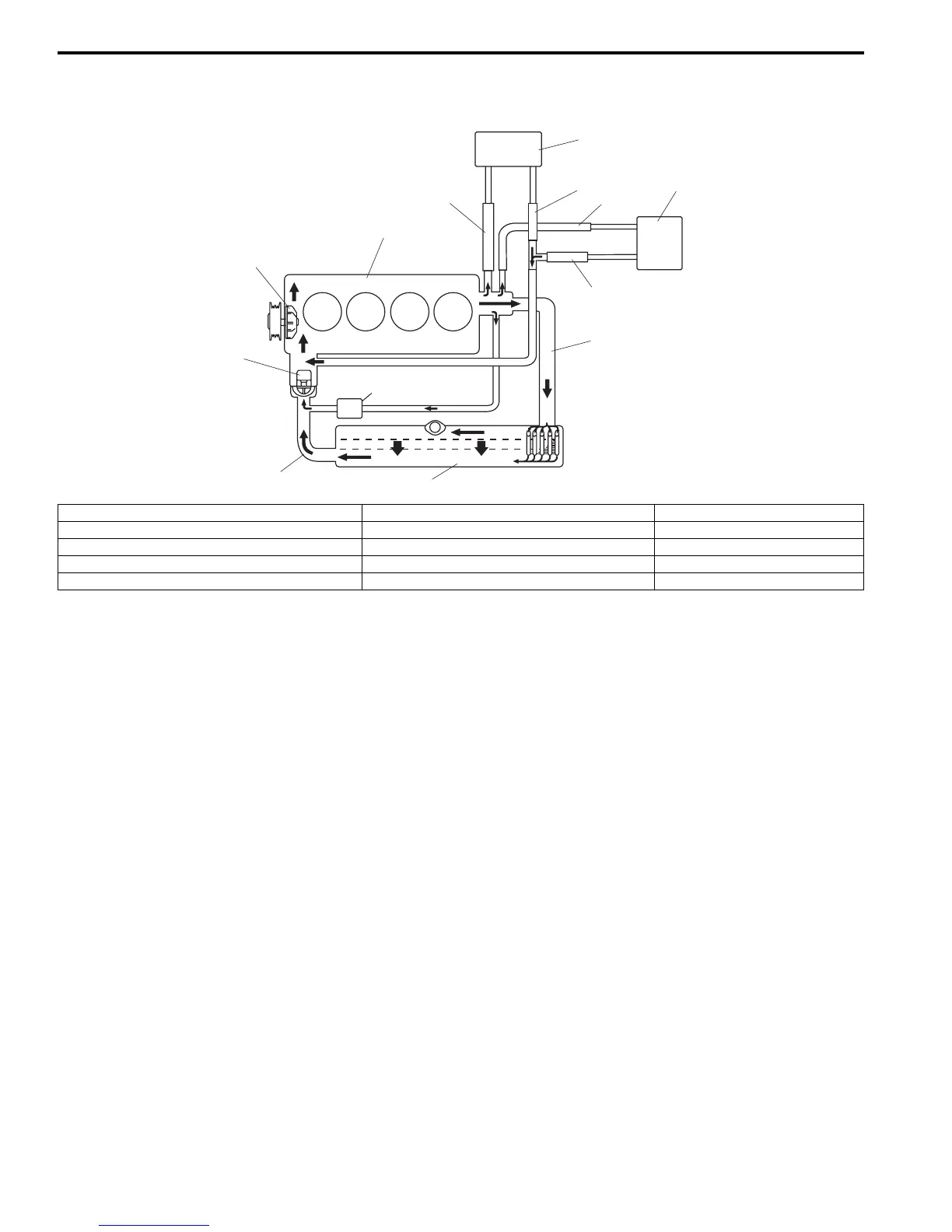

When coolant is warmed up to normal temperature and the thermostat opens, coolant passes through the radiator
core to be cooled as follows.
11
10
3
7
4
9
8
6
5
2
12
1
13
I6RS0C160002-01
1. Radiator inlet hose 6. Water pump 11. Heater core
2. Radiator outlet hose 7. Throttle body 12. Radiator
3. Throttle body inlet hose 8. Engine 13. Heat exchanger
4. Throttle body outlet hose 9. Heater core inlet hose
5. Thermostat 10. Heater core outlet hose
