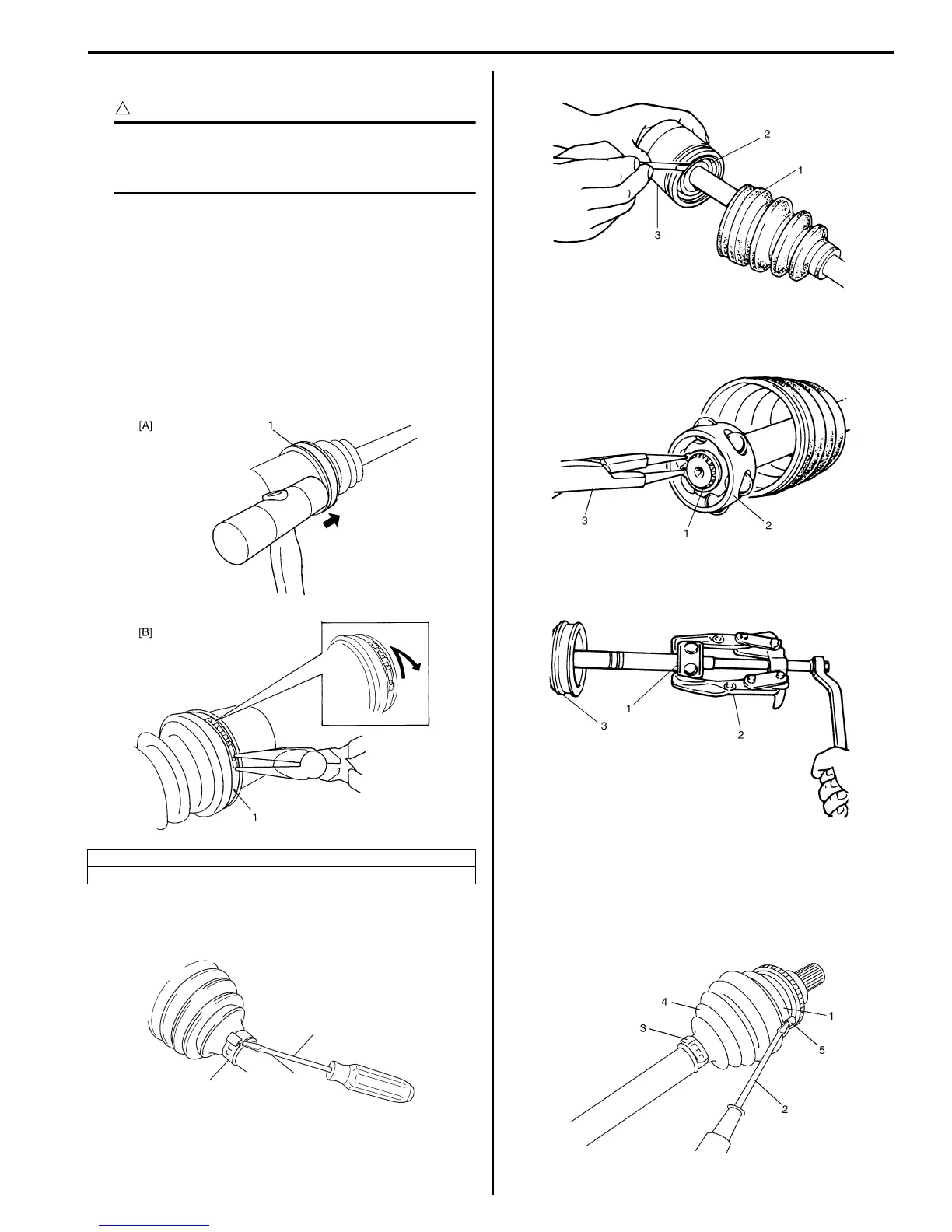

Drive Shaft / Axle: 3A-7
DOJ
CAUTION
!
Disassembly of wheel side joint is not
allowed. If any noise or damage exists in it,
replace it as assembly.
1) Remove differential side (or center shaft side) boot
big band (1) as follows.
• For boot big band without joint:
Remove boot big band by tapping boot and band
with plastic hammer. If it is hard to remove boot
big band, cut it using a nipper or an iron saw with
care not to damage joint housing.
• For boot big band with joint:
Draw hooks of boot big band together and remove
band.
2) Remove differential side (or center shaft side) boot
small band (1) using flat end rod (2) or the like.
3) Side boot (1) toward the center of shaft and remove
snap ring (2) from outer race, and then take shaft out
of outer race (3).
4) Wipe off grease and remove circlip (1) used to fix
cage (2) by using snap ring pliers (3).
5) Draw away cage (1) by using bearing puller (2), and
remove boot (3) from shaft.
6) Pull out differential side (or center shaft side) boot
from shaft.
7) Undo caulking (5) of wheel side boot big band (1)
and small band (3) using flat end rod (2) or the like,
then pull out wheel side boot (4) from shaft.
[A]: For boot big band without joint
[B]: For boot big band with joint
I4RH0A310004-01
2
1
I5RS0B310005-01
I2RH01310012-01
I5RS0B310006-01
I2RH01310014-01
I4RS0A310006-01
