4C-10 Rear Brakes:

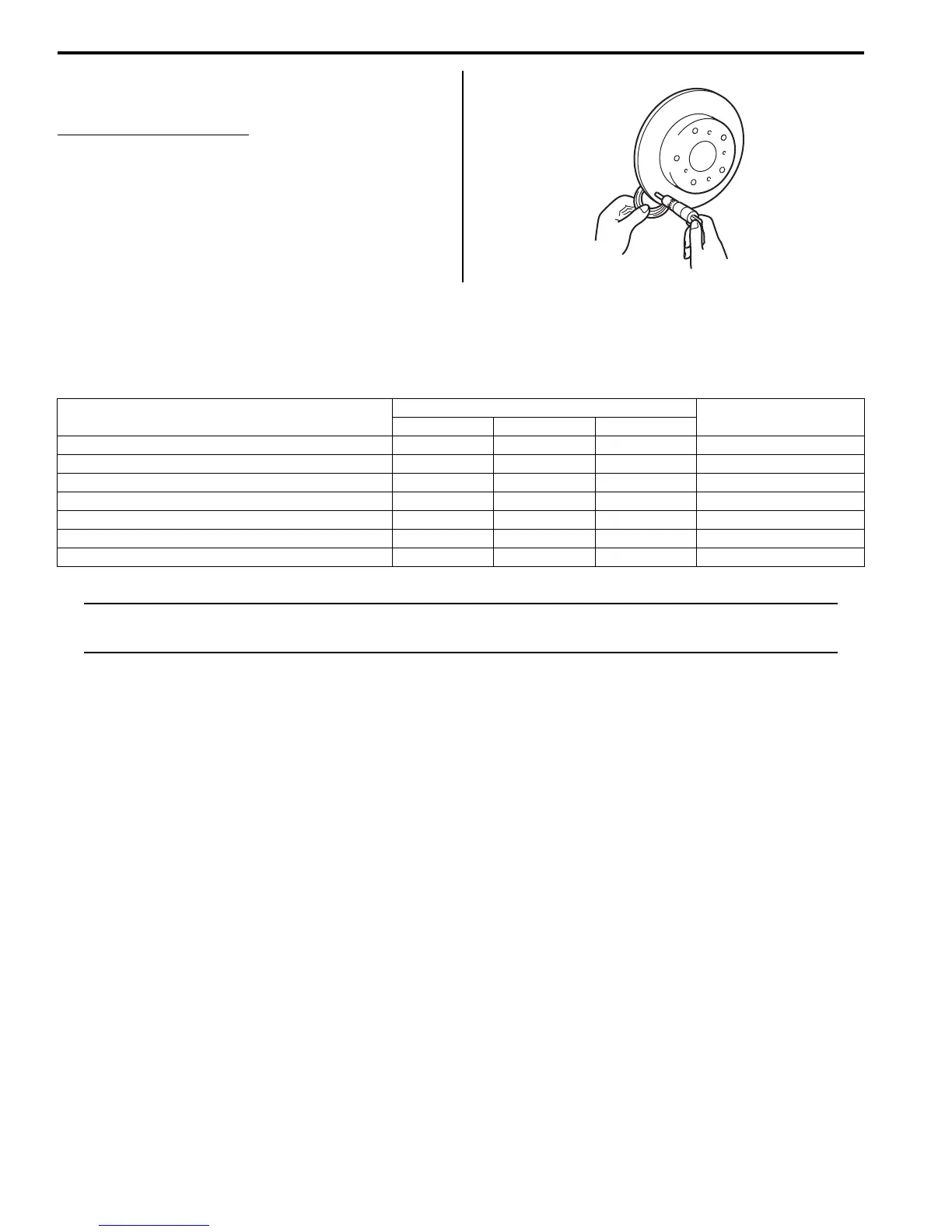

• Using micrometer, measure thickness of brake disc.
If limit value is exceeded, replace brake disc.
Rear brake disc thickness
Standard: 9 mm (0.354 in.)
Limit: 8 mm (0.315 in.)
Specifications
Tightening Torque Specifications
S7RS0B4307001
NOTE
The specified tightening torque is also described in the following.
“Rear Disc Brake Components”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
I6RS0B431032-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Caliper pin bolt 23 2.3 17 )
Wheel bolt 85 8.5 61.5 ) / ) / )
Brake caliper carrier bolt 60 6.0 43.5 )
Flexible hose joint bolt 23 2.3 17.0 )
Parking nut 27 2.7 19.5 )
Brake pipe flare nut 16 1.6 12.0 )
Caliper carrier bolt 60 6.0 43.5 )
