Electronic Stability Program: 4F-33

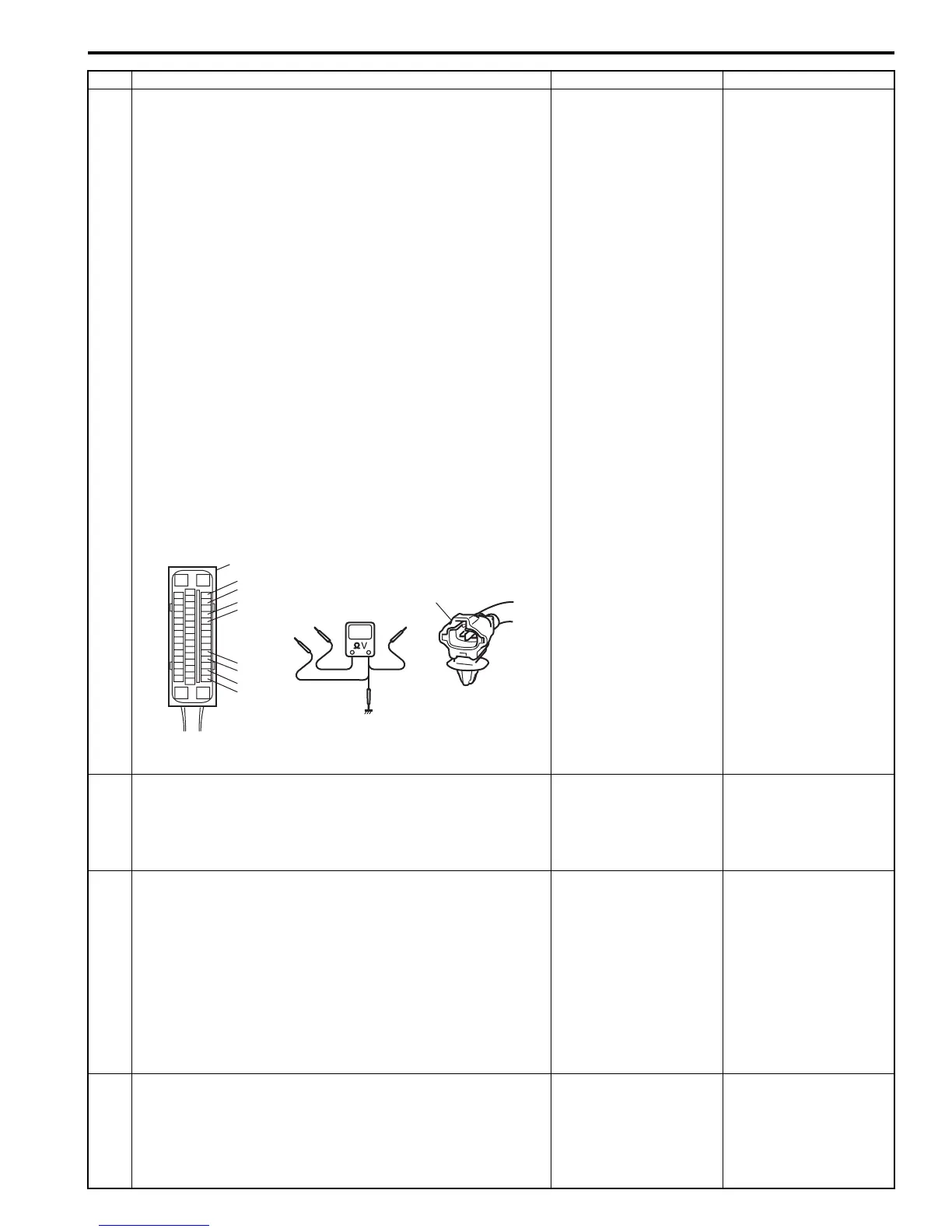

2 Check wheel speed sensor circuit
1) Turn ignition switch OFF.
2) Disconnect connector from ESP® control module and
applicable wheel speed sensor coupler.
3) Check for proper connection of ESP® control module
and wheel speed sensor coupler.
4) If connections are OK, check wheel speed sensor circuit
for the following.
• Resistance of both ESP® control module connector
(1) terminals a pair of applicable sensor terminals is
no continuity (circuit short check)
• Resistance of applicable sensor terminal of ESP®
control module connector and vehicle body ground is
no continuity (ground short check)
• Resistance of applicable sensor terminal of ESP®
control module connector and corresponding terminal
of wheel speed sensor connector (2) in main harness
(for front sensor) or floor harness (for rear sensor) is
continuity (continuity check)
• Voltage of applicable sensor terminal of ESP® control
module connector and vehicle body ground is 0 V with
ignition switch turned ON (power short check)
Are they in good condition?
Go to Step 3. Repair or replace
defective circuit.
3 Check wheel speed sensor
1) Remove applicable wheel speed sensor.
2) Check sensor for damage or foreign material attached.
Is it in good condition?
Go to Step 4. Clean, repair or replace.
4 Check wheel encoder
1) Check front and/or rear wheel encoder for the following
(remove front drive shaft and/or rear wheel hub
assembly):
• Encoder surface neither crack nor damaged
• No foreign material being attached
• Encoder not being eccentric
• Wheel bearing free from excessive play
Are they in good condition?
Go to Step 5. Clean, repair or replace
front wheel bearing and/
or rear wheel hub
assembly.
5 Check wheel speed sensor installing condition
1) Install wheel speed sensor to knuckle.
2) Tighten sensor bolt to specified torque and check that
there is no clearance between sensor and knuckle.
Is it OK?
Go to Step 6. Replace wheel speed
sensor.
Step Action Yes No
1
2
“E85-2”
“E85-3”
“E85-5”
“E85-6”
“E85-11”
“E85-12”
“E85-14”
“E85-15”
I6RS0B460017-02
