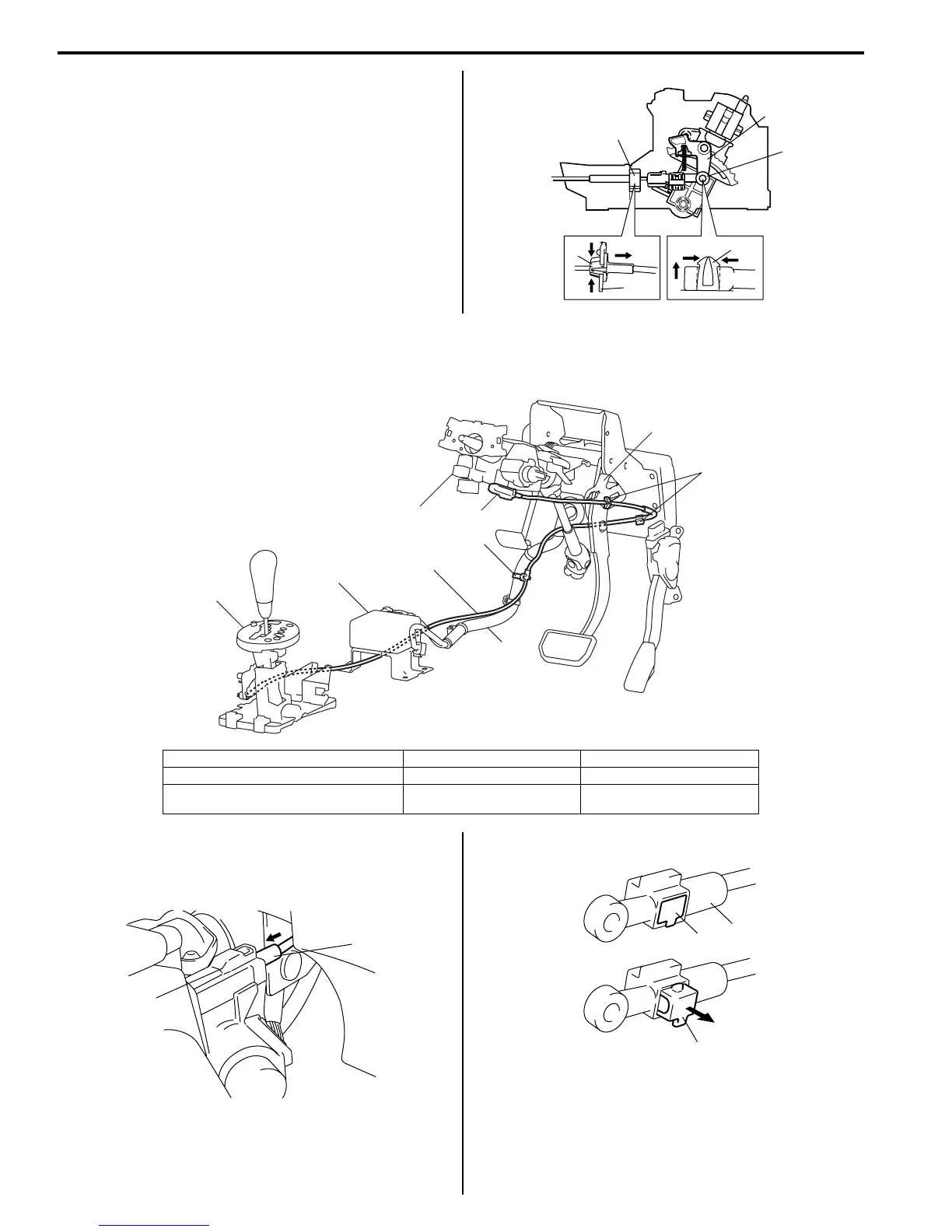

5A-94 Automatic Transmission/Transaxle:
5) Turn ignition switch to LOCK position.
6) Remove parking brake cover and console box.
7) Detach cable end (1) from interlock cam (2) while
pressing claws (3) of interlock cam boss.
At this time, be careful not to cause damage to its
claws.
Detach cable casing cap (4) from selector bracket
(5) while pressing check hook.
8) Remove interlock cable.
Installation
1) Lay interlock cable to its original cabling route.
2) Turn ignition switch to ACC position.
3) Insert cable casing cap (1) into key cylinder cover (2)
securely.
4) Pull out lock button (1) of selector side cable end (2).
4
5
3
1
2
4
I4RS0A510054-01
1
2
3
4
5
6
7
8
2
I6RS0C510013-01
1. Key interlock cable 4. Key cylinder cover 7. Brake switch bracket
2. Clamp 5. Select lever assembly 8. Wiring harness
3. Steering lock assembly / Steering lock unit
(Keyless start model)
6. EPS control module 9. Marking
1
2
I2RH01510085-01
1
1
2
I2RH01510086-01
