5A-118 Automatic Transmission/Transaxle:

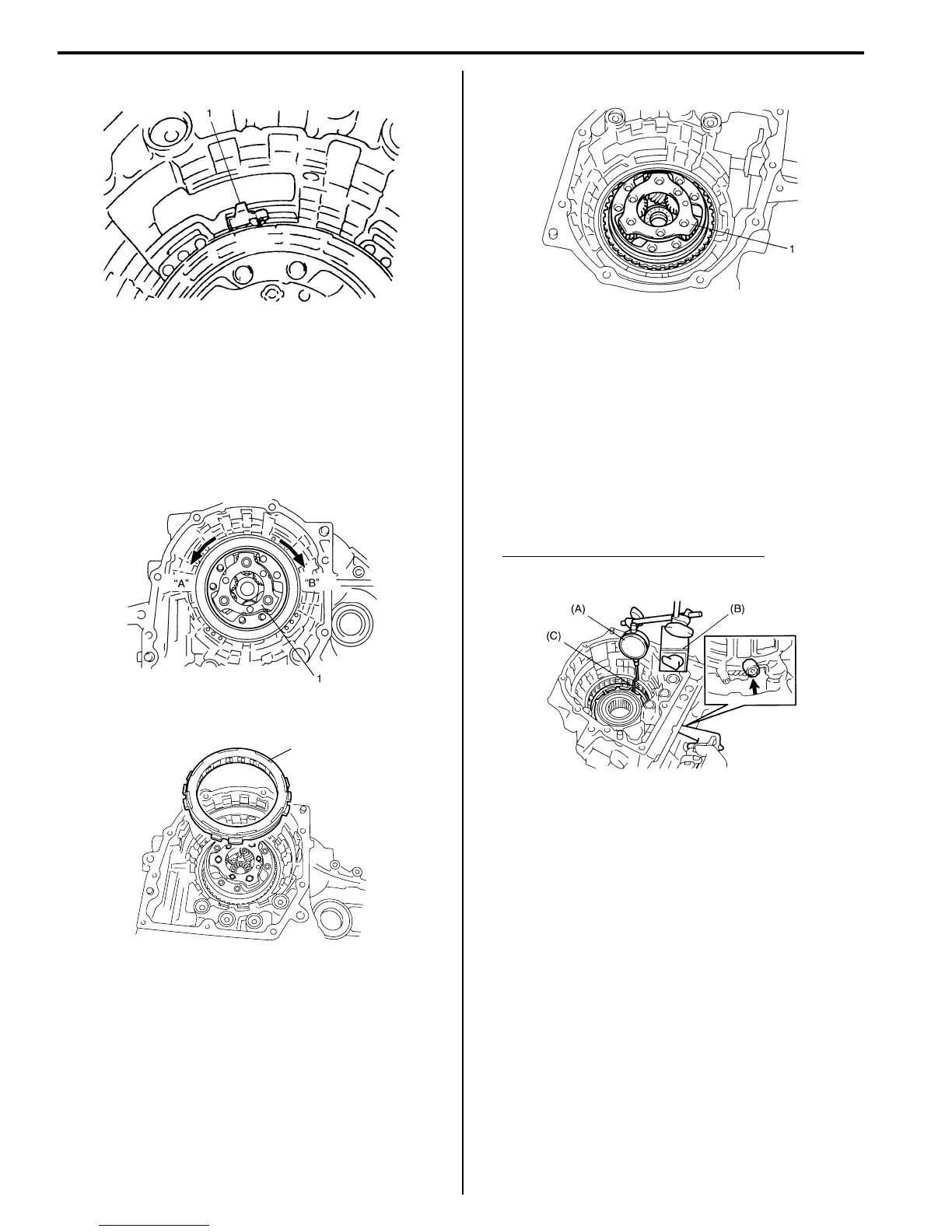

55) Remove one-way clutch outer race retainer (1).
56) Check one-way clutch No.2 as follows.
• Ensure planetary carrier (1) rotates only in
counterclockwise direction “A”, never in clockwise
direction “B”.
• If the planetary carrier rotates both ways or does
not rotate either way, one-way clutch No.2
assembly will need to be replaced with new one-
way clutch No.2 assembly.
57) Remove one-way clutch No.2 assembly (1).
58) Remove planetary gear assembly (1).
59) Measure 1st and reverse brake piston stroke.
If piston stroke exceeds specified value,
disassemble, inspect and replace discs and plates.
• Using special tool, measure 1st and reserve brake
piston stroke when compressed air (400 – 800
kPa, 4 – 8 kg/cm
2
, 57 – 113 psi) is blown through
oil hole.
Special tool
(A): 09900–20607
(B): 09900–20701
(C): 09952–06020
1st and reverse brake piston stroke
Standard: 0.79 – 1.49 mm (0.031 – 0.059 in.)
