Automatic Transmission/Transaxle: 5A-131
Reassembly
Reverse disassembly procedure for assembly, noting the
following points.
• Before assembling, apply automatic transaxle fluid to
component parts.
• Replace O-rings and seal ring with new ones.

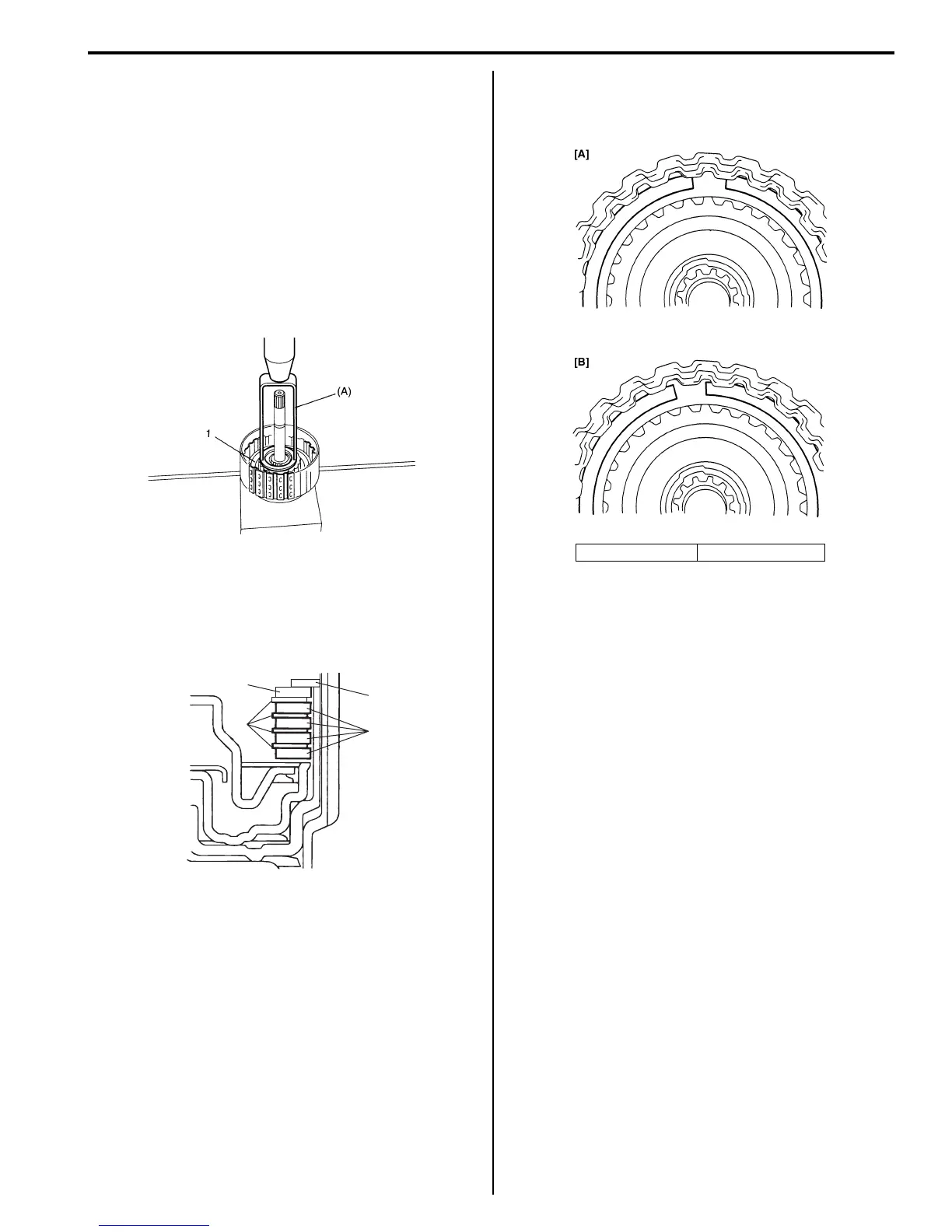

• Do not damage forward clutch return spring
subassembly and balancer (1) by pressing forward
clutch return spring subassembly passing through its
original installing position over 1.5 mm (0.059 in.).
Special tool
(A): 09926–97610
• Apply A/T fluid to forward clutch separator plates (1),
discs (2) and retaining plate (3).
• Install forward clutch separator plates (1), discs (2)
and retaining plate (3), then snap ring (4) to forward
clutch drum.
• Install forward clutch plate snap ring so that its both
ends would be positioned in correct locations as
shown in figure.
I2RH0B510180-01
4
1
2
3
I5RW0C510062-01
[A]: Correct [B]: Incorrect
I2RH0B510188-01
