Automatic Transmission/Transaxle: 5A-153

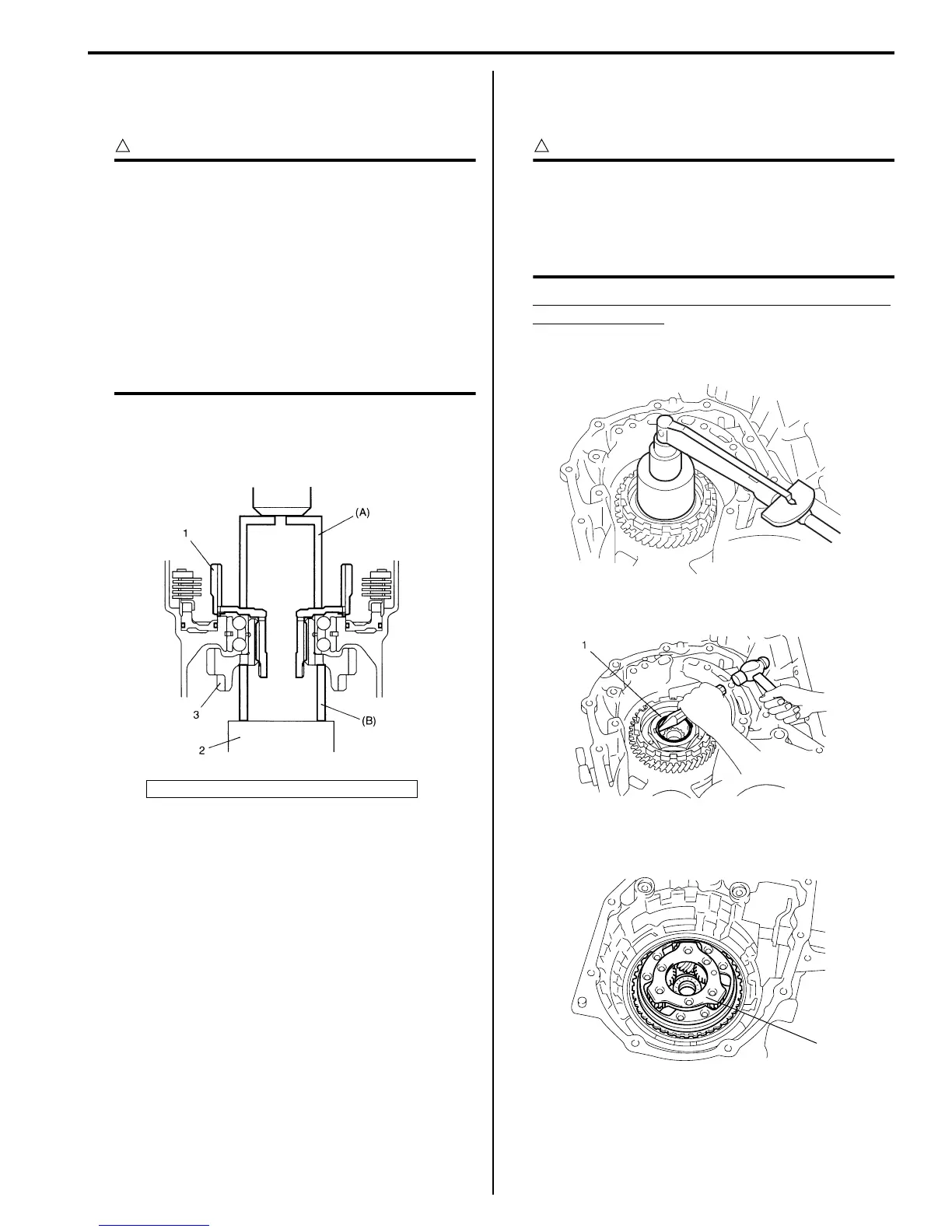

16) Install new planetary ring gear subassembly (1) to
reduction drive gear (3) by using special tools and
hydraulic press.
CAUTION
!
• Do not reuse planetary ring gear
subassembly. Otherwise it may cause
damage to planetary gear unit and/or
reduction gears.
• Do not use transaxle case as groundwork
to press fit planetary ring gear
subassembly.
• Do not give load more than 20 kN (2000 kg,
4410 lb) with hydraulic press. Otherwise, it
may result in damaging reduction drive
gear bearing.
Special tool
(A): 09951–18210
(B): 09944–78210
17) Using a small torque wrench, while turning to
counter drive gear 100 rpm and measure the
preload.
CAUTION
!
• Do not tighten nut over the specifications
so that reduction drive gear nut would not
be broken.
• Carry out this procedure on rubber mat in
order not to damage transaxle case.
Reduction drive gear bearing preload measured
as starting torque
Standard: 0.05 – 0.35 N⋅m (0.5 – 3.5 kg-cm, 0.036
– 0.253 lb-ft)
18) Caulk reduction drive gear nut (1).
19) Apply A/T fluid to planetary gear assembly (1), then
fit it to planetary ring gear assembly.
2. Stand that can slightly lift transaxle case.
I2RH0B510272-01
I2RH0B510273-01
I2RH0B510274-01
1
I2RH0B510275-01
To Next Page
