5A-162 Automatic Transmission/Transaxle:

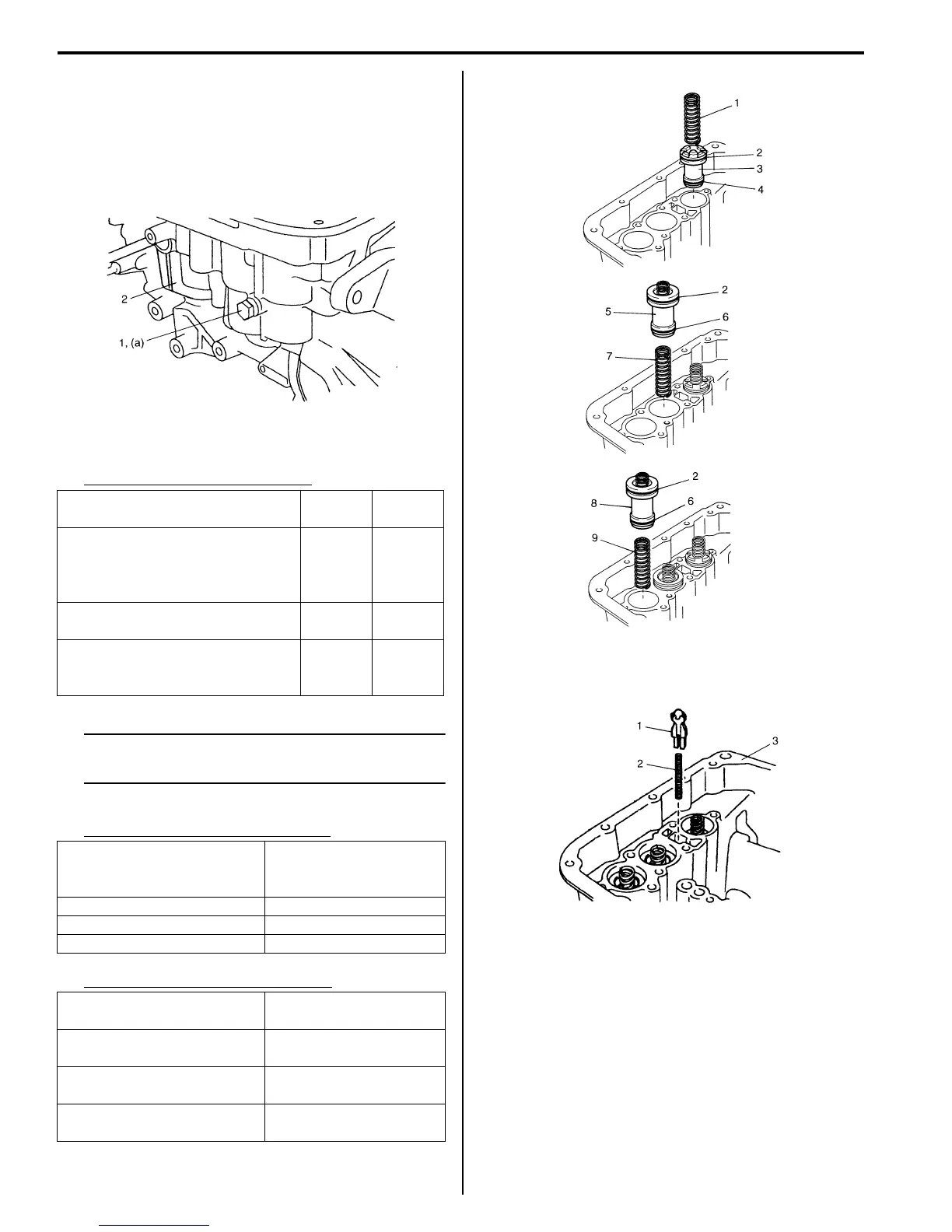

66) After applying A/T fluid to new O-ring, fit it to
transaxle case plug (1). Then install the transaxle
case plug to transaxle case (2).
Tightening torque
Transaxle case plug (a): 7.5 N·m (0.75 kgf-m, 5.5
lb-ft)
67) Install new O-rings to each accumulator piston and
apply A/T fluid to them.
Accumulator O-ring dimension
NOTE
Make sure that O-rings are not twisted or
caught when installing.
68) Install B1, C1, C2 accumulator pistons and springs.
Accumulator piston identification
Accumulator spring identification
69) After applying A/T fluid to cooler check valve (1) and
spring (2), install them to transaxle case (3).
O-ring name
Inside
diameter
Section
diameter
Large B1 accumulator O-ring (2)
Large C1 accumulator O-ring (2)
Large C2 accumulator O-ring (2)
– Above three O-rings are same.
29.4 mm
(1.16 in.)
2.6 mm
(0.10 in.)
Small B1 accumulator O-ring (4)
19.7 mm
(0.78 in.)
2.6 mm
(0.10 in.)
Small C1 accumulator O-ring (6)
Small C2 accumulator O-ring (6)
– Above two O-rings are same.
21.8 mm
(0.86 in.)
2.6 mm
(0.10 in.)
Piston name
Identification as
embossed letters on
piston
B1 accumulator piston (3) SB-1
C1 accumulator piston (5) S2C-1
C2 accumulator piston (8) S2C-2
Spring name
Color of identification
paint
B1 accumulator No.2
spring (1)
Pink
C1 accumulator No.2
spring (7)
Light blue
C2 accumulator No.2
spring (9)
Yellow
I2RH0B510317-01
I2RH0B510318-01
I2RH0B510319-01
