5B-20 Manual Transmission/Transaxle:

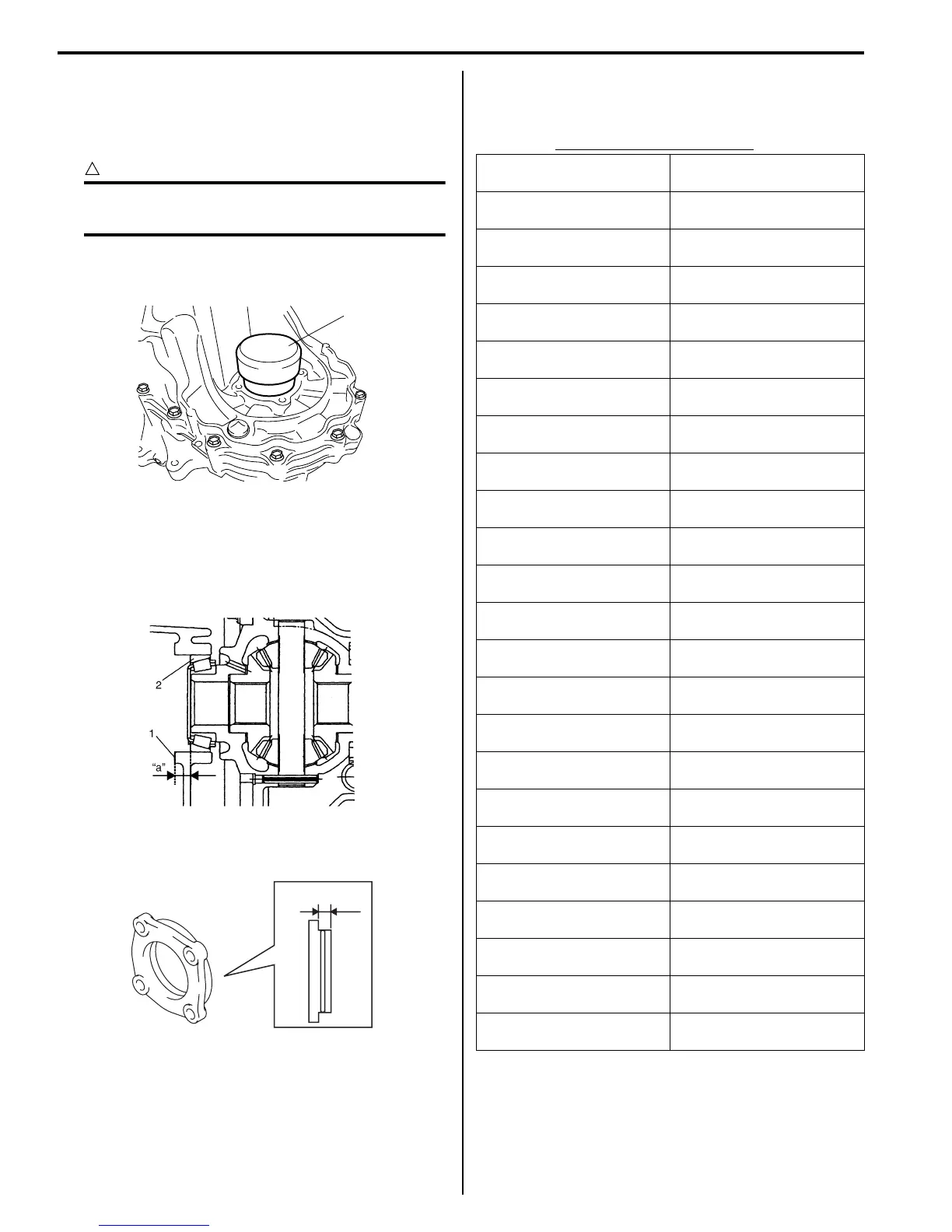

9) Install side bearing retainer as follows.
a) Install differential side bearing outer race to left
case and then tap and accustom outer race
using special tool and plastic hammer.
CAUTION
!
Do not drive in a race with hammer.
Driving it may cause to damage bearing.
Special tool
(A): 09926–27610
b) Select a shim of differential side bearing as
follows.
i) Measure depth “a” from left case (1) face to
side bearing outer race (2) using depth
gauge.
ii) Measure height “b” of side bearing retainer
with depth gauge.
iii) Calculate clearance a – b, and select
differential shim according to the following
table.
Bearing shim specification
(A)
I4RH01520053-01
I4RS0A520037-01
“b”
I4RS0A520038-01
Clearance “a” – “b”
Thickness of bearing
shim to be installed
0.636 – 0.665 mm
(0.0250 – 0.0261 in.)
0.75 mm (0.030 in.)
0.666 – 0.695 mm
(0.0262 – 0.0273 in.)
0.78 mm (0.031 in.)
0.696 – 0.725 mm
(0.0274 – 0.0285 in.)
0.81 mm (0.032 in.)
0.726 – 0.755 mm
(0.0286 – 0.0297 in.)
0.84 mm (0.033 in.)
0.756 – 0.785 mm
(0.0298 – 0.0309 in.)
0.87 mm (0.034 in.)
0.786 – 0.815 mm
(0.0310 – 0.0320 in.)
0.90 mm (0.035 in.)
0.816 – 0.845 mm
(0.0321 – 0.0332 in.)
0.93 mm (0.037 in.)
0.846 – 0.875 mm
(0.0333 – 0.0344 in.)
0.96 mm (0.038 in.)
0.876 – 0.905 mm
(0.0345 – 0.0356 in.)
0.99 mm (0.039 in.)
0.906 – 0.935 mm
(0.0357 – 0.0368 in.)
1.02 mm (0.040 in.)
0.936 – 0.965 mm
(0.0369 – 0.0379 in.)
1.05 mm (0.041 in.)
0.966 – 0.995 mm
(0.0380 – 0.0391 in.)
1.08 mm (0.043 in.)
0.996 – 1.025 mm
(0.0392 – 0.0403 in.)
1.11 mm (0.044 in.)
1.026 – 1.055 mm
(0.0404 – 0.0415 in.)
1.14 mm (0.045 in.)
1.056 – 1.085 mm
(0.0416 – 0.0427 in.)
1.17 mm (0.046 in.)
1.086 – 1.115 mm
(0.0428 – 0.0438 in.)
1.20 mm (0.047 in.)
1.116 – 1.145 mm
(0.0439 – 0.0450 in.)
1.23 mm (0.048 in.)
1.146 – 1.175 mm
(0.0451 – 0.0462 in.)
1.26 mm (0.050 in.)
1.176 – 1.205 mm
(0.0463 – 0.0474 in.)
1.29 mm (0.051 in.)
1.206 – 1.235 mm
(0.0475 – 0.0486 in.)
1.32 mm (0.052 in.)
1.236 – 1.265 mm
(0.0487 – 0.0498 in.)
1.35 mm (0.053 in.)
1.266 – 1.295 mm
(0.0499 – 0.0509 in.)
1.38 mm (0.054 in.)
1.296 – 1.325 mm
(0.0510 – 0.0521 in.)
1.41 mm (0.056 in.)
