6C-38 Power Assisted Steering System:

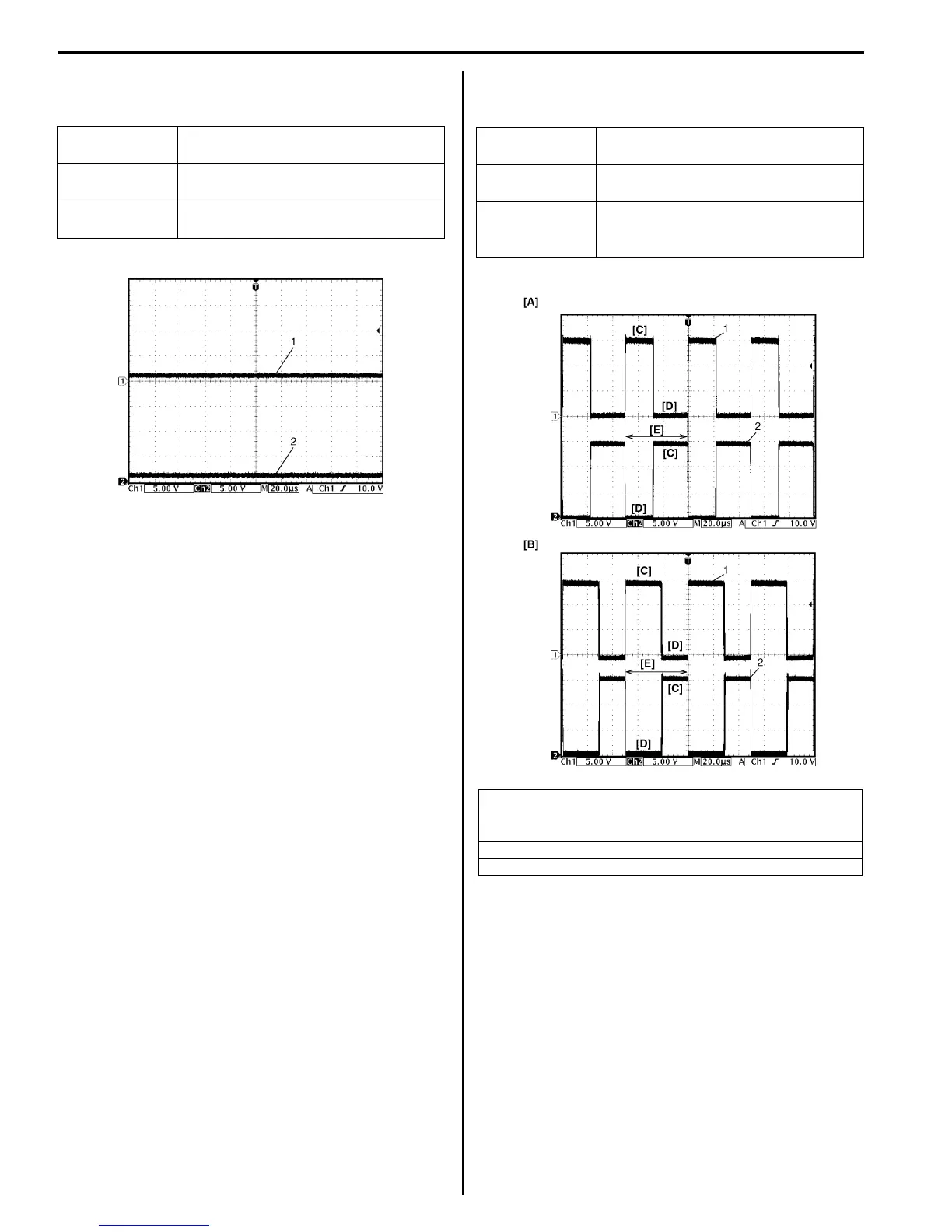

Reference waveform No.1
Motor output signal 1(1), Motor output signal 2(2), with
engine idling
Reference waveform No.2
Motor output signal 1(1), Motor output signal 2(2), with
engine idling
Measurement
terminal
CH1: “E51-1” to vehicle body ground
CH2: “E51-2” to vehicle body ground
Oscilloscope
setting
CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 20 µs/DIV
Measurement
condition
• Engine is idling and steering wheel
at straight position
I6RS0B630017-01
Measurement
terminal
CH1: “E51-1” to vehicle body ground
CH2: “E51-2” to vehicle body ground
Oscilloscope
setting
CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 20 µs/DIV
Measurement
condition
• Engine is idling and steering wheel
is turned to left or right at turning
speed of 90° /sec
[A]: Steering wheel is turned left at turning speed of 90° /sec
[B]: Steering wheel is turned right at turning speed of 90° /sec
[C]: 12 V ON
[D]: GND ON
[E]: 1 duty cycle
I6RS0B630018-01
