7A-8 Heater and Ventilation:

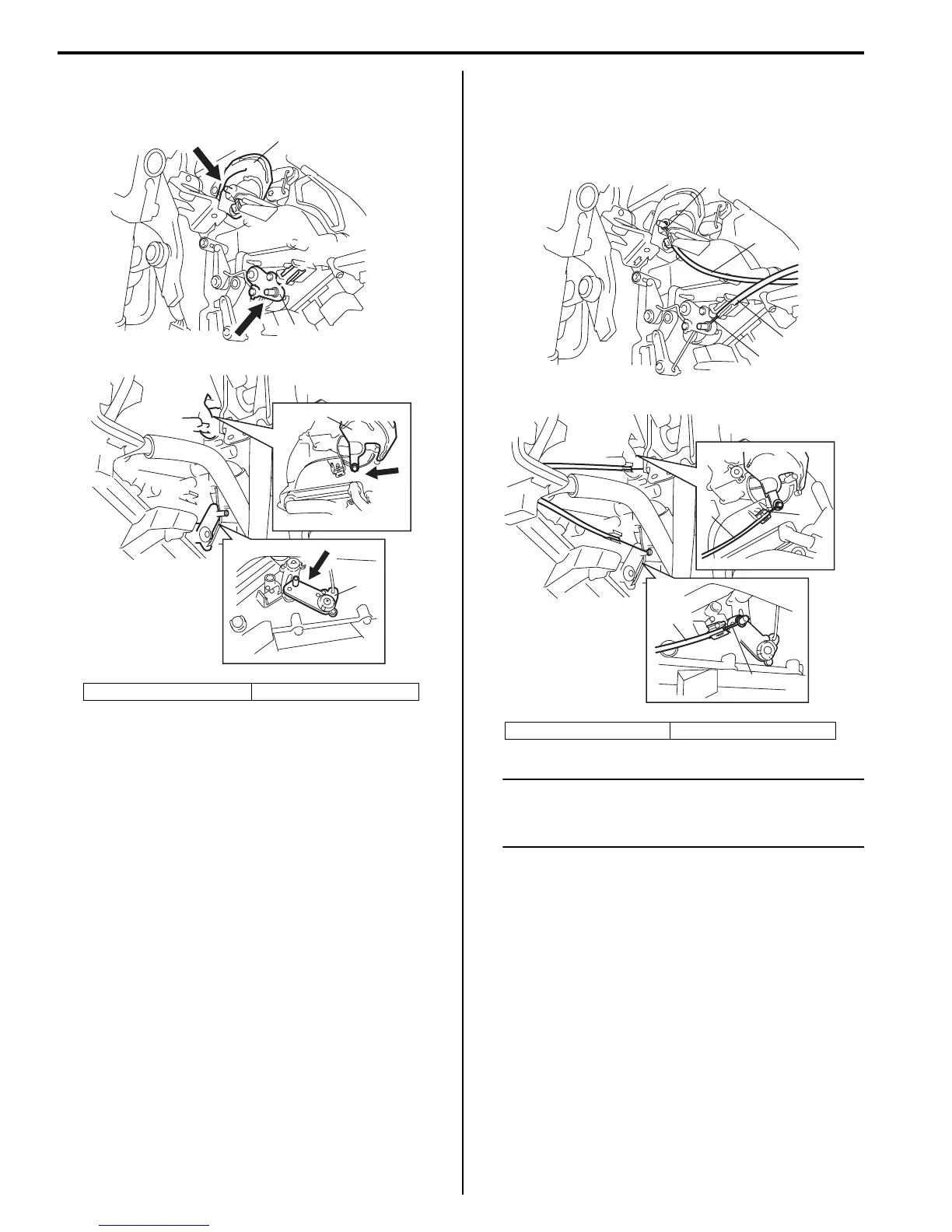

b. Move temperature control lever (1) and air flow
control plate (2) fully to the arrow direction.
c. Fix temperature control inner cable (1) to pin of
temperature control lever and air flow control inner
cable (2) to pin of air flow control plate, and then
fix each outer cable (3) to each cable lock clamp.
NOTE
After installing control cables, make sure that
control lever and plate move smoothly and
stop at proper position.
• Enable air bag system referring to “Enabling Air Bag
System in Section 8B”.
• Make sure that air flow outlet changes correctly as air
flow selector is changed.
[A]: LH steering vehicle [B]: RH steering vehicle
1
2
[A]
[B]
1
2
I4RS0B710014-01
[A]: LH steering vehicle [B]: RH steering vehicle
1
2
[B]
[A]
3
3
1
3
2
3
I4RS0B710015-01
