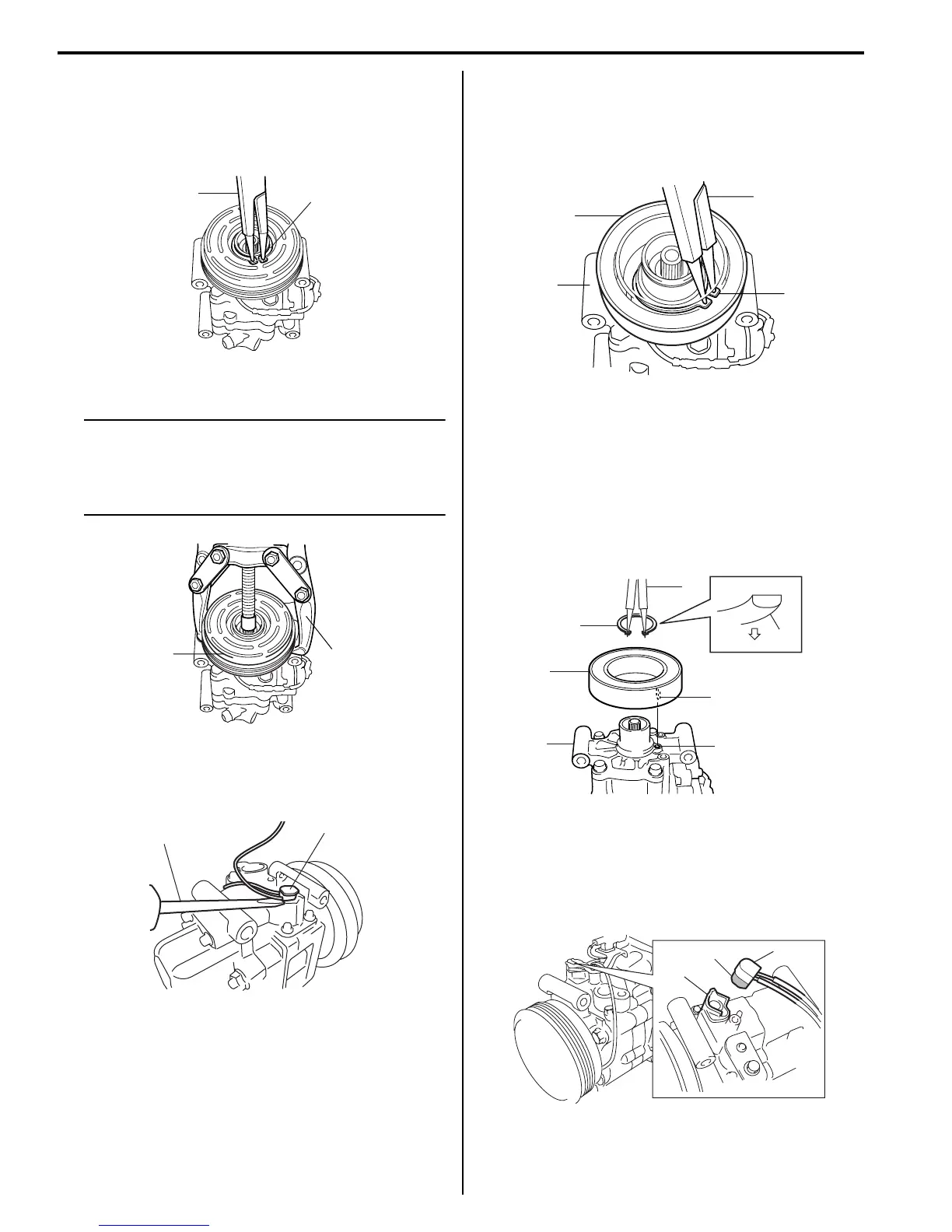

7B-30 Air Conditioning System: Manual Type
4) Remove shims from shaft.
5) Remove circlip (1) using special tool.
Special tool
(B): 09900–06107
6) Remove magnet clutch pulley (2).
NOTE
If it is difficult to remove magnet clutch
pulley by hand, use puller (1).
Do not damage magnet clutch pulley when
using puller.
7) Remove magnet clutch lead wire clamp.
8) Remove thermal switch (1) from compressor using
flat head (2).
9) Remove circlip (1) by using special tool.
Special tool
(B): 09900–06107
10) Remove magnet clutch coil (2) from compressor (3).
Installation
1) Install magnet clutch coil (2) fitting protrusion (4) of
magnet clutch coil onto hole (5) of compressor (3).
2) Install circlip (1) directing chamfer side (6)
downward.
Special tool
(B): 09900–06107
3) Apply silicon sealant to contact face (2) of thermal
switch (1) and then, install thermal switch to
compressor (3).
“A”: Silicon sealant 99000–34220 (SUZUKI
SILICON SEALANT KE-347W (100g))
(B)
1
I4RS0A720040-01
1
2
I4RS0A720041-01
2
1
I5RS0C721011-01
1
(B)
2
3
I4RS0A720042-01
1
(B)
2
3
4
5
6
I4RS0A720043-01
3
2, “A”
1
I5RS0C721012-02
