Air Conditioning System: Automatic Type 7B-35

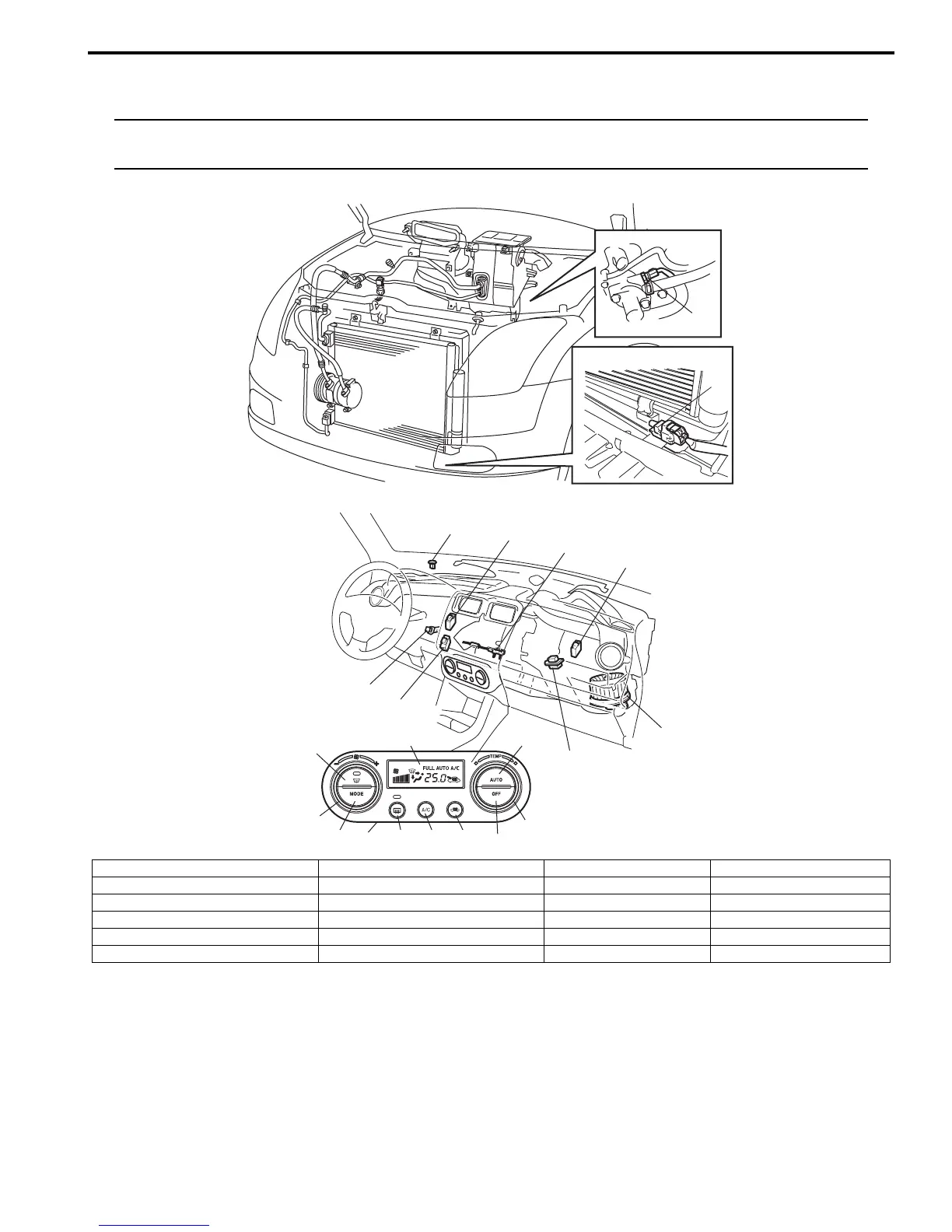

Electronic Control System Location
NOTE
The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed
at the opposite side.
1
2
3 *
4 *
5
6 *
7 *
8 *
9 *
10 *
21
11
12 13
14
1516171819
20
I5RS0C722001-01
1. ECT sensor 7. Blower motor 13. AUTO switch 19. MODE (air flow) selector
2. Outside air temperature sensor 8. Blower motor controller 14. Temperature selector 20. Blower speed selector
3. Sunload sensor 9. Temperature control actuator 15. OFF switch 21. HVAC control module
4. Air flow control actuator 10. Inside air temperature sensor 16. Air intake selector
5. Evaporator temperature sensor 11. Defroster switch 17. A/C switch
6. Air intake actuator 12. Display 18. Rear defogger switch
