SVAN 948 USER MANUAL
4 - 67

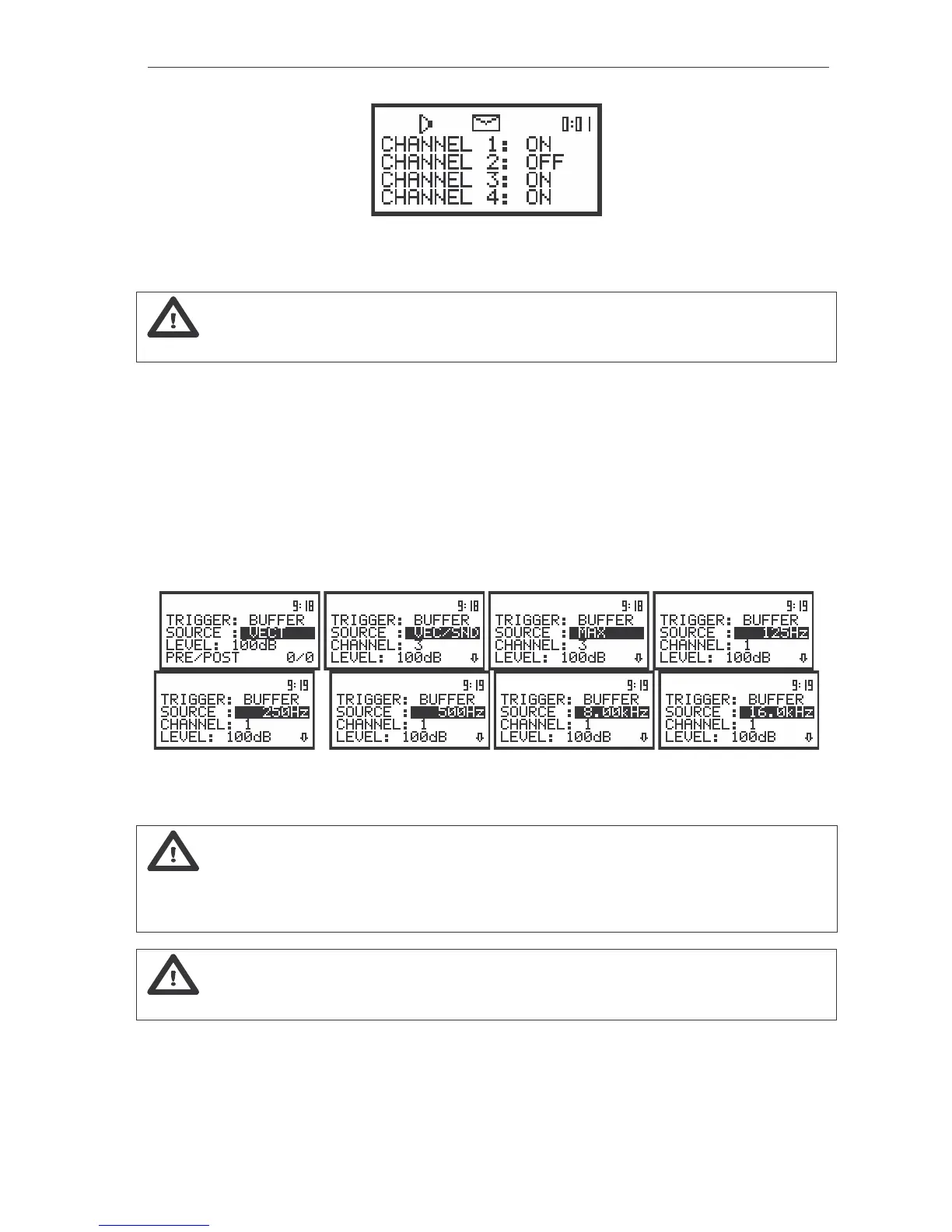

The view of the displays with not accessible parameters of the PROFILES SETUP lists (path: MENU / INPUT /
1/3 OCTAVE SETUP)
Notice: All other settings of the instrument are common for 1/3 OCTAVE analyser and the
SLM.
Selection of the result which triggers registration in BUFFER mode in 1/3 OCTAVE
analysis of acoustic signal
In level meter mode only the result coming from the MAX detector of the one channel is used for
triggering purposes. In the case of vibration measurements it is VECT, VEC/SND or MAX value. The
SOURCE position is not accessible in that mode. However, in 1/1 OCTAVE analysis it is possible to
access mentioned above position and to make a selection. The results coming from the output of
1/1 OCTAVE filters, starting from 125 Hz (125 Hz, 250 Hz, 500 Hz, 1.00 kHz, 2.00 kHz, 4.00 kHz,
8.00 kHz and 16.0 kHz), are available as well as MAX result from the selected channel.
…
The view of the displays in TRIGGER SETUP window; the selection of the signal used for triggering
purposes in BUFFER mode
Notice: It is not possible to change the values of the parameters during the execution of the
measurements. It is possible to open different lists and sub-lists but the positions in these lists are not
displayed inversely and so - not accessible. The “Loudspeaker” icon indicates that the instrument is in
the measurement process. In order to change the range the measurement must be finished!
Notice: All other settings of the instrument are common for 1/1 OCTAVE analyser and the
SLM.
