v CAL. F.: (position available only for vibration measurements); accessible if VUSR1, VUSR2, or
VUSR3 was selected in the FILTER position; if the HP filter was selected this position is not
displayed; available values (from -60.0dB to 60.0dB with 0.1dB step by pressing the <
>, <
>
push-buttons the <
>, <
> or with 1 dB step by pressing <SHIFT> with <
>, <
> push-
buttons).

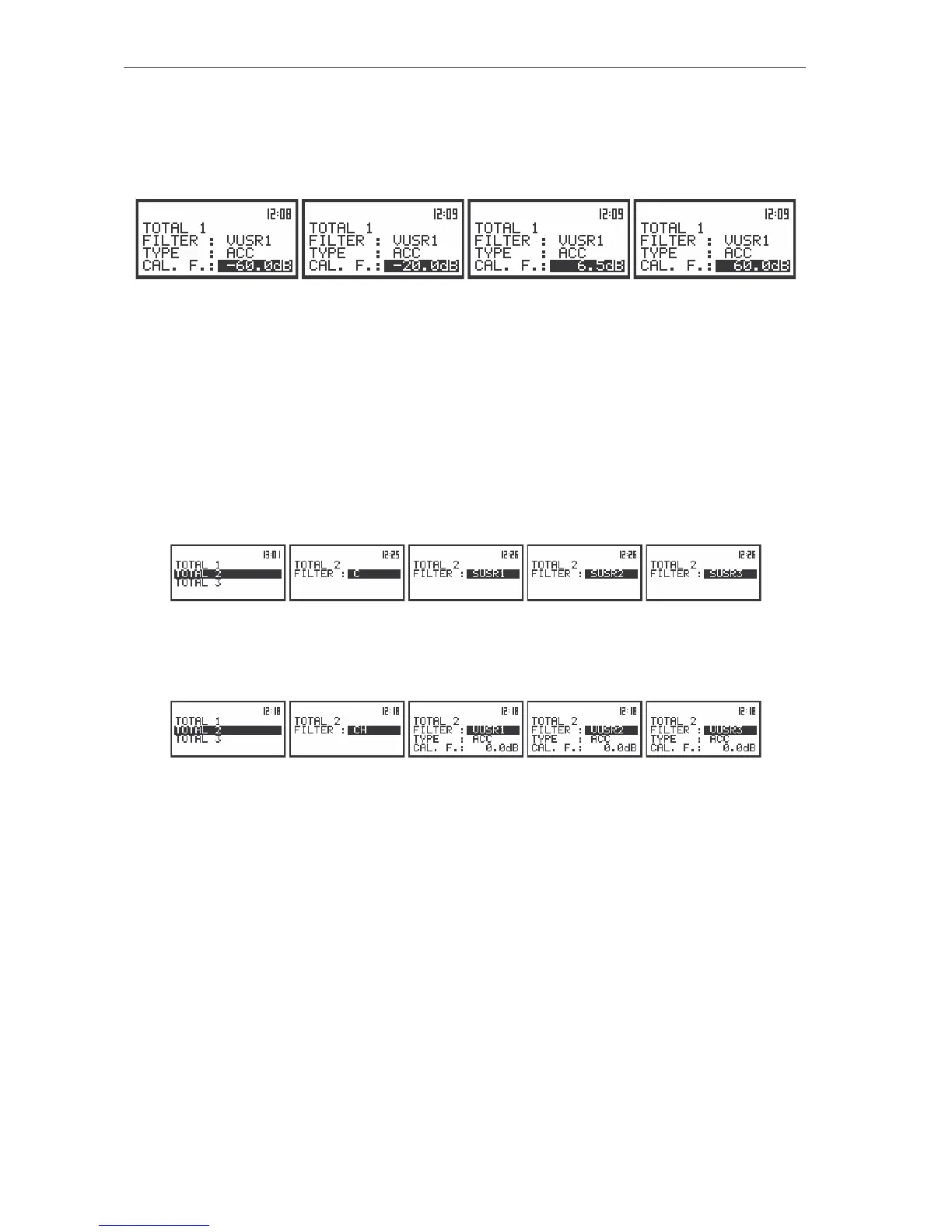

The displays with the TOTAL 1 list opened in the case of vibration measurements; calibration factor setting
Selection of the Weighted Filters for the 2
nd
profile - TOTAL 2
The TOTAL 2 sub-list enables one to select the weighted filter to be used for the calculation of the
TOTAL value in the second profile (FILTER), its type (TYPE) and the calibration coefficient (CAL. F.). The
TOTAL 2 sub-list is closed and the instrument returns to the TOTAL VALUES list after pressing the
<ESC> push-button, which ignores any changes in the positions of the sub-list or the <ENTER> push-
button, which confirms the changes.
v FILTER: (position); available values of the weighted filters:
o in the case of sound measurements: C, SUSR1, SUSR2, SUSR3 or any other sent to the unit
by means of the interface,
The view of the displays with the TOTAL 2 list opened in the case of sound measurements
o in the case of vibration measurements: CH, VUSR1, VUSR2, VUSR3 or any other sent to the
unit by means of the interface.
The view of the displays with the TOTAL 2 list opened in the case of vibration measurements
v TYPE: (position available only for vibration measurements); available values if VUSR1, VUSR2 or
VUSR3 was selected in the previous position: ACC, VEL and DIL; if the CH filter was selected (the
filter which was set in the 2
nd
channel) this position is not displayed.
v CAL. F.: (position available only for vibration measurements); accessible if VUSR1, VUSR2 or
VUSR3 was selected in the FILTER position; if the CH filter was selected (the filter which was set
in the 2
nd
channel) this position is not displayed; available values (from -60.0dB to 60.0dB with
0.1dB step by pressing the <
>, <
> push-buttons or with 1 dB step by pressing <SHIFT> with
<
>, <
> push-buttons).
Selection of the Weighted Filters for the 3
rd
profile - TOTAL 3
The TOTAL 3 sub-list enables one to select the weighted filter to be used for the calculation of the
TOTAL value in the third profile (FILTER), its type (TYPE) and the calibration coefficient (CAL. F.). The
TOTAL 3 sub-list is closed and the instrument returns to the TOTAL VALUES list after pressing the
<ESC> push-button, which ignores any changes in the positions of the sub-list or the <ENTER> push-
button, which confirms the changes.
